Scanstrut Tapered Mast f/Garmin/Raymarine/Navico Domes & Starlink Product Description

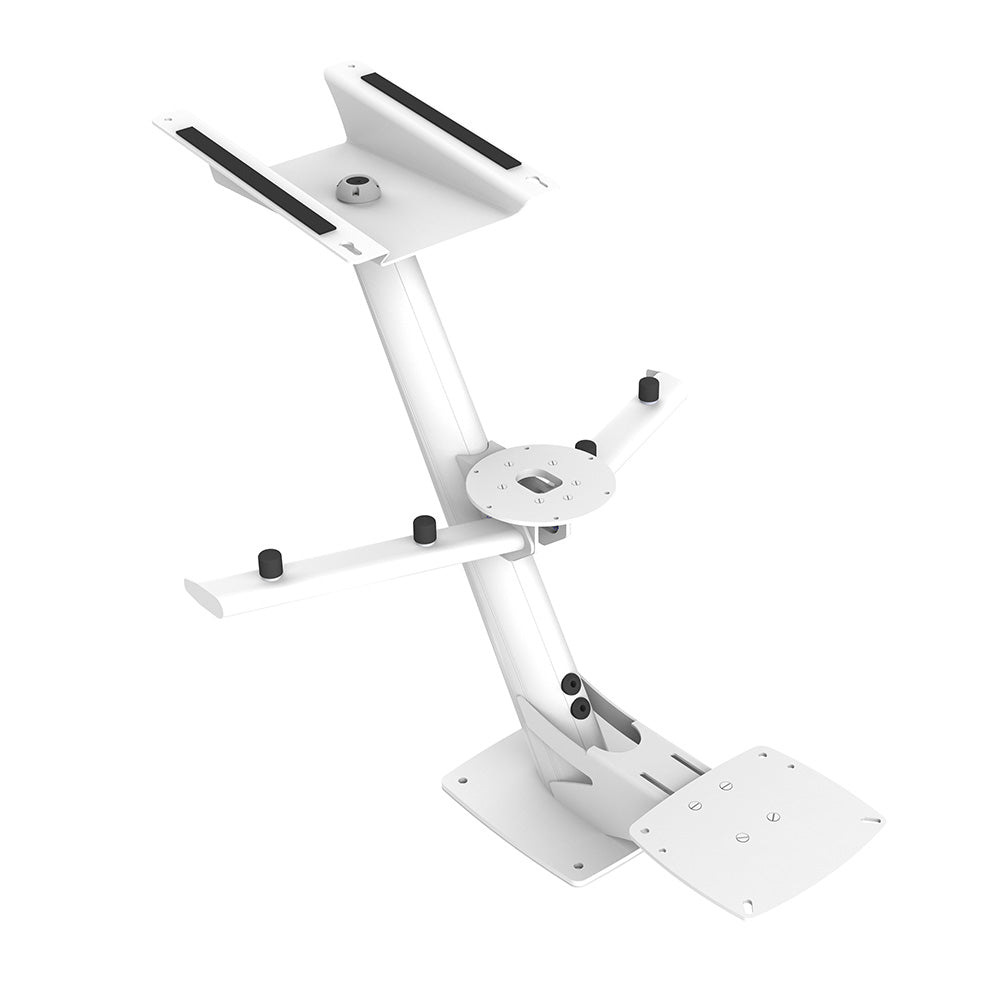

Scanstrut Tapered Mast for Garmin/Raymarine/Navico Domes & Starlink
Professional-grade marine aluminum tapered mast mount engineered for multi-technology integration - seamlessly accommodate radar domes, Starlink, GPS antennas, cameras, and lighting systems on one robust platform.
The Scanstrut PTM-R1-SL represents the evolution of marine mast mounting technology, combining the proven aesthetics of Scanstrut's classic tapered design with modern installation conveniences and multi-device compatibility. This premium mast mount enables professional integration of radar systems, Starlink satellite internet, navigation antennas, and monitoring equipment on a single, streamlined platform.
Enhanced Installation Design
This redesigned tapered mast features revolutionary access panels positioned under each mounting wing, providing unprecedented ease of cable routing and connection access. The innovative design ensures NMEA connectors fit completely within the mast structure and wings, eliminating the tedious requirement to remove connectors during installation - a significant time-saver for marine technicians.
Multi-Technology Integration Platform
Engineered as the ultimate mounting solution for modern vessels, the PTM-R1-SL accommodates multiple technologies simultaneously. Mount radar domes, Starlink flat high-performance units, thermal cameras, GPS/VHF antennas, navigation lights, and satcom equipment together on one professionally integrated platform.
Marine-Grade Construction
Constructed from premium marine-grade aluminum with Scanstrut's exclusive 4-step marine paint system for superior corrosion resistance and long-lasting appearance. The robust construction ensures reliable performance in harsh saltwater environments while maintaining the sleek, professional aesthetics expected on premium vessels.
Key Features & Benefits
- Universal Radar Compatibility: Pre-drilled for Garmin, Raymarine, and Navico radar domes
- Starlink Integration: Specifically designed to accommodate Starlink flat high-performance units
- Access Panel Design: Hinged panels under wings for easy cable routing and maintenance
- NMEA Connector Accommodation: Internal space eliminates connector removal during installation
- Multi-Device Platform: Simultaneous mounting of radar, antennas, cameras, and lighting
- Marine-Grade Aluminum: Premium construction with 4-step marine paint finish
- Watertight Installation: Professional sealing for harsh marine environments
- Direct Bolt Mounting: Radar domes mount directly using manufacturer hardware
- Hidden Cable Routing: Hollow tapered design conceals all wiring
- Professional Aesthetics: Classic tapered profile enhances vessel appearance
Technical Specifications
Radar Dome Compatibility
Pre-drilled mounting patterns accommodate major radar manufacturers including:
- Garmin: GMR series radar domes and pedestals
- Raymarine: Quantum series and traditional radar domes
- Navico/Simrad/Lowrance: HALO and 3G/4G radar systems
- Furuno: Compatible with select dome radar models
Starlink Integration
Specifically engineered to accommodate Starlink's flat high-performance maritime unit, providing stable mounting platform for high-speed satellite internet connectivity. The mast design allows optimal Starlink positioning while maintaining space for essential navigation equipment.
Installation Advantages
- Access Panels: Hinged wing panels provide easy cable access without full disassembly
- NMEA Compatibility: Connectors fit within mast structure, no cutting required
- Direct Mounting: Radar domes bolt directly using manufacturer hardware
- Hidden Wiring: All cables route internally through hollow mast design
- Professional Integration: Single mounting point for multiple systems
Vessel Applications
- Sport fishing boats requiring radar and Starlink connectivity
- Express cruisers with integrated electronics packages
- Charter vessels needing professional equipment mounting
- Commercial boats requiring multiple communication systems
- Luxury yachts demanding clean, professional installations
- Offshore vessels with comprehensive navigation requirements
What's Included
- PTM-R1-SL Tapered Mast Assembly
- Access Panels with Hinges
- Mounting Hardware Kit
- Gasket and Sealing Components
- Installation Instructions
- Cable Management Accessories
Professional Installation Benefits
The PTM-R1-SL's design facilitates professional installation by marine electronics technicians. Access panels eliminate the common challenge of routing large NMEA connectors through tight spaces, while the pre-drilled mounting patterns ensure precise radar alignment without custom fabrication.
Frequently Asked Questions
What radar models are compatible with the PTM-R1-SL?
The PTM-R1-SL is pre-drilled for Garmin GMR series, Raymarine Quantum series, and Navico (Simrad/Lowrance) HALO and 3G/4G radar domes. The mast accommodates most 18-24 inch radar domes using their standard mounting bolt patterns.
How does the access panel system work?
Access panels are located under each mounting wing and feature hinged design for easy opening. This provides direct access to cable connections and routing without removing mounted equipment, significantly simplifying installation and maintenance procedures.
Can I mount Starlink and radar simultaneously on this mast?
Yes, the PTM-R1-SL is specifically designed for multi-technology integration. The mast provides separate mounting areas for radar domes and Starlink units, along with additional mounting points for antennas, lights, and cameras on the same platform.
What makes Scanstrut's marine paint system superior?
Scanstrut's 4-step marine paint system includes specialized primers, base coats, and protective topcoats engineered for saltwater environments. This process provides superior corrosion resistance, UV protection, and long-lasting appearance compared to standard marine finishes.
Is professional installation required?
While the improved design simplifies installation, professional installation is recommended to ensure proper mounting, waterproofing, and cable routing. The access panel system makes professional installation faster and more reliable than previous mast designs.
Tapered Mast for Garmin/Raymarine/Navico Domes & Starlink
This remake of Scanstrut's classic tapered mast mount has been designed to provide optimal ease of installation while creating a robust and aesthetically pleasing mount adaptable to multiple different technologies on one mounting platform.
Now made easier to install, the PTM-R1-SL features access panels under each "wing" to allow for easy access and quick and simple cable routing. The design also focuses on ensuring that NMEA connectors fit within the mast and the wings, eliminating the need to remove the connectors for installation.
This mast is suitable for mounting radar, lights, Satcom, Starlink, GPS/VHF antennas, and cameras seamlessly together.
Features:
- Mount Radar, thermal camera, aerials, and Starlink high-performance in one installation
- Constructed from marine-grade aluminum
- Paint finishes comply with Scanstrut's unique 4-step marine paint system
- Access panels are on the underside of the wings for ease of wiring
- Watertight installation
- Pre-drilled mounting holes allow the radar to fasten straight to the mast with its own mounting bolts
Save $1220 when you buy the Scanstrut Tapered Mast f/Garmin/Raymarine/Navico Domes & Starlink for only $1769 from NVN Marine! Same day free shipping before 3pm.
