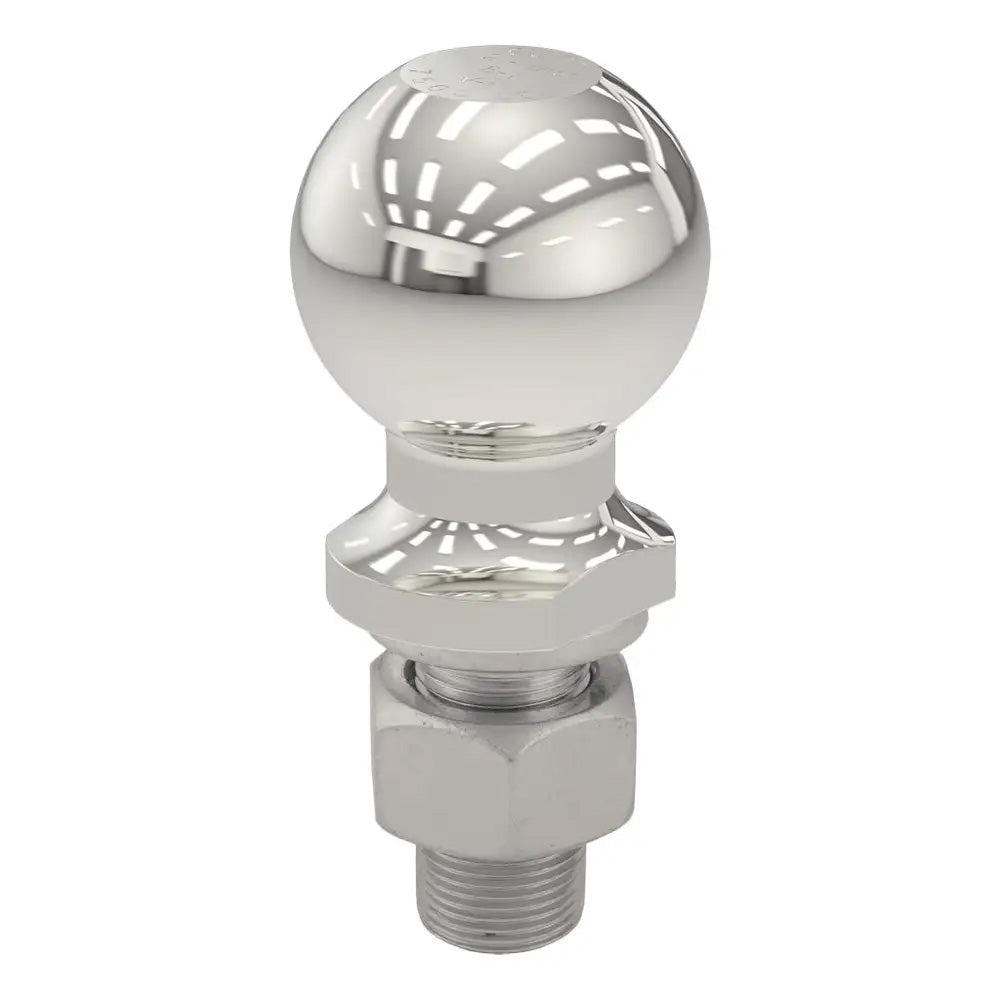

CURT 2-5/16" Trailer Ball - 1" x 2-1/8" Shank - 7,500 lbs - Stainless Steel
CURT 2-5/16" Trailer Ball - 1" x 2-1/8" Shank - 7,500 lbs - Stainless Steel — Product description
2-5/16" Trailer Ball - 1" x 2-1/8" Shank - 7,500 lbs - Stainless Steel
The CURT 2-5/16" trailer ball does not mess around. Simply put, it is a solid piece of towing equipment that makes all others look like they're just spinning their wheels. CURT 2-5/16" trailer balls are made with expert engineering to be packed with strength and durable enough to withstand the harsh wear of heavy-duty towing. Anything a class 5 trailer hitch and class 5 ball mount can handle, CURT has a 2-5/16" trailer ball to match. These tow balls are perfect for towing all types of heavy receiver-style trailers, including dump trailers, toy haulers, farm trailers, chopper boxes, dual-axle utility trailers, deluxe RVs, small yachts, and more. (NOTE: Never exceed the lowest weight capacity of any towing component, i.e., the vehicle, hitch, trailer, etc.).
This 2-5/16" trailer ball features a ball capacity of 7,500 lbs. It features a 1" shank diameter, a 2-1/8" shank length, a 0" rise, and a stainless steel finish to protect against the elements. To give users the power to tow with confidence, CURT 2-5/16" trailer hitch balls are thoroughly tested for safety and meet U.S. VESC specifications.
Features:
- Fits 2-5/16" couplers and accepts up to 7,500 lbs. GTW
- Stainless steel construction for excellent rust resistance
- Zinc-plated hex nut and helical lock washer for secure mounting
- Features fine threads for superior holding strength
- Tested for safety to meet U.S. VESC V-5 specifications
Specifications:
- Ball Capacity: 7,500 lbs
- Ball Diameter: 2-5/16 in.
- Color: Stainless
- Finish: Polished Stainless
- Hub Warehouse: D25
- Material: Forged Steel
- Part Type: 2 5/16 in. Trailer Ball
- Shank Diameter: 1 in.
- Shank Length: 2 1/8 in.
- Shank Rise: 0 in.
- Torque: 250 ft. lb.
- Warranty: Limited lifetime warranty (one-year finish, one-year parts)
*The mounting platform must be at least 3/8" thick, and the hole size must not be more than 1/16" larger in diameter than the threaded shank
SKU: NVN-101443
MPN: 40084
UPC:
Technical specifications
| Brand | CURT |
| Model | CURT 2-5/16" Trailer Ball - 1" x 2-1/8" Shank - 7,500 lbs - Stainless Steel |
| SKU / MFR# | 101443 |
