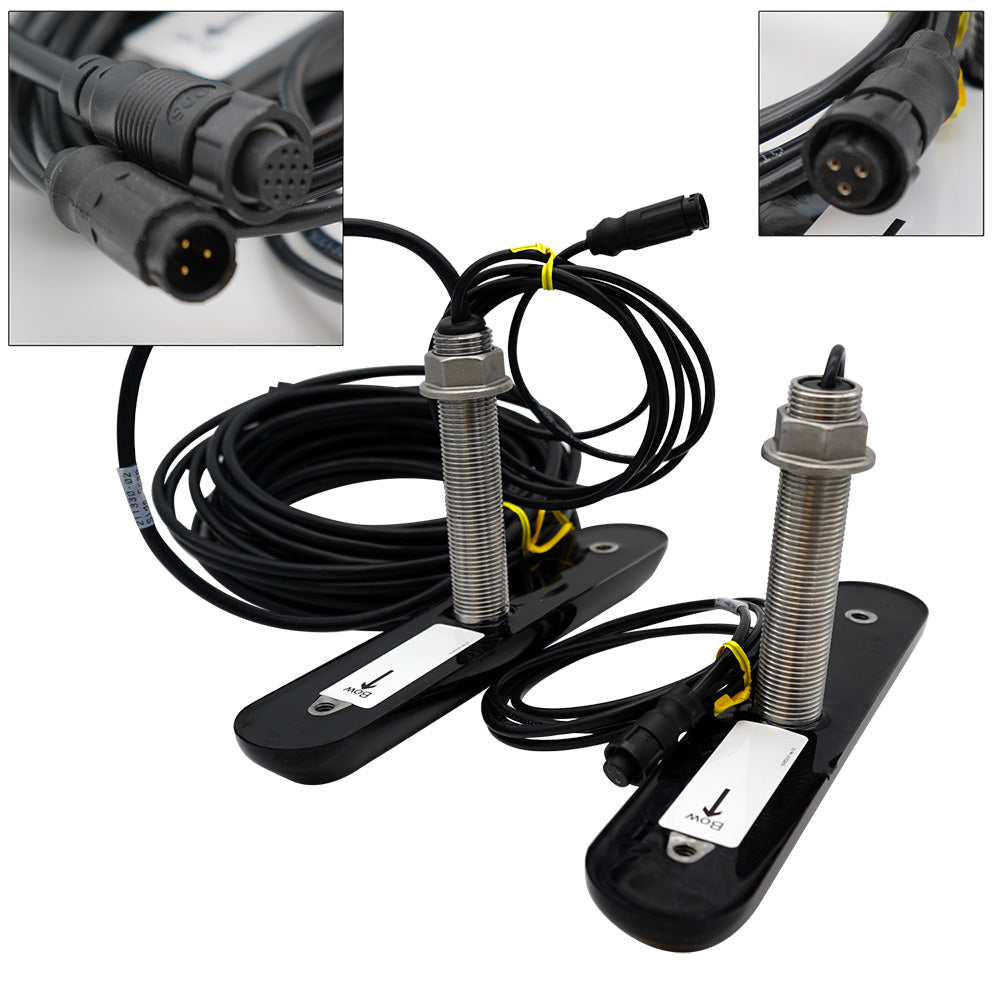

Furuno 225T-PR904 CHIRP Side Scan Paired Thru-Hull Transducers - Professional Marine Sonar System
Transform your fishing and navigation experience with the Furuno 225T-PR904 CHIRP Side Scan Paired Thru-Hull Transducers, engineered for serious anglers and professional mariners who demand crystal-clear underwater imaging up to 750 feet on each side of their vessel. This premium transducer system integrates seamlessly with NavNet TZtouch3 and TZtouchXL multifunction displays, delivering unmatched side-scanning sonar performance for structure identification, fish location, and bottom composition analysis.
Professional-Grade Side Scan Technology
- Dual 150-Watt Power Output: Each transducer delivers 150 watts of power for exceptional range and target separation
- Advanced CHIRP Technology: 220-240kHz frequency range provides superior resolution and target definition
- Extended Coverage: Scan up to 750 feet on both port and starboard sides simultaneously
- Integrated Temperature Sensor: Real-time water temperature monitoring for enhanced fishing success
- Marine-Grade Construction: Stainless steel housing ensures corrosion resistance and long-term reliability
Technical Specifications
System Compatibility
NavNet TZtouch3 Series:
- TZT12F
- TZT16F
- TZT19F
NavNet TZtouchXL Series:
- TZT10X
- TZT13X
- TZT16X
Installation Considerations
- Hull Requirements: Designed for vessels with deadrise angles greater than 5 degrees
- Professional Installation Recommended: Thru-hull installation requires proper sealing and through-hull fitting expertise
- Cable Management: 40-foot cable length accommodates most installations from transducer to helm station
- Fairing Block Available: Optional AIR-FRB-904 fairing block for optimized water flow
- Extension Options: 10-meter extension cables available for longer runs
Marine Applications
- Sport Fishing: Locate baitfish schools and predator fish holding areas
- Structure Fishing: Identify underwater structures, reefs, and drop-offs
- Bottom Composition: Analyze sediment types for optimal anchoring locations
- Search and Recovery: Professional underwater object detection and mapping
- Commercial Fishing: Efficient fish location and habitat assessment
Why Choose Furuno 225T-PR904?
- Proven Reliability: Furuno's 75+ years of marine electronics expertise
- CHIRP Technology: Superior target separation and bottom discrimination
- Easy Integration: Plug-and-play compatibility with existing NavNet systems
- Professional Performance: Commercial-grade components for demanding marine environments
- Temperature Monitoring: Critical data for fishing success and engine cooling systems
- Stainless Steel Construction: Exceptional corrosion resistance in saltwater environments
Maintenance & Care
- Regular inspection of thru-hull fittings for proper sealing
- Periodic cleaning of transducer faces to maintain optimal performance
- Annual inspection of cable connections and 12-pin connectors
- Professional antifouling paint application during haul-outs
Frequently Asked Questions
What is the maximum scanning range of the 225T-PR904?
The Furuno 225T-PR904 provides side-scanning coverage up to 750 feet on each side of the vessel, giving you a total scanning width of 1,500 feet for comprehensive underwater imaging.
Is professional installation required for thru-hull transducers?
Yes, professional installation is strongly recommended for thru-hull transducers. This ensures proper sealing, correct placement for optimal performance, and maintains your vessel's hull integrity and warranty.
Can I use this transducer with older Furuno displays?
The 225T-PR904 is specifically designed for NavNet TZtouch3 (TZT12F, TZT16F, TZT19F) and TZtouchXL (TZT10X, TZT13X, TZT16X) multifunction displays. It is not compatible with older NavNet systems.
What hull deadrise angle is required for proper installation?
The 225T-PR904 requires vessels with a deadrise angle greater than 5 degrees for optimal performance. This ensures proper transducer orientation and beam pattern for effective side-scanning.
Does the system include temperature sensing capability?
Yes, the 225T-PR904 includes integrated temperature sensors that provide real-time water temperature data to your compatible NavNet display, essential for fishing success and engine monitoring.
Model Number: 225T-PR904
Manufacturer: Furuno
Category: Marine Navigation & Instruments | Transducers
