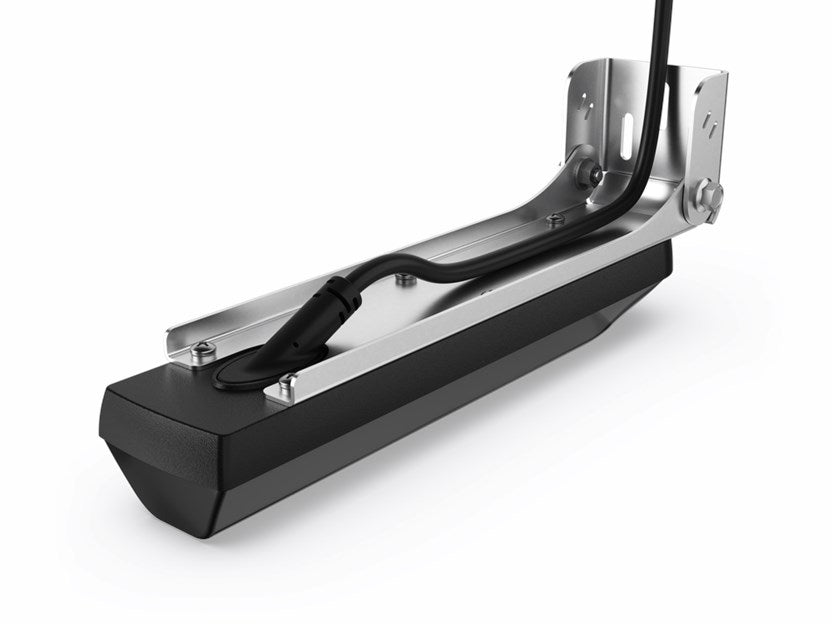

Lowrance Active Imaging HD™ 3-in-1 FishReveal High/Wide Transducer

Imagine gliding across the water, your eyes locked on a screen that reveals every hidden detail beneath the surface—fish hovering near submerged timber, schools darting through weed beds, or rocky drop-offs teeming with potential. That's the edge you gain with the Lowrance Active Imaging HD 3-in-1 FishReveal High/Wide Transducer. This powerhouse combines cutting-edge sonar technologies into one sleek transom-mount unit, transforming how you spot and target fish with unprecedented sharpness and detail.

Unlock Crystal-Clear Underwater Visions

At its core, this transducer delivers high-definition imaging that sets it apart from standard sonar setups. High-frequency SideScan and DownScan, pushing up to 1.2 MHz, paint photo-like pictures of the underwater world. Spot the subtle differences between a weed clump and a fish-holding brush pile, or navigate tricky shallows without scraping bottom. Anglers chasing bass in shallow coves or walleye along steep ledges rave about how it uncovers structure that's invisible to the naked eye.

Superior Target Separation with CHIRP and FishReveal

Lowrance CHIRP sonar sweeps across 83/200 kHz frequencies for medium and wide coverage, pulling in individual fish arches with remarkable precision—even in murky water. Add FishReveal technology, and fish glow against structure in both DownScan and the innovative SideScan views. This isn't just spotting blobs; it's identifying species-specific behavior, like crappie suspending over mud flats or stripers ambushing baitfish. The result? Fewer empty hooksets and more keepers in the livewell.

Key Technical Edges

• High/Wide CHIRP for broad-area scanning with exceptional clarity
• 455/800 kHz and 455/1.2 MHz options for ultra-fine detail in tight spots
• Smart transducer housing that amplifies signal strength and reduces noise
• Transom-mount design for straightforward installation on most boats

Real-World Fishing Advantages

For tournament pros or weekend warriors, this transducer shines in diverse scenarios. Use SideScan to grid-search vast flats for bait balls during summer striper runs, or DownScan to dissect vertical structure like bridge pilings for jigging spoonies. It excels in shallow bays where big motors fear to tread, letting you hug shorelines for overlooked panfish beds. Pair it with compatible Lowrance displays, and you'll navigate complex bottom contours with confidence, adjusting trolling speeds on the fly based on live feedback.

Seamless Integration for Peak Performance

Engineered for direct hookup with HDS PRO units or via an S3100 module, setup is plug-and-play for most modern consoles. Fine-tune sensitivity settings to match water conditions—dial back in heavy vegetation or crank it up for open water. Maintenance is minimal; just keep the face clean and secure for season after season of reliable service.

Fishing Tips to Maximize Your Transducer

1. Run at slower speeds (4-6 mph) for SideScan to capture the sharpest side-to-side images.
2. Combine FishReveal with split-screen views to correlate fish positions with bottom hardness.
3. In shallow water under 10 feet, switch to 1.2 MHz for jaw-dropping resolution of bottom-hugging species.
4. Mark waypoints on promising structure during scouting runs to revisit during prime feeding windows.
5. Experiment with gain adjustments at dawn or dusk when thermoclines shift fish patterns.

Elevate your angling game with technology that doesn't just find fish—it shows you exactly where and how to catch them. This transducer isn't gear; it's your unfair advantage on the water.
