Lowrance Active Imaging HD™ 3-in-1 FishReveal Transducer
Shipping (3PM)
Within 30 days
Lowrance Active Imaging HD™ 3-in-1 FishReveal Transducer Product Description
Unlock Crystal-Clear Fishfinding with Advanced HD Imaging
Imagine gliding across the water, pinpointing fish and structure with unprecedented detail—no more guessing games or fuzzy returns. The Active Imaging HD 3-in-1 transducer transforms your Lowrance unit into a powerhouse for revealing every arch, rockpile, and weed edge. Blending high-frequency SideScan and DownScan up to 1.2 MHz with traditional CHIRP sonar, it delivers photo-like clarity that separates targets like never before. Anglers chasing bass in shallow coves or walleye hugging drop-offs swear by this setup for its ability to expose hidden hotspots others miss.
What sets it apart? A redesigned transducer housing sharpens signal focus, cutting through noise for sharper images even in murky water. Whether you're tournament-bound or just chasing dinner, this transom-mount marvel covers vast areas fast, spotting shallows your boat can't reach and illuminating how fish relate to cover.
Key Technologies That Redefine Underwater Visibility
- High-Definition SideScan & DownScan Imaging: Up to 1.2 MHz frequencies paint razor-sharp pictures of structure out to the sides and straight down, revealing submerged timber, boulders, and bottom contours with stunning precision.
- Medium/High CHIRP Sonar (83/200 kHz): Traditional forward-facing clarity meets exceptional target separation, highlighting individual fish amid schools or bait balls.
- FishReveal Innovation: Overlay DownScan detail on CHIRP for instant fish ID, now extended to SideScan views (with compatible modules), making busy bottoms pop with glowing fish icons.
- Smart Signal Boost: Optimized design enhances transducer performance, minimizing interference and maximizing range in real-world conditions.
Real-World Advantages for Serious Anglers
In practice, this means dialing in on rockpiles where crappie stage or threading weedbeds for pike without spooking them. High-frequency imaging excels in shallows under 20 feet, where lower-end units blur the details. Pair it with your setup, and you'll scout more water, react faster, and boat more fish—session after session.
Seamless Integration for Your Lowrance Ecosystem
Plug-and-play ready for HDS PRO series right out of the box, or team it with an S3100 sonar module for full FishReveal SideScan on HDS LIVE, HDS Carbon, and Elite FS displays. Its transom-mount design suits most hulls, from bass boats to bay crafts, ensuring stable, drag-free performance at trolling speeds.
Pro Tips for Peak Performance
- Mount it 1-2 inches below hull bottom for optimal water flow; deadrise angle adjustments prevent air bubbles.
- Run higher frequencies in clear, shallow water for max detail; drop to CHIRP for deeper scans.
- Calibrate sensitivity seasonally—spring murk might need a tweak from summer clarity.
- Combine with GPS mapping to bookmark hot structure for repeat visits.
Frequently Asked Questions
What makes the Active Imaging HD 3-in-1 transducer different from standard models?
It combines HD SideScan/DownScan up to 1.2 MHz, CHIRP sonar, and FishReveal overlays for superior fish and structure detail, with a signal-boosting design for cleaner returns.
Is FishReveal SideScan available on all Lowrance units?
FishReveal SideScan requires an S3100 sonar module with HDS LIVE, HDS Carbon, or Elite FS; it's native on HDS PRO with the right setup.
What frequencies does this transducer support?
Medium/High CHIRP at 83/200 kHz for sonar, plus 455/700/1000/1200 kHz for SideScan and DownScan Imaging.
How do I install the transom-mount transducer?
Secure to the transom 1-2 inches below the hull, align parallel to waterline, and route cables cleanly to avoid prop wash interference.
Can it handle shallow water fishing?
Absolutely—high-frequency imaging shines in shallows, imaging areas too tight for your boat like shorelines and coves.
What's the range for SideScan imaging?
Expect detailed coverage up to 100+ feet per side in optimal conditions, varying by frequency, water clarity, and depth.
Does it work with older Lowrance displays?
Direct compatibility is with HDS PRO; for HDS LIVE/Carbon/Elite FS, add an S3100 module.
Step up to the ultimate fishfinding clarity with new, high-definition Active Imaging™ HD 3-in-1 sonar. Get the clearest images of fish and structure from Lowrance(R) CHIRP sonar, high-frequency (up to 1.2 Megahertz) SideScan/DownScan Imaging™, plus FishReveal™ DownScan and a new FishReveal SideScan* view, making fish identification easy. Experience a new level of clarity and improved target separation with extremely detailed views of fish and fish-holding structure like rockpiles, standing timber, weedbeds, ditches, drop-offs and more. DownScan Imaging™ makes it easier to identify how fish are relating to structure, providing photo-like images of rocks, trees, bottom composition and other underwater structure directly beneath the boat. Perfect for searching large areas for fish-holding structure, allowing you to cover more water in a shorter period of time, and view areas too shallow for your boat – like next to the shore or bank. See ?sh, structure and the bottom with greater clarity with Lowrance CHIRP, which delivers the best views of individual ?sh targets. The Active Imaging™ HD transducer not only delivers three key sonar technologies – Lowrance(R) CHIRP, SideScan and DownScan Imaging™ – in one convenient package, but also features a new transducer design that boosts signal clarity.
Lowrance Electronics 0016060001 Attributes
- Mounting Location: Transom Mount
- Frequency Range: 83/ 200 kHz Medium/ High CHIRP Sonar Frequency
Lowrance Electronics 0016060001 Features & Benefits
- High Definition SideScan And DownScan Imaging Deliver The Clearest Images Of Fish And Structure
- Lowrance CHIRP With Superb Clarity And Target Separation
- FishReveal™ With New SideScan View As Well DownScan
- Supports Medium And High CHIRP
- Smart Transducer Design Boosts Signal Clarity
- Compatible Directly With Lowrance HDS PRO Or With A S3100 Module With HDS LIVE, HDS Carbon And Elite FS
- Limited 1 Year Warranty

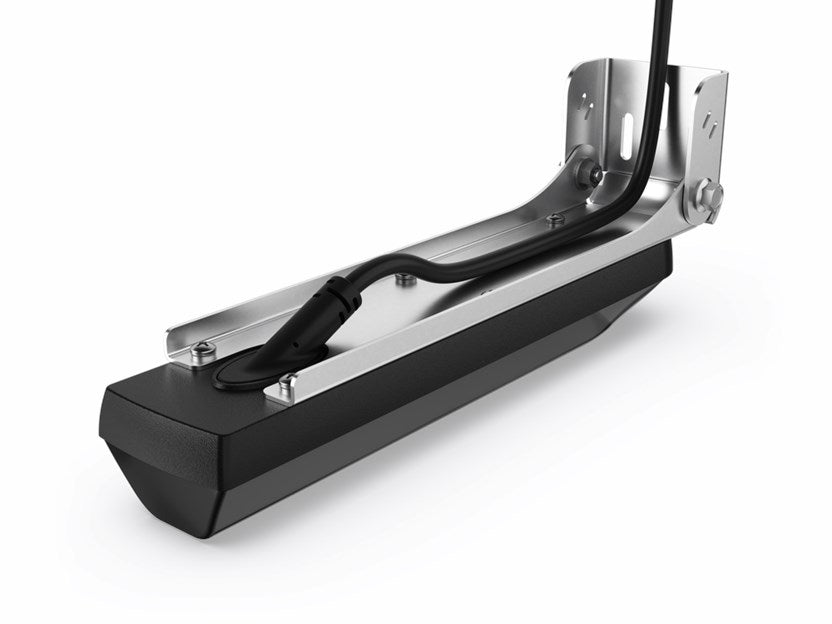

Active Imaging HD™ 3-in-1 FishReveal Transducer
Step up to the ultimate fishfinding clarity with new, high-definition Active Imaging™ HD 3-in-1 sonar. Get the most precise images of fish and structure from Lowrance® CHIRP sonar, high-frequency (up to 1.2MHz) SideScan/DownScan Imaging™, plus FishReveal™ DownScan and a new FishReveal SideScan* view, making fish identification easy.
*requires S3100 sonar module for Fish Reveal SideScan
Features:
- High definition (up to 1.2MHz) SideScan and DownScan Imaging deliver the most precise images of fish and structure
- Lowrance CHIRP with superb clarity and target separation
- FishReveal™ with new SideScan* view as well as DownScan
- Supports Medium and High CHIRP (83/200kHz) and 455/700/1000/1200 kHz frequencies
- Smart transducer design boosts signal clarity
- Compatible directly with Lowrance HDS PRO or with an S3100 module with HDS LIVE, HDS Carbon, and Elite FS.
*requires S3100 sonar module and relevant transducer for Fish Reveal SideScan on HDS PRO
Frequently Asked Questions (FAQ) About Lowrance Active Imaging HD™ 3-in-1 FishReveal Transducer
Who is the Lowrance?How to describe Lowrance Active Imaging HD™ 3-in-1 FishReveal Transducer?
Who is the Lowrance?
How to describe Lowrance Active Imaging HD™ 3-in-1 FishReveal Transducer?
Lowrance ActiveImaging™ HD 3-in-1 (Medium/High)— SideScan Fish Reveal transom mount Transducer
Model: 000-16060-001Delivers the highest-definition views of CHIRP, SideScan™, and DownScan Imaging™ in one transducer + SideScan Fish Reveal when connected to an S3100 sonar module.
"Save $97 when you buy the Lowrance Active Imaging HD™ 3-in-1 FishReveal Transducer for only $369 from NVN Marine! Same day shipping before 3pm.
Lowrance Active Imaging HD™ 3-in-1 FishReveal Transducer Technical Specifications
| Type: | |
|---|---|
| Vendor: |
Lowrance |
| Weight: |
3.89 lb |
