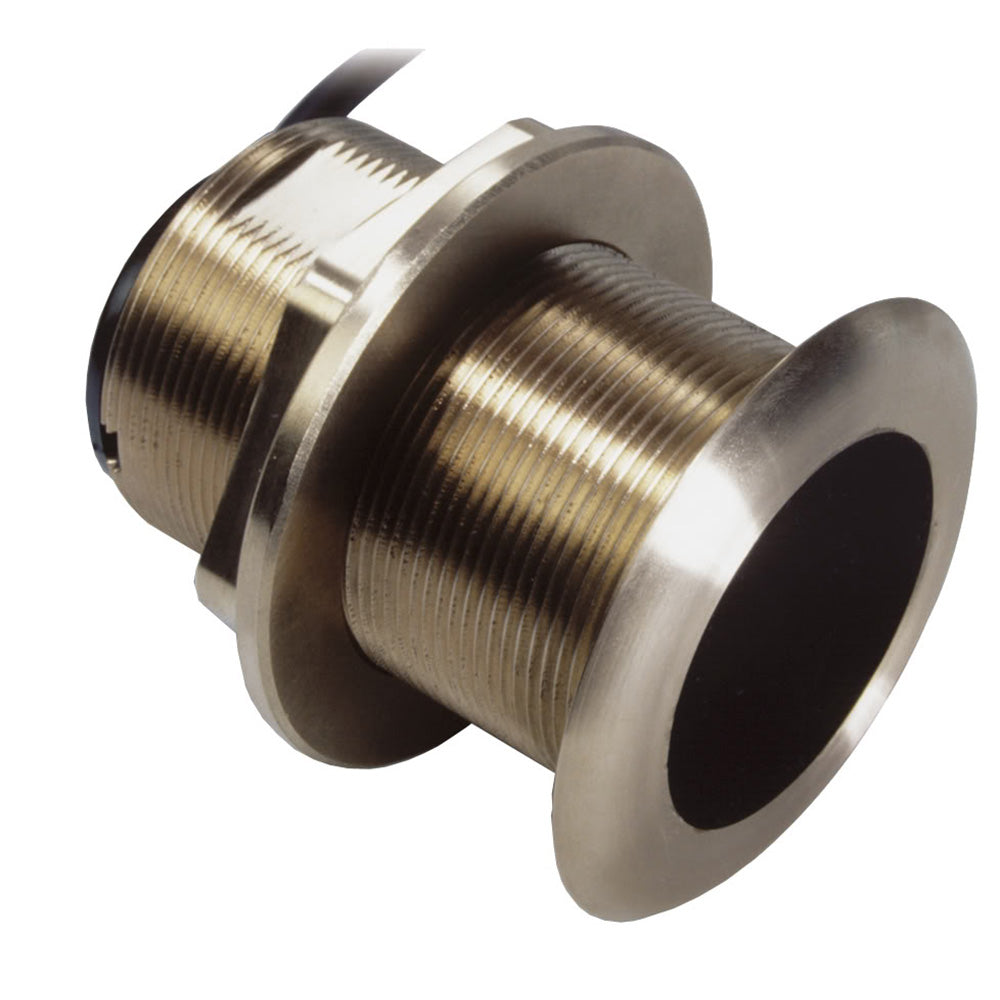

Navico B60 Thru Hull Transducer 12° Tilt, 9-Pin Xsonic Connector, Depth & Temperature

Unlock Superior Underwater Visibility with Precision Tilted Design

Imagine gliding through coastal waters, pinpointing fish-holding structures or navigating shallow passes without guesswork. This thru-hull transducer delivers exactly that, blending robust depth tracking with quick temperature readings in a sleek, low-drag package. Its innovative tilted ceramic element adjusts for your boat's hull angle, directing sound waves straight downward for sharper echoes and reliable data—even on boats with moderate deadrise.

Crafted for trailered center-consoles and day boats, it slips nearly flush against the hull, minimizing turbulence and preserving your vessel's speed. Boaters rave about its ability to cut through sediment-clouded bottoms, revealing contours that matter most for trolling or anchoring.

Engineered for Real-World Boating Demands

• Dual-Frequency Powerhouse: Switch seamlessly between a broad 45° beam at 50 kHz for sweeping large areas up to hundreds of feet deep, and a focused 12° beam at 200 kHz for detailed high-resolution scans closer in.
• Hull-Adaptive Tilt: Pre-set 12° angle perfectly matches 8° to 15° deadrise, eliminating weak signals from off-angle installations.
• Minimal Intrusion: Bronze housing protrudes just a whisper outside the hull, ideal for fiberglass or wooden builds without compromising hydrodynamics.
• Integrated Sensing: Depth paired with responsive water temp for spotting thermoclines where bait schools gather.
• Rugged Build: Handles trailering vibrations and saltwater exposure, with ample cabling for clean routing.

Performance That Outshines the Competition

At 600 watts, this unit punches through thermoclines and murky water better than entry-level puck transducers. The 50 kHz mode excels in open water, mapping drop-offs and wrecks with wide coverage, while 200 kHz hones in on bait balls and bottom details during inshore runs. Anglers targeting snapper or grouper appreciate how the tilted element maintains consistent bottom lock in following seas, reducing false readings that plague flush-mount alternatives.

Expect crisp separation of closely spaced targets, making it a favorite for competitive fishing where every inch counts. Its temperature probe reacts fast to changes, helping you adjust lure depth on the fly as water layers shift.

Streamlined Installation for Weekend Warriors

Setting it up is straightforward for any DIY boater. Drill a precise 60 mm hole, thread the 68.5 mm shaft through, and secure with the included nut—no fairing blocks needed thanks to the built-in tilt. Position it forward of props and struts, at least one-third the waterline length from the bow for optimal wave-free readings.

Pro tip: Fair the housing slightly with marine sealant for dead-smooth flow on planing hulls. Connects effortlessly to compatible chartplotters via the 9-pin Xsonic interface, with 10 meters of cable giving flexibility for helm routing. Test in shallow water post-install to verify beam alignment and calibrate your display for peak accuracy.

Long-Term Reliability and Maintenance Essentials

Built to withstand UV, corrosion, and impacts, this bronze transducer laughs off barnacle buildup compared to plastic models. Rinse with fresh water after every saltwater trip, inspect the face for dings annually, and apply anti-fouling paint if operating in foul-prone areas. Avoid high-pressure washes near the cable entry to prevent seal breaches.

Over time, monitor for signal fade, which might signal a fouled ceramic— a quick vinegar soak often revives it. With proper care, it delivers seasons of trouble-free service, backing your adventures from dawn patrols to sunset drifts.
