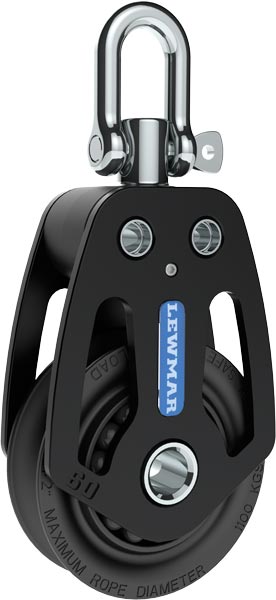

Lewmar 60mm HTX Block - Single

Lewmar 60mm HTX Block - Single Product Description

Years of design and manufacturing experience, combined with collaboration with boat builders, designers, and sailors, has resulted in the Lewmar HTX Hardware Range. Drawing upon the design of the racing range, the HTX blocks are constructed simply from high quality materials, providing enhanced reliability. Ideal for frequently adjusted, highly loaded systems using modern line technology and reduced line diameters.

Lewmar 29196001 Attributes

• Type: Single Block
• Number Of Pulley: 1
• Working Load Limit: 2422 Pound
• Line Diameter: 12 Millimeter
• Sheave Diameter: 60 Millimeter
• Cleat Type: No Integral Cleat
• Ratchet And Direction: Non Ratcheting Any Direction
• With Becket: No
• Color: Black
• Material: Aluminum
• Mounting Type: Swivel Shackle Mount

Lewmar 29196001 Features & Benefits

• Strong Aluminum Side Cheeks
• Central Plain Bearing For Efficiency At High Loads
• Side Thrust Delrin Ball Bearings
• Head Design Inspired By Lewmar Racing Range, Complete With Grub Screw Swivel Head Locking Mechanism
• Limited 3 Year Warranty

Lewmar 29196001 Warranties

• Limited Warranty and Key Terms of supply by Lewmar INC.pdf

Lewmar 29196001 Technical Bulletins

• 29196001_BUL.pdf
• 29196001_BUL_1.pdf

60mm HTX Block - Single

Years of design and manufacturing experience coupled with collaboration with boat builders, designers, and sailors have resulted in the Lewmar HTX Hardware Range.  Drawing upon the design of the Racing Range, the HTX blocks are constructed simply from high-quality materials, providing enhanced reliability.

HTX blocks are ideal for frequently adjusted, highly loaded systems using modern line technology and reduced line diameters.

Features:

• Strong aluminum side cheeks
• Central plain bearing for efficiency at high loads
• Side thrust Delrin ball bearings
• Head design inspired by Lewmar Racing Range with grub screw swivel head locking mechanism

Technical Specifications:

• Working Load Limit - 2422lb
• Weight - 7.5oz
• Maximum Line Size - .5" (12mm)

*Sold as an Individual
