Lewmar Size 10 Low Profile Deck Hatch

SKU: 94267 - UPC: 743683107047
$288.59 $524.95 ( / )

Available Stock : 14

Size 10 Low Profile Deck HatchThe Low Profile Hatch has soft styling and sleek looks, ideal for use on a powerboat. Smaller ventilation hatches are suitable for any deck location on sailboats, while the larger sizes can be used as foredeck hatches on smaller to mid-size yachts.Features: Outside handles allow...
Same Day

Shipping (3PM)

Free Returns

Within 30 days

Lewmar Size 10 Low Profile Deck Hatch Product Description

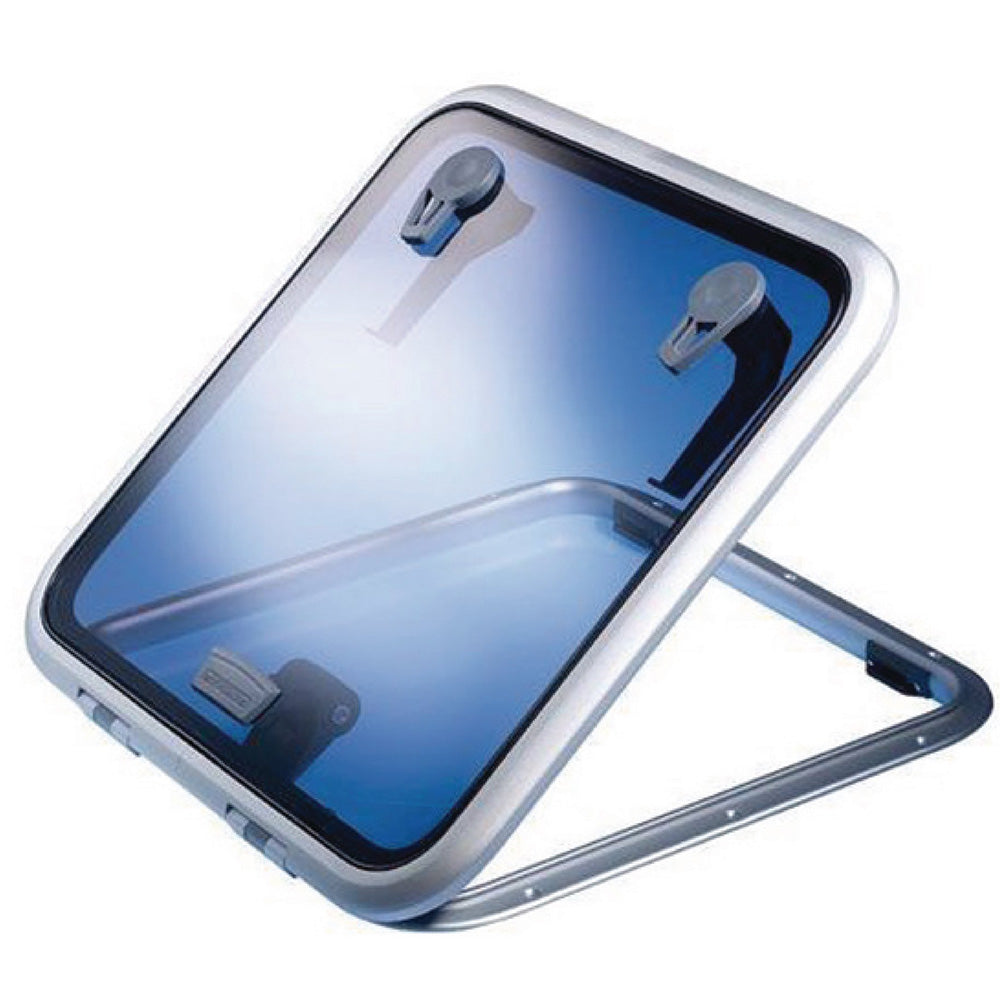

Size 10 Low Profile Deck Hatch

The Low Profile Hatch has soft styling and sleek looks, ideal for use on a powerboat. Smaller ventilation hatches are suitable for any deck location on sailboats, while the larger sizes can be used as foredeck hatches on smaller to mid-size yachts.

Features:

  • Outside handles allow the hatch to be opened from on deck if it is not locked (Sizes 00, 03,10, 20 & 41 have no outside handle and can only be opened from the inside.)
  • Low profile hatches open up to 180° (round hatches open to 170°)
  • Friction levers hold the lid open in any position up to 95°
  • Anodized aluminum frame for corrosion resistance
  • Curved upper frame profile for strength as well as modern styling

Technical Specifications:

  • Support System - Self-supporting
  • Color - Smoke Grey
  • Weight - 4.9lbs
  • Dimensions (L x W x H) - 13" x 13" x 1"
  • Cut-Out Dimensions (L x W) - 10.25" x 10.25"

*Sold as an Individual

Support System Lower Frame (in) Acrylic Colour Hatch Weight (lb) Acrylic Window Thickness (in)
Self Supporting 9/16 Smoke Grey 4.9 5/16

Dimensions

Length  (in) Width (in) Height (in) Radii (in) Cut-Out Length (in) Cut-Out Width (in) Cut-Out Radii (in)
13 13 1 2 7/8 10 1/4 10 1/4 1 11/16

Mounting Instructions
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use M6 (1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.





Save $236 when you buy the Lewmar Size 10 Low Profile Deck Hatch for only $288 from NVN Marine! Same day shipping before 3pm.

Lewmar Size 10 Low Profile Deck Hatch Technical Specifications

Type:

Boat Outfitting | Deck / Galley

Vendor:

Lewmar

Weight:

10.0 lb
