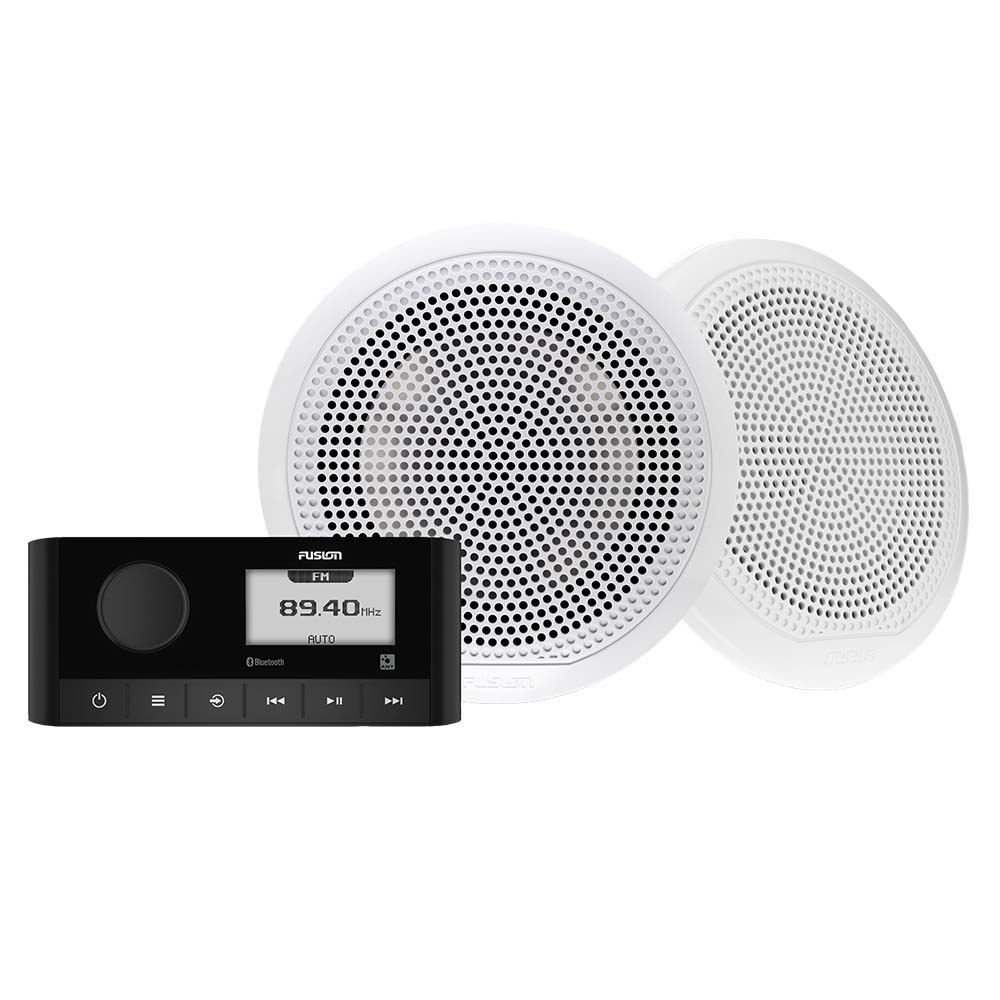

FUSION MS-RA60 & 6.5" EL Classic Speaker Kit

FUSION...True Marine is FUSION's industry-leading marine audio product range. FUSION True Marine products are 100% designed and engineered specifically for the marine environment. FUSION offers an extensive line of Marine Audio products from Stereo Units to Speakers to Marine Packs, Amplifiers, Subwoofers and even Stereo Unit accessories.

"

Fusion MS-RA60KCW Marine Stereo Bundle

Model: 010-02405-50

• Bonded LCD improves durability and protection against condensation and fogging.
• Built-in Class-D amplifier delivers higher efficiency and greater output.
• Enjoy convenient over-the-air software updates via BLUETOOTH® technology from the Fusion-Link™ app1.
• Enjoy convenient over-the-air software updates via BLUETOOTH® technology from the Fusion-Link™ app1.
• Control your music from your compatible smart device or Garmin watch.

The MS-RA60 is the most economical marine stereo from Fusion yet, featuring modern aesthetics, Multi-Zone™ Technology in two zones and advanced connectivity options in a compact form factor.

Designed and engineered for the harsh marine environment, the MS-RA60 stereo has an IPX6- and IPX7-rated water-resistant front panel to perform and last on board.

Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.

The MS-RA60 is designed to fit in the MS-RA55 mounting profile, eliminating the need to alter your existing cutout, reducing complexity when upgrading your stereo system.

Take advantage of the multiple source options available, including BLUETOOTH technology, DAB+ radio, AM/FM radio and AUX connection.

The built-in DAB tuner supports the latest DAB and DAB+ broadcasts, allowing you to enjoy high-quality digital radio streaming wherever DAB and DAB+ are supported.

Model: 010-02080-00
The shallow basket design makes the EL Series ideal for installation where mounting depth is limited, for example, in thin wall cavities. Both the Classic and Sports speaker grilles have been specifically designed to provide the ultimate in cone protection, with a modern look to complement any vessel.

The EL Series speakers are rated IP65 for water and dust ingress protection from the front face when correctly mounted. Meeting industry standards for UV and salt fog protection, the EL Series speakers are perfect for both indoor or outdoor installation in the harsh outdoor and marine environments.

Specifications

General
Physical dimensions (H x W x D)	2.68"" x 6.18"" x 4.06"" (68 x 156.9 x 103.2 mm)
Weight	11.1 oz (316 g)
Water rating	IPX6 and IPX7 (front panel only, when properly installed)
Power input	10.8-16 VDC
Operating temperature range	32° to 122° F (0° to 50° C)
Current (max.)	15 A
BLUETOOTH wireless range	BLUETOOTH wireless range
ANT wireless range	Up to 10 ft (3 m)
Wireless frequencies/protocols	Bluetooth 2.4 GHz @ +12 dBm nominal
Compass-safe distance	5.9"" (150 mm)
Stereo Features
Display	2.3"" perimeter bonded monochrome dot matrix LCD
Built-in amplifier	Class-D (minimum 4 ohm impedance)
Peak power	180 W
Rated power output (4 ohm)	22 W rms x 4 @ 14.4 V input, 4 ohm, 10% THD
Fusion-Link™ control	yes (with compatible Apple and Android devices)
Fusion-Link Lite control	yes (with compatible Garmin watch)
Multi-Zone™ technology	2 zones
BLUETOOTH wireless technology	yes
ANT wireless technology	yes
DAB+	yes (DAB tuner built in)
Multi-language interface	Dutch/English/French/German/Italian/Spanish
Software updates	Over-the-air software updates via BLUETOOTH wireless technology using the Fusion-Link app
Warranty	1 year
Sources
Sources	AM/FM/BLUETOOTH/AUX x1/DAB+ (available in Europe and Australia only)
Connectivity
Auxiliary input	One RCA input (AUX)
AM/FM radio	One Motorola antenna connector port
Speaker	4 x speaker connections (2 amplified zones)
4 x speaker connections (2 amplified zones)	1 zone (requires external amplification)
Line out	Zone 1: L + R (requires external amplification)
Subwoofer out	Zone 1 (requires external amplification)
Speakers
Speaker size	6.5""
Peak power	80 watts
RMS power rating	20 watts
Efficiency (1W/1M)	84dB
Frequency response	100Hz-15kHz
Impedance	4 Ohm
Cone material	Polypropylene
Mounting diameter clearance	5 1/""
Mounting depth cllearance	1 11/16""

What's in the Box:

• Fusion MS-RA60 marine stereo
• Mounting gasket
• Four 6-gauge, self-tapping screws
• Two screw covers
• Power and speaker wiring harness
• Auxiliary-in, line-out, and subwoofer-out wiring harnesses
• Documentation
• EL-F651W 6.55"" Speaker Pair
"
