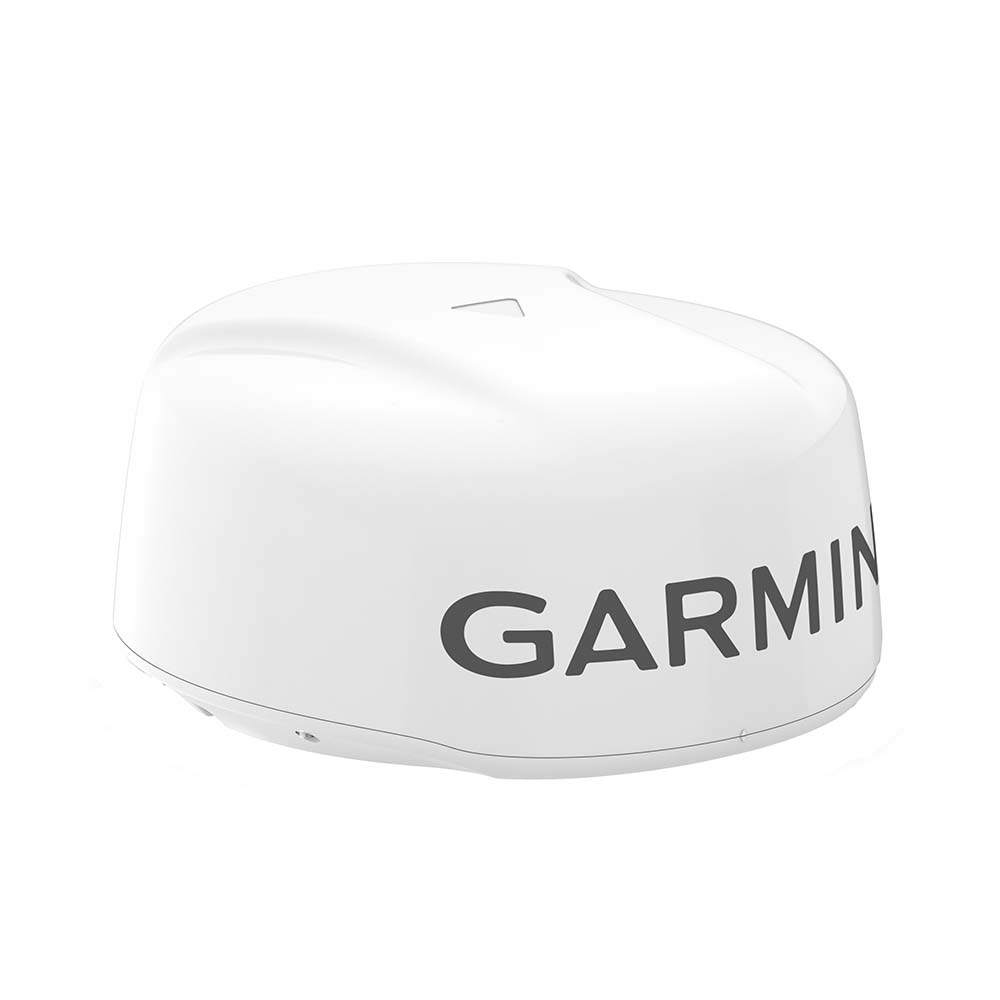

Garmin GMR Fantom 18x Dome Radar - White, 50W Solid State

The Garmin GMR Fantom 18x Dome Radar is Garmin's 18-inch dome version of the Fantom solid-state Doppler radar series - the right radar for recreational and small commercial boats wanting Doppler-class radar capability in a compact, lightweight dome housing rather than the bigger open-array antennas Fantom uses on bigger boats. Garmin's Fantom line introduced solid-state Doppler radar to the recreational marine market and has become the standard offering for the segment. The 18x dome variant gives you all the Fantom feature set in the smallest practical form factor.

50-watt solid-state output. Solid-state radar uses a semiconductor transmitter rather than the older magnetron tube that traditional pulse radars relied on. Three real benefits: instant-on (no warmup time vs the 90-180 second warmup magnetrons need), long-life (solid-state has effectively unlimited transmitter life, vs the 5000-hour magnetron lifespan that ages out older radars), and lower power consumption. 50 watts is the right power level for the 18-inch dome - enough range for typical recreational use (20+ miles) without the higher power and bigger dome of the 24-inch Fantom variant.

Up to 60 RPM rotation. Most traditional dome radars rotate at 24-48 RPM. The Fantom 18x runs up to 60 RPM, which means the screen refreshes faster - you see new target information every second instead of every 1.5-2.5 seconds. The faster refresh rate matters in two scenarios: high-speed running (where you need the latest target picture to maneuver), and tracking moving targets (where the slower refresh makes Doppler trails look choppy). For sportfish-class boats running 30+ knots and serious blue-water cruisers operating in heavy traffic, the 60 RPM rate is the visible difference vs lower-end dome radars.

MotionScope Doppler. The Doppler radar feature is what makes Fantom radars different from older non-Doppler dome radars. The radar detects target motion through the Doppler frequency shift on the return signal, then color-codes targets on the chartplotter screen: green for targets moving away from your boat, red for targets moving toward your boat, and a neutral color for stationary targets (land, anchored boats, navigation aids). The visual color-coding is the killer feature for collision avoidance - in a busy harbor or a fog-bound transit, you can instantly identify the boats that matter (the ones moving toward you) without manually working radar plotting. MotionScope also color-codes weather cells - approaching squalls show red, departing weather shows green - which dramatically improves weather targeting during open-water transits.

True echo trails. The chartplotter overlays a fading historical trail behind each radar return, showing where the target has been over the last several seconds or minutes. Combined with MotionScope's color coding, true echo trails make it trivial to identify which targets are static (land, buoys), which are slow-moving (anchored boats with current swing), and which are actively under way (collision risks). For watching weather cells, the trails show the storm cell's actual track instead of just where it is right now.

Dual range. The Fantom 18x splits the radar display into close-range and long-range views simultaneously - configure each split with independent range settings and gain / sea filter controls. The classic use case: long-range view for traffic awareness and weather targeting at the 16-mile setting, simultaneous close-range view at the 1.5-mile setting for harbor approach and immediate collision risks. Without dual range, you constantly toggle between ranges and always have either the close-in or the far-out picture but not both. Dual range eliminates the toggle and keeps both views live.

Dual radar support. For boats running two radars (typical on bigger sportfishers, charter boats, and serious cruisers), the Fantom 18x supports dual-radar configurations where each chartplotter on the boat can pull data from one of two different radar sources. The use case: redundancy (if one radar fails, the other takes over), and complementary coverage (e.g., a 4-foot open array on the mast for long range plus an 18-inch dome on the cabin top for close-range supplementary coverage). For single-radar boats, this feature is irrelevant. for dual-radar setups, it's central to the rigging.

Power save feature. The radar lets you select higher or lower power output to trade range and target sensitivity against power consumption. At full 50W output, the radar draws roughly 30W from the boat's 12V system. At reduced power for closer-range work, the draw drops to around 15-20W. For boats running on battery power for extended periods (sailboats, anchor-out fishing boats, off-grid cruisers), the power save mode meaningfully extends battery life when full radar range isn't needed.

Timed-transmit mode with second-level granularity. The Fantom 18x supports timed-transmit operation where you specify active and inactive transmission times down to the second (vs older radars that only let you set timed-transmit in minutes). Use case: at anchor or moored, you can configure the radar to transmit for 30 seconds every 5 minutes - keeping a coarse traffic picture without the steady-state power draw of continuous operation. The second-level granularity is meaningful because for some boats the right ratio is something like 10 seconds on / 60 seconds off, and rounding to whole minutes wouldn't give you the right balance.

Dynamic Auto Gain and Dynamic Sea Filter. The radar's controller automatically adjusts gain (sensitivity) and sea filter (clutter rejection) based on current conditions - rain, sea state, target density, ambient noise. Older radars required constant manual adjustment as conditions changed (you'd start a passage with one set of gain / sea filter settings and have to retune them when conditions shifted). The dynamic auto modes do this automatically and continuously, which is the right approach for typical recreational use where you're not parked at the radar console with full attention.

Radar overlay on chart. The standard Garmin chartplotter feature overlays the radar returns on top of the chart - so you see radar targets in their actual chart-positioned locations, with land masses, navigation aids, and depth contours all in one composite view. Critical for navigation in fog or low visibility - the chart tells you where the navigation aids should be, the radar shows you where targets actually are, and the overlay makes them line up. For boats spending time in fog (Pacific Northwest, Maine, Great Lakes spring / fall conditions), the overlay is the radar feature that gets the most use.

Adjustable target size. A target-size adjustment lets you tune the on-screen rendering of radar returns for better target separation based on your environment. In open water with isolated targets, you can use a larger render size for better visual prominence. In a crowded harbor with many close targets, a smaller render size keeps the targets visually distinct so you can resolve individual boats instead of seeing them blob together.

What's in the box. The kit includes the GMR Fantom 18x dome radar, a 15-meter (49.2-foot) power cable, a 15-meter (49.2-foot) Garmin Marine Network cable, the mounting hardware kit and template, and the installation instructions. The 15-meter cable lengths are appropriate for typical mid-cabin or hardtop mounting on boats up to about 50 feet - longer cables are available separately for radar mounted on a flybridge or arch on bigger boats. Garmin chartplotter is sold separately - the radar requires a compatible Garmin chartplotter (most recent GPSMAP and ECHOMAP series chartplotters with Marine Network support).

Compatible chartplotters. The Fantom 18x connects to compatible Garmin chartplotters via the Garmin Marine Network. Most current GPSMAP series (8400 / 8600 / 9000 / etc) support the Fantom radars. Some ECHOMAP Plus and Ultra series support Fantom radar as well. Check Garmin's compatibility list for your specific chartplotter model before ordering. Older non-Marine-Network Garmin chartplotters do NOT support Fantom radars - if you're running a much older system, the chartplotter side typically needs to be updated as well.

Install. Mount the dome on a flat surface (typical mast cap, hardtop center, radar arch top) using the supplied mounting hardware and template. The dome needs roughly 4-6 inches of clearance below for the rotating antenna. Connect the power cable to the boat's 12V system through an appropriate fuse (Garmin specifies the fuse rating in the install instructions). Connect the network cable to the chartplotter's Marine Network port. Total install is typically 4-8 hours for a boat owner with reasonable mechanical and electrical skills. Standard Garmin warranty applies.
