Bilge-B-Dry Dual Pump 24v Dry Biilge System Product Description
Imagine returning to your boat after a stormy weekend, only to find that lingering dampness in the bilge causing musty smells and potential corrosion issues. Traditional bilge pumps often leave behind those stubborn inches of water in hard-to-reach spots, especially on modern stepped-hull designs. Enter the Bilge-B-Dry Dual Pump 24v Dry Bilge System—a game-changer for boat owners seeking complete water removal without the hassle. This innovative setup uses dual diaphragm pumps to suck up every last drop, keeping your vessel drier, fresher, and ready for the next adventure.
Why Choose a Smart Dry Bilge System for Your Boat?
Boat maintenance starts below deck, and excess bilge water is a silent enemy. It breeds odors, promotes mold growth, and threatens electrical components. Unlike standard submersible pumps that can't access low-lying areas, this dual-pump configuration excels in stepped hulls, forward compartments, and tight spaces. Here's what sets it apart:
- App-Controlled Customization: Pair it with your smartphone via a free app (iOS or Android) to set schedules, monitor cycles, and get alerts—perfect for forgetting to check manually.
- Dual Pump Power: Two reliable motors work in tandem for faster, more thorough evacuation, handling washdowns, rain, spray, or minor leaks effortlessly.
- Run-Dry Durability: Diaphragm technology lets pumps operate without water damage, extending lifespan to over 1,000 hours.
- Flexible Installation: Compact enclosure fits anywhere—horizontal, vertical, or angled—and includes quick-disconnect wiring for easy integration with existing switches or sensors.
- Eco-Friendly Design: Low-profile pickup with a replaceable filter minimizes debris intake while protecting marine environments.
Boat enthusiasts rave about transforming soggy bilges into pristine ones, reducing cleanup time and preventing costly repairs. Whether you're a weekend cruiser or liveaboard, this system delivers peace of mind on the water.
How the Dual Pump Dry Bilge System Keeps Your Boat Dry
The magic lies in its intelligent operation. Without the app, it defaults to a smart cycle: two minutes every six hours, sipping just 0.03 amps at idle to conserve battery. Connect via Wi-Fi, and you unlock programmable intervals tailored to your usage—run it after heavy rain or before docking.
Water enters through the sleek rectangular pickup (flush-mounted for low profiles), travels via 1/4-inch input tubing, gets pumped by dual 24V diaphragms (up to 0.50 GPM flow, 10-foot head), and exits through 3/8-inch output tubing. Sensors and controls ensure it only activates when needed, avoiding unnecessary wear.
Pro Tip for Stepped-Hull Owners
Position the pickup forward of the step to capture pooled water that standard pumps miss. Many users report halving their moisture-related issues overnight.
Simple Installation for Any Boat Setup

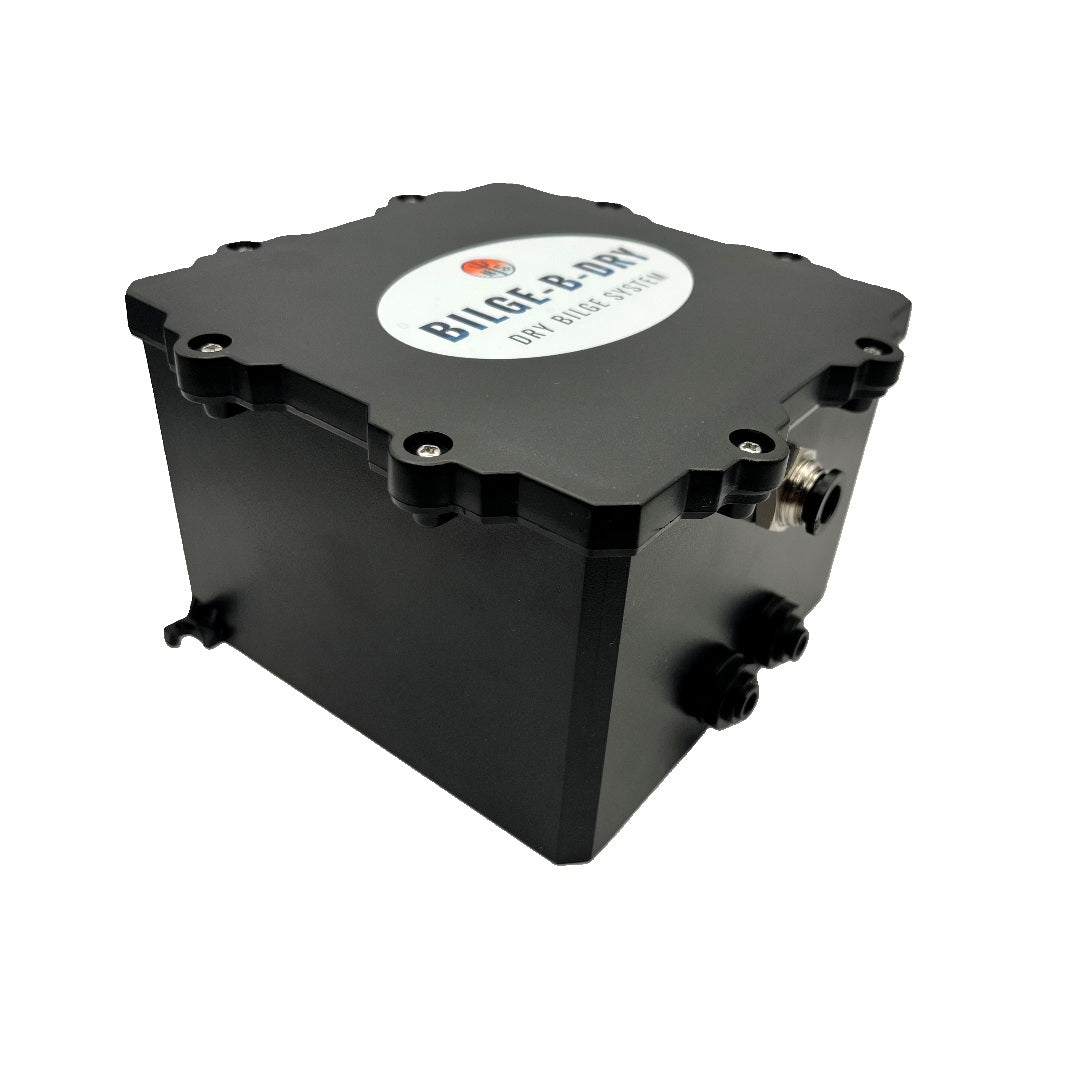

No need for a marine electrician. Mount the 4.1 x 6.8 x 7-inch enclosure in a dry spot, connect the pre-cut tubing (10 feet input, 6 feet output), and wire to your 24VDC system (20-26V range). The harness supports triggers from float switches or helm panels. Full setup takes under an hour, with orientations suiting tight engine rooms or lazarettes.
- Secure the pickup in the lowest bilge area.
- Route tubing to avoid kinks.
- Plug in the quick-disconnect harness.
- Download the app and customize.
It's that straightforward, making it ideal for DIYers or upgrades on sailboats, powerboats, or yachts.
Technical Specifications at a Glance
| Feature | Details |
|---|---|
| Max Current | 0.37 amp (24VDC) |
| Idle Current | 0.03 amp (24VDC) |
| Pump Performance | |
| Max Flow | 0.50 GPM |
| Pump Head | 10 feet |
| Pump Suction | 5 feet vertical |
| Life Expectancy (Pumps) | 1,000+ hours |
| Dimensions & Weight | |
| Enclosure | 4.1"H x 6.8"W x 7"L |
| Pickup | 0.98"H x 2.4"W x 3.9"L |
| Weight | 2.0 lbs (core unit) |
Complete Kit for Out-of-the-Box Readiness
Everything you need arrives ready to install:
- Dual motors with diaphragm pumps
- 10 feet of 1/4" OD input tubing
- 6 feet of 3/8" OD output tubing
- Quick-disconnect wiring harness
- Low-profile pickup with filter
Long-Term Care for Peak Performance
Minimal upkeep keeps it running flawlessly. Rinse the filter periodically, inspect tubing for wear, and update the app firmware if prompted. The control board boasts 100,000-cycle durability and FCC-certified Wi-Fi for reliable connectivity. Users often go seasons without intervention, thanks to its robust build.
Frequently Asked Questions
What makes this dry bilge system different from traditional pumps?
It uses dual diaphragm pumps and a low-profile pickup to remove water from areas standard submersible pumps can't reach, like forward of hull steps. App control adds scheduling flexibility.
Can the pumps run dry without issues?
Yes, the diaphragm design allows extended dry running without damage, unlike centrifugal pumps that can burn out.
Is app connectivity required?
No, it auto-cycles every 6 hours for 2 minutes standalone. The app enhances control but isn't mandatory.
What voltage does it require?
Designed for 24VDC systems (20-26V range), drawing low idle current to preserve batteries.
How do I install it on a stepped-hull boat?
Place the pickup in the lowest forward area before the step, mount the enclosure nearby, and connect tubing/wiring. Fits tight spaces in any orientation.
Does it help with bilge odors and mold?
Absolutely—complete water removal prevents stagnant moisture, eliminating odors, mold, and corrosion risks for a fresher cabin.
What's the expected lifespan?
Pumps last 1,000+ hours; control board handles 100,000 cycles, far outpacing many competitors.
Bilge-B-Dry Dual Pump 24v Dry Biilge System
Model: BBD-2025-242- The world’s ONLY Smart Device enabled Dry Bilge System on the market with customizable operation!
- An efficient, reliable method to remove excess bilge water on all boats, including stepped-hull boats where water sits forward of the "step." Use BILGE-B-DRY after washdown, heavy rain or sea spray accumulation, rough seas, untreated leaks, etc.
- Heavy-duty pump enclosure with improved durability, enhanced pump efficiency and streamlined internal plumbing.
- A choice of four pump configurations in 12vdc or 24vdc for optimal water removal.
- Pump diaphragm design can run dry for extended periods of time without damage.
- A compact pump design for easy installation in tight or awkward spaces in any orientation (horizontal or vertical).
- Customized pump scheduling with the free Mobile App for Apple and Android devices.
- Quick disconnect wiring harness with optional ""trigger"" connection to a helm switch, float switch or water sensor.
- An environmentally friendly low-profile bilge water pickup design with a replaceable filter system.
- Configured to automatically cycle for 2 minutes every 6 hours if you decline Smart Device connectivity.
BILGE-B-DRY is the world’s only Smart Device enabled Dry Bilge System on the market!
Enjoy simple installation and customized scheduling control at your fingertips with our Mobile App for Apple or Android devices. Due to size and placement, traditional bilge pumps cannot remove the last few inches of excess water that accumulates in your bilge. With BILGE-B-DRY, you will finally be able to eliminate cabin odors, reduce mold or corrosion and protect your electrical wiring by removing every drop of water from your bilge. Your cabin will be odor-free, and your bilge will be the driest and cleanest at the marina!
Specifications| Max current | 0.37 amp (24 vdc) |
| Idle Current | 0.03 amp (24 vdc) |
| Pump | |
| Maximum flow | 0.50 GPM |
| Pump head | 10 feet |
| Pump suction | 5 (vertical) feet |
| Diaphragm design | Able to run dry for extended periods without damage |
| Life expectancy | 1000+ hours |
| Control board | |
| Life expectancy | 100,000 cycles |
| Wi-Fi & RF Grant | FCC Rule Part 15C |
| Dimensions (in) | |
| Enclosure | 4.1 H x 6.8 W x 7 L |
| Rectangular Pickup | 0.98 H x 2.4 W x 3.9 L |
| Weight | 2.0 LB (not including tubing, pickup, or accessories) |
| Tubing | |
| Input tubing | 1/4"" Outer Diameter |
| Output tubing | 3/8"" Outer Diameter |
| Input Voltage | 24 vdc (20-26 vdc) |
What's in the Box:
- Two motors/diaphragm pumps
- 10 feet of input tubing provided (PVC or PU) - ¼" OD
- 6 feet of output tubing provided (PVC or PU)-3/8" OD
