Bilge-B-Dry Single Pump 24v Dry Biilge System Product Description
Transform Your Boat's Bilge: Discover the Power of a Truly Dry Bilge
Boat owners know the frustration all too well—lingering water in the bilge after a washdown, heavy rain, or choppy seas. Traditional pumps leave behind inches of moisture that breed odors, encourage mold growth, and threaten your boat's electrical systems. Enter the game-changing Bilge-B-Dry Single Pump 24v system: a smart, efficient solution designed to extract every last drop, leaving your bilge bone-dry and your cabin fresh.
Unlike conventional setups that struggle in low-water zones or stepped-hull designs, this system targets those stubborn pockets forward of the step. It's built for reliability in real-world boating conditions, from leisurely cruises to offshore adventures.
Why Choose This Smart Dry Bilge Pump?
- Smart Device Integration: Pair with your smartphone via a free app for iOS or Android. Customize run cycles, monitor status, and set schedules tailored to your usage—rainy days, post-wash, or routine maintenance.
- Rugged Diaphragm Pump: Engineered to operate without water for hours, preventing burnout. Delivers 0.25 GPM flow with a 10-foot head and 5-foot vertical suction, perfect for challenging installs.
- Compact and Versatile: Fits tight spaces in any orientation. Low-profile pickup with replaceable filter keeps debris out while maximizing water intake.
- Effortless Control: Quick-disconnect harness supports helm switches, float switches, or sensors. No app? It defaults to a 2-minute cycle every 6 hours.
- Built to Last: Pump life exceeds 1,000 hours; control board handles 100,000 cycles. Enclosure withstands harsh marine environments.
How the Bilge-B-Dry System Keeps Your Boat Dry and Protected
This 24v system draws just 0.18 amps max and idles at 0.03 amps, sipping power from your boat's battery. The diaphragm technology creates a powerful vacuum to lift water from the lowest points, routing it through 1/4-inch input and 3/8-inch output tubing. Install the rectangular pickup in the bilge's forward section, connect the wiring, and you're set.
App connectivity unlocks precision: Schedule short bursts during off-hours or trigger manual runs remotely. The result? A bilge that's cleaner than your neighbor's, with no musty smells or corrosion risks. Ideal for fiberglass hulls, sailboats, or performance vessels where water pools awkwardly.
Simple Installation Tips for Seamless Setup
- Mount the enclosure securely in a dry, accessible spot using the provided hardware.
- Position the pickup screen flat in the bilge's deepest area, away from props or keels.
- Route input tubing to the pickup and output to your thru-hull—keep runs short for max efficiency.
- Wire to 24v DC (20-26v range) with the quick-connect harness. Add a trigger for auto-start on water detection.
- Download the app, connect via Wi-Fi, and tweak settings. Test with a bucket to confirm flow.
Most installs take under an hour, even for DIYers. Its flexible design adapts to monohulls, catamarans, or center consoles.
Technical Specifications at a Glance
| Specification | Details |
|---|---|
| Max Current | 0.18 amps (24 VDC) |
| Idle Current | 0.03 amps (24 VDC) |
| Pump Performance | |
| Maximum Flow | 0.25 GPM |
| Pump Head | 10 feet |
| Pump Suction | 5 feet (vertical) |
| Diaphragm Design | Runs dry indefinitely |
| Pump Life Expectancy | 1,000+ hours |
| Control & Dimensions | |
| Control Board Cycles | 100,000+ |
| Enclosure Size | 4.1" H x 6.8" W x 7" L |
| Pickup Size | 0.98" H x 2.4" W x 3.9" L |
| Weight | 1.8 lbs (core unit) |
| Tubing | 1/4" ID input, 3/8" OD output |
| Input Voltage | 24 VDC (20-26 VDC) |
Everything You Need to Get Started
- Motor/diaphragm pump assembly
- 10 feet of 1/4" OD input tubing
- 6 feet of 3/8" OD output tubing
- Quick-disconnect wiring harness
- Low-profile pickup with filter
- Mounting hardware and accessories
Frequently Asked Questions
Can this bilge pump run dry safely?
Yes, the diaphragm design allows extended dry running without damage, making it ideal for low-water bilge areas.
Is app control required for operation?
No, it auto-cycles for 2 minutes every 6 hours without the app, but pairing unlocks custom scheduling for optimal performance.
What boats is this best suited for?
Perfect for stepped-hull boats, sailboats, and any vessel with hard-to-drain bilge areas prone to residual water.
How much power does it draw?
Ultra-efficient at 0.18 amps max during operation and just 0.03 amps idle on 24v, preserving battery life.
Can I install it myself?
Absolutely—compact size and quick-connects make it DIY-friendly, often completed in under 60 minutes.
Does it help prevent odors and mold?
Yes, by removing all standing water, it eliminates moisture sources for bacteria, mold, and smells.
Upgrade to a drier, fresher bilge today and enjoy worry-free boating. Your boat deserves the best protection against water woes.

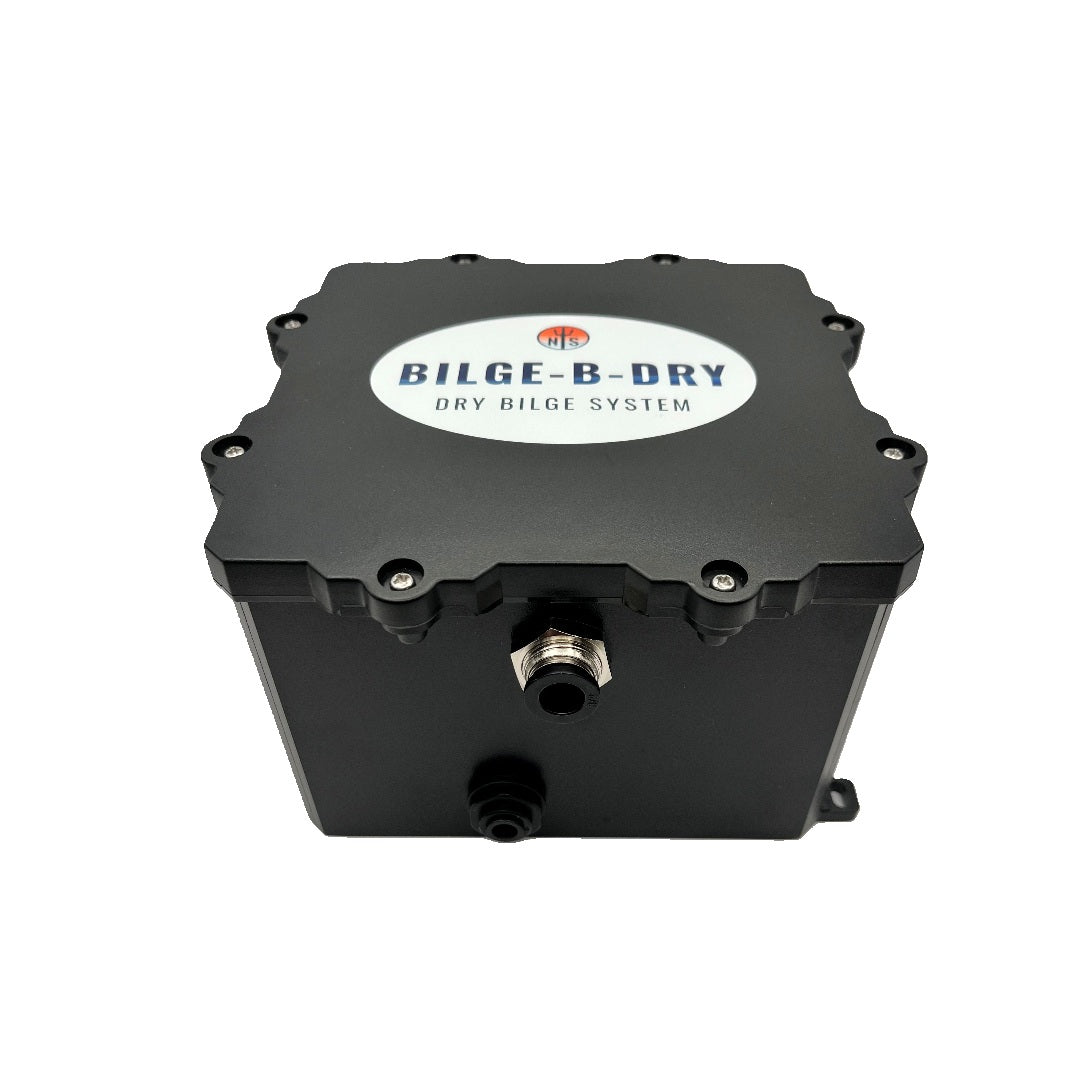

Bilge-B-Dry Single Pump 24v Dry Biilge System
Model: BBD-2025-241- The world’s ONLY Smart Device enabled Dry Bilge System on the market with customizable operation!
- An efficient, reliable method to remove excess bilge water on all boats, including stepped-hull boats where water sits forward of the "step."Use BILGE-B-DRY after washdown, heavy rain or sea spray accumulation, rough seas, untreated leaks, etc.
- Heavy-duty pump enclosure with improved durability, enhanced pump efficiency and streamlined internal plumbing.
- A choice of four pump configurations in 12vdc or 24vdc for optimal water removal.
- Pump diaphragm design can run dry for extended periods of time without damage.
- A compact pump design for easy installation in tight or awkward spaces in any orientation (horizontal or vertical).
- Customized pump scheduling with the free Mobile App for Apple and Android devices.
- Quick disconnect wiring harness with optional ""trigger"" connection to a helm switch, float switch or water sensor.
- An environmentally friendly low-profile bilge water pickup design with a replaceable filter system.
- Configured to automatically cycle for 2 minutes every 6 hours if you decline Smart Device connectivity.
BILGE-B-DRY is the world’s only Smart Device enabled Dry Bilge System on the market!
Enjoy simple installation and customized scheduling control at your fingertips with our Mobile App for Apple or Android devices. Due to size and placement, traditional bilge pumps cannot remove the last few inches of excess water that accumulates in your bilge. With BILGE-B-DRY, you will finally be able to eliminate cabin odors, reduce mold or corrosion and protect your electrical wiring by removing every drop of water from your bilge. Your cabin will be odor-free, and your bilge will be the driest and cleanest at the marina!
Specifications| Max current | 0.18 amps (24 vdc) |
| Idle Current | 0.03 amps (24 vdc) |
| Pump | |
| Maximum flow | 0.25 GPM |
| Pump head | 10 feet |
| Pump suction | 5 (vertical) feet |
| Diaphragm design | Able to run dry for extended periods without damage |
| Life expectancy | 1000+ hours |
| Control board | |
| Life expectancy | 100,000 cycles |
| Wi-Fi & RF Grant | FCC Rule Part 15C |
| Dimensions (in) | |
| Enclosure | 4.1 H x 6.8 W x 7 L |
| Rectangular Pickup | 0.98 H x 2.4 W x 3.9 L |
| Weight | 1.8 LB (not including tubing, pickup, or accessories) |
| Tubing | |
| Input tubing | 1/4"" Outer Diameter |
| Output tubing | 3/8"" Outer Diameter |
| Input Voltage | 24 vdc (20-26 vdc) |
What's in the Box:
- One motor/diaphragm pump
- 10 feet of input tubing provided (PVC or PU) - ¼" OD
- 6 feet of output tubing provided (PVC or PU)-3/8" OD
