EGIS 8530-1535 XD Triple Flex Automatic Charging Relay with Knobs Product Description

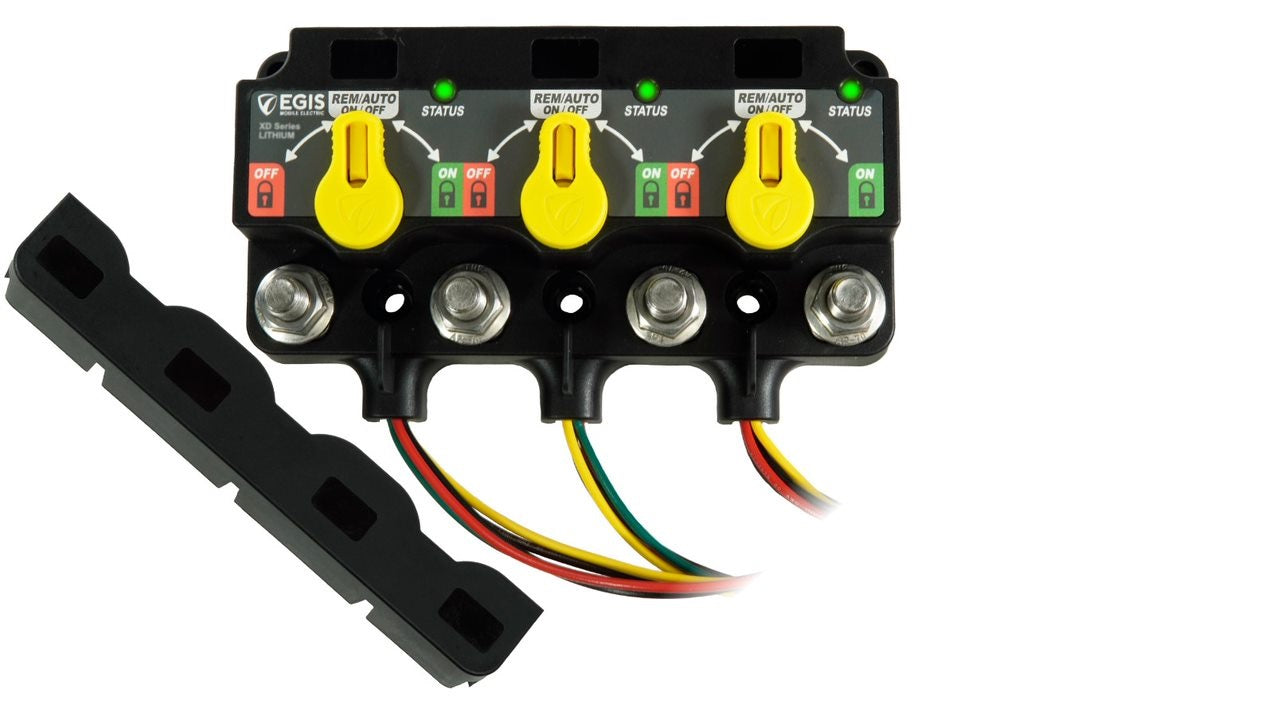

EGIS 8530-1535 XD Triple Flex Automatic Charging Relay with Knobs
Model: 8530-1535- Lithium Battery System Ready Designed for modern Lithium battery based electrical system applications that often require higher ON/OFF charge voltage settings over legacy battery chemistries.
- LED Status Display Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED
- 3-Position Manual Override Force each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition.
- 40 Circuit Label Sheet Included Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications.
- Protective Cover Included Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.
- Stainless Hardware Corrosion is no issue with quality stainless steel studs and self locking flanged nuts.
- Programmable Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications.
- Integrated Vent High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.
Bullet-proof Construction: Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
Intuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.
35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
Plug & Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.
90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functional
Specifications| TOTAL CONTINUOUS CURRENT (AMPS) | 500 |
| MAX CRANKING CURRENT (AMPS) | 1500 |
| MECHANICAL SWITCHING LIFE | 1,000,000 Cycles |
| VOLTAGE RANGE (V DC) | 8 - 36 |
| OFF-STATE CURRENT DRAW (mA) | 1.3 |
| STATE CHANGE CURRENT | 5A @ 12 Vdc 3A @ 24 Vdc |
Save $103 when you buy the EGIS 8530-1535 XD Triple Flex Automatic Charging Relay with Knobs for only $259 from NVN Marine! Same day shipping before 3pm.
EGIS 8530-1535 XD Triple Flex Automatic Charging Relay with Knobs Technical Specifications
| Type: | |
|---|---|
| Vendor: |
Raritan |
| Weight: |
0.9 lb |
