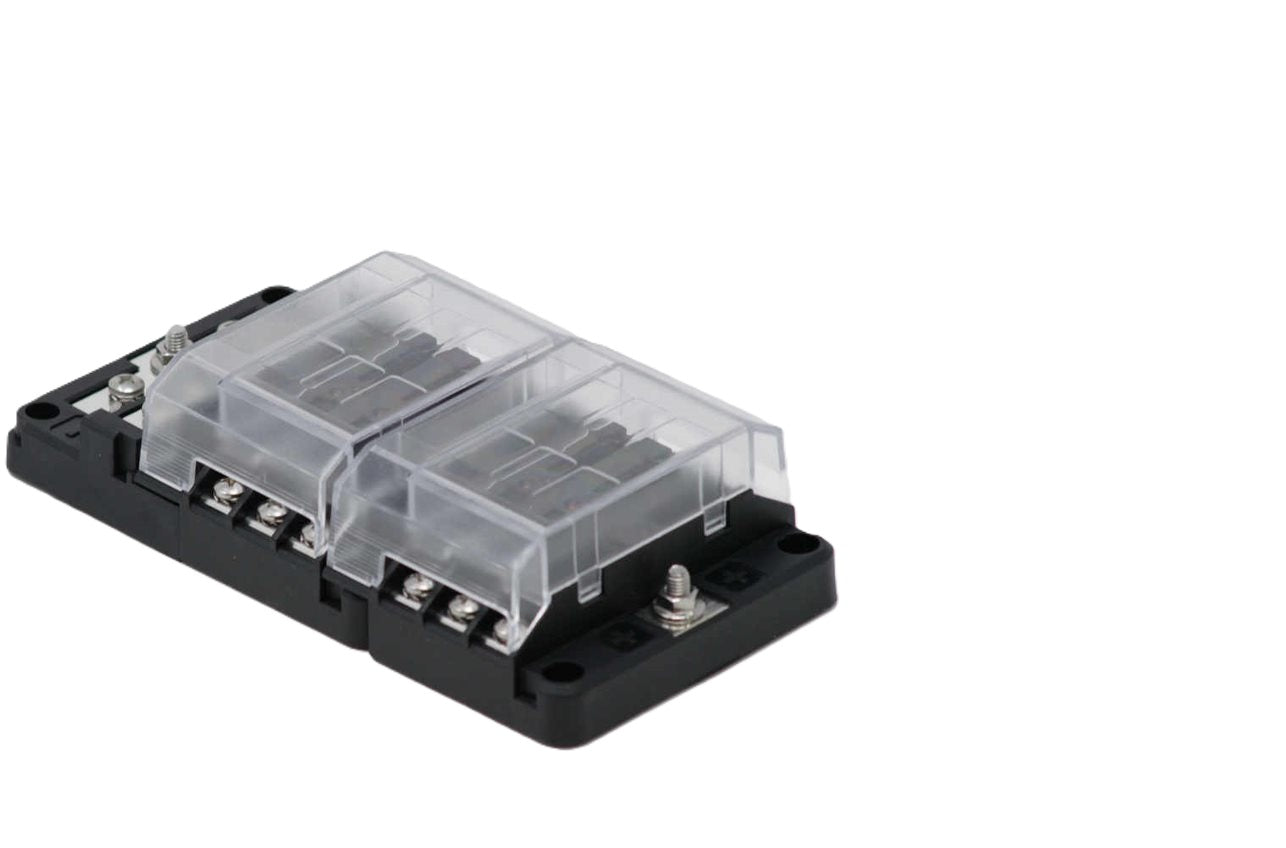

EGIS RT Fuse Block 12 Circuit with Ground and LED Indication

EGIS RT Fuse Block 12 Circuit with Ground and LED Indication

Model: 8026

• Spare Fuse Locations Two locations per 6 circuits for spare or test resistors for reducing siren volumes during evaluation.
• Stainless Steel Self-Locking Hardware 100 % Non Ferrous corrosion resistant materials. All attachment screws and nuts are self locking.
• LED Fuse Diagnostics Blown fuse LED indication for each output circuit provides clear indication of faulty circuits and eases trouble-shooting issues remotely.
• Cover/ Label Recesses Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.
• Ground Block Included Includes 12 position ground return block with multi level low amp terminal screws for improved mounting.
• Ground Block Separates Ground block section optionally separates from fuse block section affording increased deployment options for challenging installations.

Bullet-proof Construction: Designed with high temperature materials and stainless steel self-locking hardware allow mounting anywhere on vehicle.

Protects Branch Circuits by accepting ATO style fuses ranging from 1 through 40 Amps.

Supports SAE Circuit Protection Standards for thermal/short circuit events.

Specifications

Max Current - Entire Block (Amps)	10
MAX CURRENT - Per Circuit (AMPS)	30
MAx Output Wire Size	#10 AWG
VOLTAGE RANGE (V DC)	0-36
Number of Fuse Positions	12
Compatible Fuse Types	ATO / ATC / ATF

SKU: NVN-1004225
MPN: 8026
UPC: 850035199725
