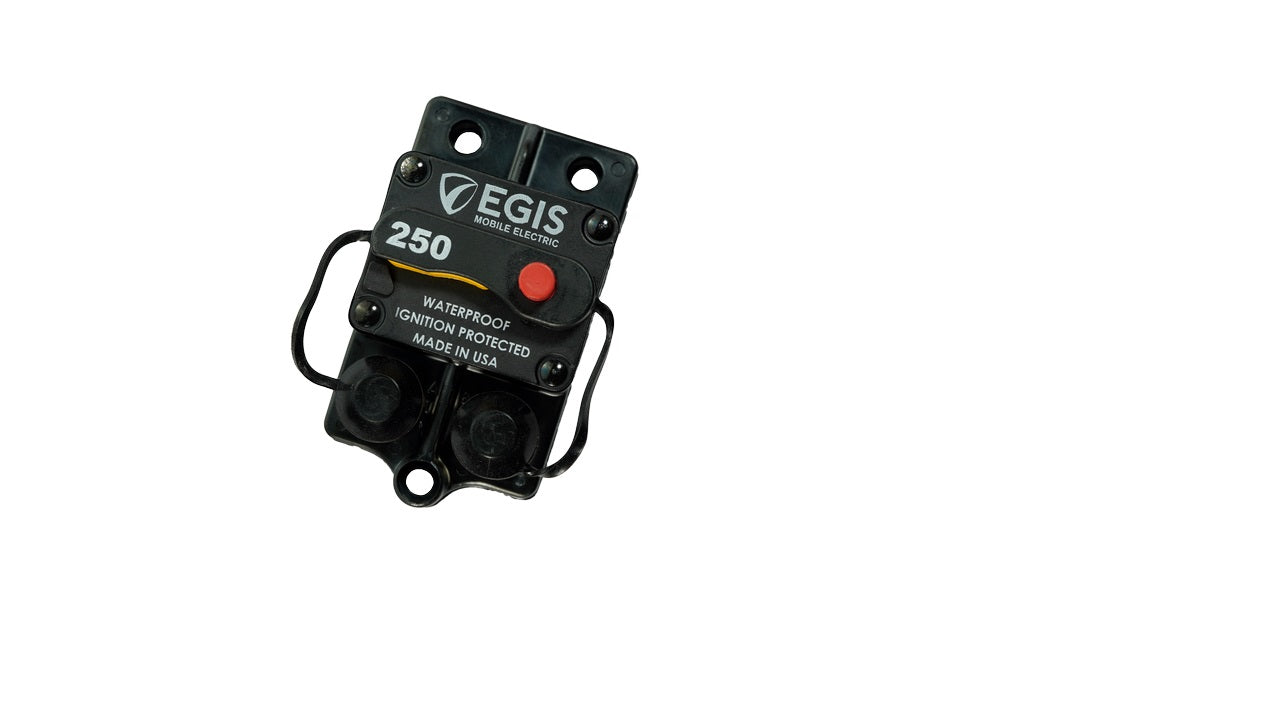

EGIS 285-Series 250 Amp Circuit Breaker Surface Mount

EGIS 285-Series 250 Amp Circuit Breaker Surface Mount

Model: 4709-250

• ON/OFF High Visibility Controls Sealed against dust and moisture penetration. High temp rated for all installation locations.
• Integrated Terminal Insulators Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces.
• Stainless Steel Hardware / Serrated Flange Nuts Corrosion and vibration resistant for harsh environment applications.
• Made in the USA of high quality components.

Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation

High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current

High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power

4 Year Warranty: We stand behind our product's ability to meet your needs.

Specifications

CONTINUOUS CURRENT (AMPS)	250
MAX VOLTAGE (VDC)	30
CYCLING ENDURANCE	6,000
INTERRUPT CURRENT @ 16 VDC (AMPS)	5,000
INTERRUPT CURRENT @ 28 VDC (AMPS)	3,000
INGRESS PROTECTION RATING	IP67

SKU: NVN-1004215
MPN: 4709-250
UPC: 850035199701
