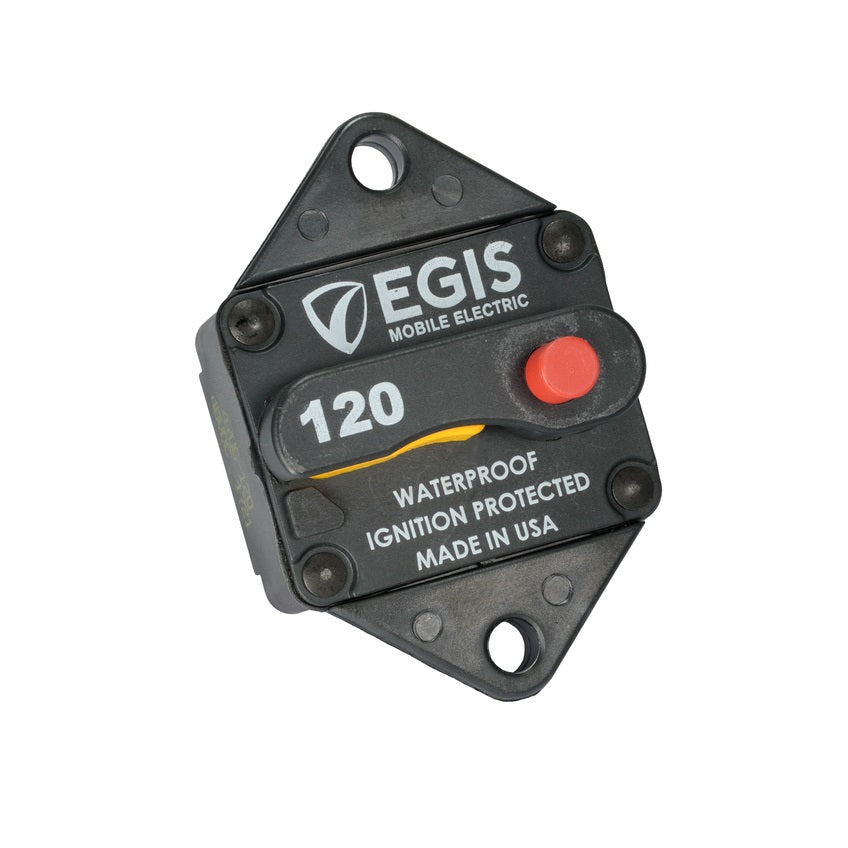

EGIS 285-Series 120 Amp Circuit Breaker Panel Mount
Shipping (3PM)
Within 30 days
EGIS 285-Series 120 Amp Circuit Breaker Panel Mount Product Description
EGIS 285-Series 120 Amp Circuit Breaker Panel Mount
Model: 4706-120- ON/OFF High Visibility Controls Sealed against dust and moisture penetration. High temp rated for all installation locations.
- Panel Mount Flange Provides Rear / Front panel installation options.
- Stainless Steel Hardware / KEPS Locking Nuts Corrosion and vibration resistant for harsh environment applications.
- Made in the USA of high quality components.
Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
High Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses.
High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4 Year Warranty: We stand behind our product's ability to meet your needs.
Specifications| CONTINUOUS CURRENT (AMPS) | 120 |
| MAX VOLTAGE (VDC) | 48 |
| CYCLING ENDURANCE | 6,000 |
| INTERRUPT CURRENT @ 16 VDC (AMPS) | 5,000 |
| INTERRUPT CURRENT @ 28 VDC (AMPS) | 3,000 |
| INGRESS PROTECTION RATING | IP67 |
Save $16 when you buy the EGIS 285-Series 120 Amp Circuit Breaker Panel Mount for only $29 from NVN Marine! Same day shipping before 3pm.
EGIS 285-Series 120 Amp Circuit Breaker Panel Mount Technical Specifications
| Type: | |
|---|---|
| Vendor: |
Raritan |
| Weight: |
0.33 lb |
EGIS 285-Series 120 Amp Circuit Breaker Panel Mount User Reviews
EGIS 285-Series 120 Amp Circuit Breaker Panel Mount Shipping & Return
| Shipping Weight: |
0.33 lb |
|---|---|
| Box Sizes: |
1.00 (h) x 1.00 (w) x 1.00 (l) |
| Cubic Feet: |
1.0 |
| Returnable: |
Yes |
| USPS First Class: |
Yes |
| P65: |
Yes |
