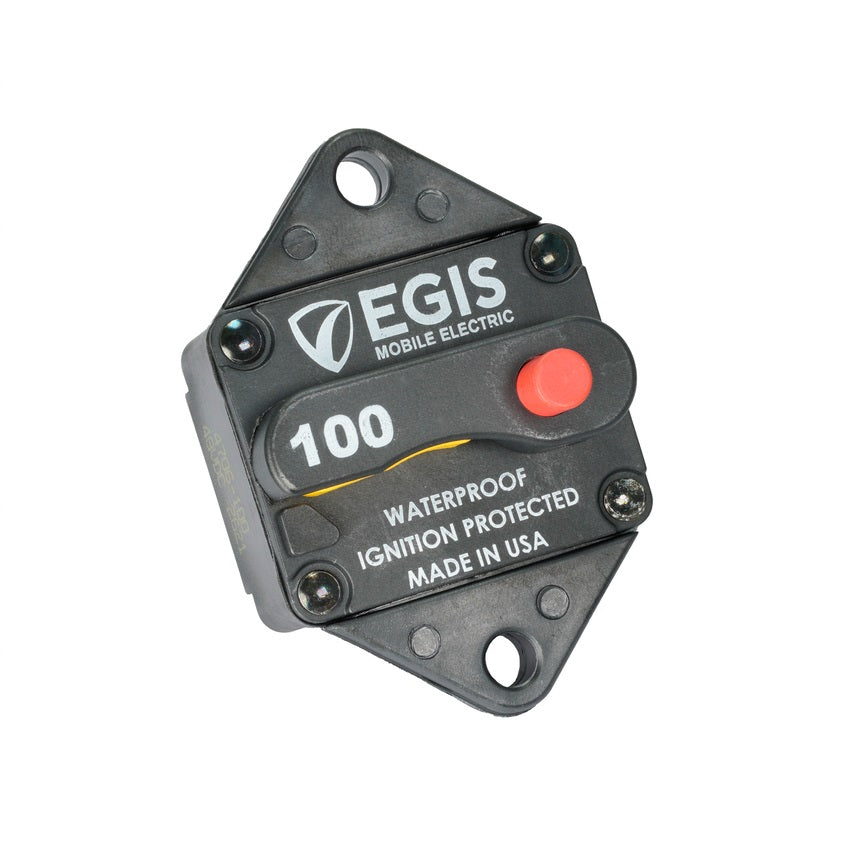

EGIS 285-Series 100 Amp Circuit Breaker Panel Mount

EGIS 285-Series 100 Amp Circuit Breaker Panel Mount

Model: 4706-100

• ON/OFF High Visibility Controls Sealed against dust and moisture penetration. High temp rated for all installation locations.
• Panel Mount Flange Provides Rear / Front panel installation options.
• Stainless Steel Hardware / KEPS Locking Nuts Corrosion and vibration resistant for harsh environment applications.
• Made in the USA of high quality components.

Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation.

High Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses.

High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current.

High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power.

4 Year Warranty: We stand behind our product's ability to meet your needs.

Specifications

CONTINUOUS CURRENT (AMPS)	100
CONTINUOUS CURRENT (AMPS)	48
CYCLING ENDURANCE	6,000
INTERRUPT CURRENT @ 16 VDC (AMPS)	5,000
INTERRUPT CURRENT @ 28 VDC (AMPS)	3,000
INGRESS PROTECTION RATING	IP67

SKU: NVN-1004196
MPN: 4706-100
UPC: 850035199077
