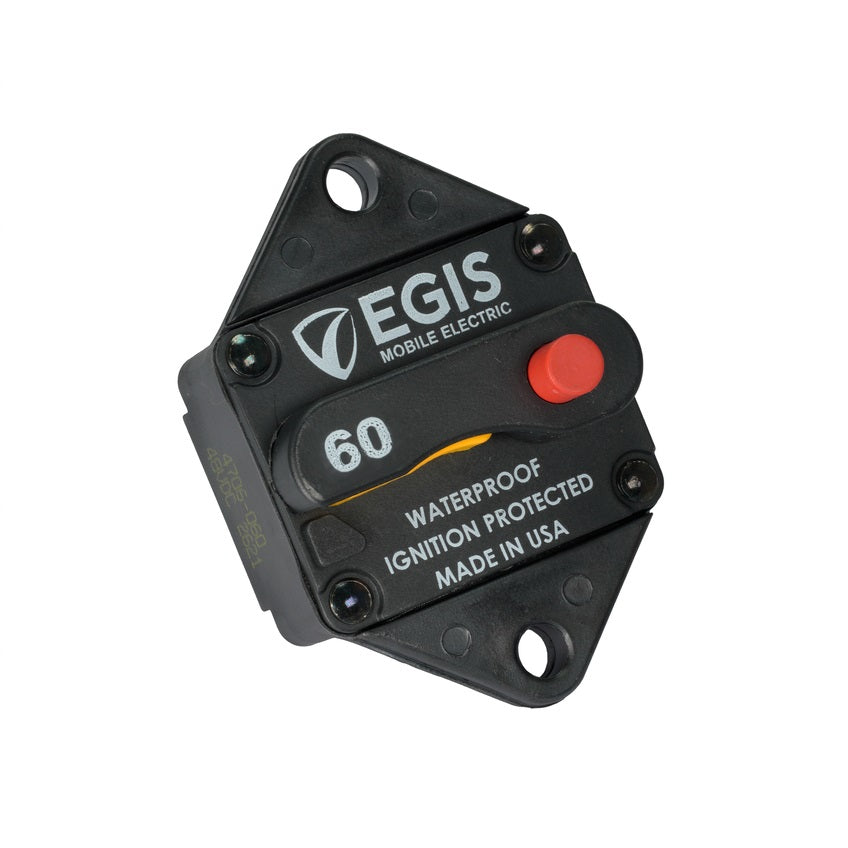

EGIS 285-Series 60 Amp Circuit Breaker Panel Mount

EGIS 285-Series 60 Amp Circuit Breaker Panel Mount

Model: 470-060

• ON/OFF HIGH VISIBILITY CONTROLS Sealed against dust and moisture penetration. High temp rated for all installation locations.
• PANEL MOUNT FLANGE Provides Rear / Front panel installation options.
• STAINLESS HARDWARE / SERRATED FLANGE NUTS Corrosion and vibration resistant for harsh environment applications.

Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation

High Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses.

High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current

High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power

4 Year Warranty: We stand behind our product's ability to meet your needs.

Specifications

CONTINUOUS CURRENT (AMPS)	60
Max Voltage (vdc)	48
cycling ENDURANCE	6,000
Interrupt Current @ 16 Vdc (Amps)	5,000
INTERRUPT CURRENT @ 28 VDC (AMPS)	3,000
ingress protection rating	IP67

SKU: NVN-1004193
MPN: 4706-060
UPC: 850035199046
