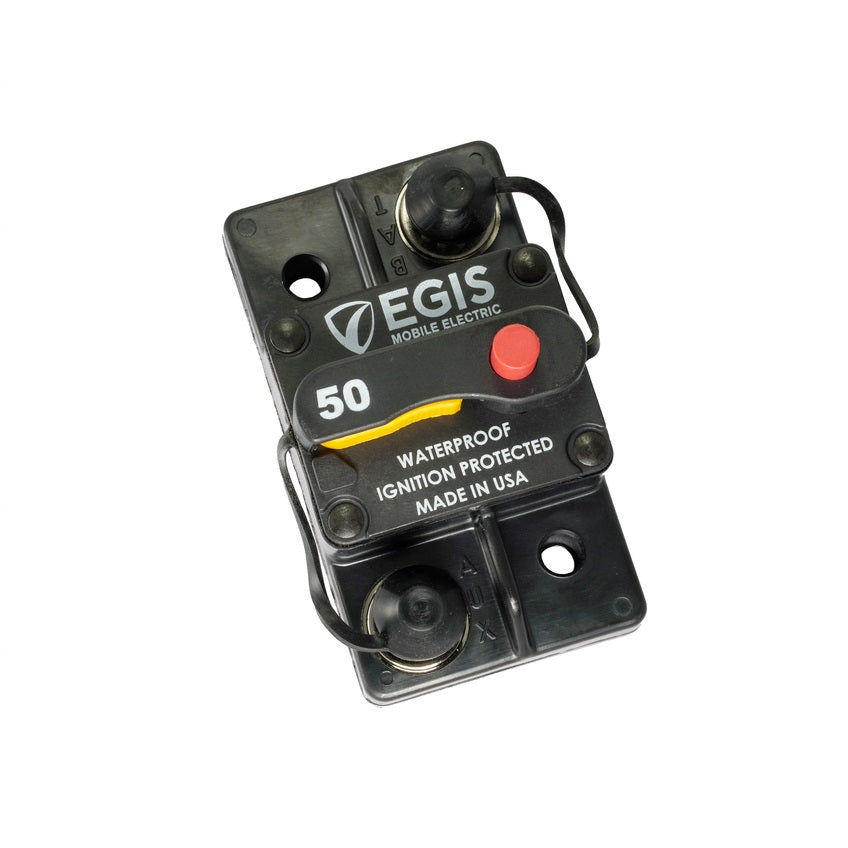

EGIS 285-Series 50 Amp Circuit Breaker Surface Mount

EGIS 285-Series 50 Amp Circuit Breaker Surface Mount

Model: 4703-050

• ON/OFF High Visibility Controls Sealed against dust and moisture penetration. High temp rated for all installation locations.
• Integrated Terminal Insulators Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces.
• Stainless Steel Hardware / Serrated Flange Nuts Corrosion and vibration resistant for harsh environment applications.
• Made in the USA of high quality components.

Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation

High Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses.

High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current

High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power

4 Year Warranty: We stand behind our product's ability to meet your needs.

Specifications

CONTINUOUS CURRENT (AMPS)	50
MAX VOLTAGE (VDC	48888
CYCLING ENDURANCE (6x Rating)	100
INTERRUPT CURRENT @ 14 VDC (AMPS)	3,000
INTERRUPT CURRENT @ 48 VDC (AMPS)	1,500
INGRESS PROTECTION RATING	IP67

SKU: NVN-1004168
MPN: 4703-050
UPC: 850035199138
