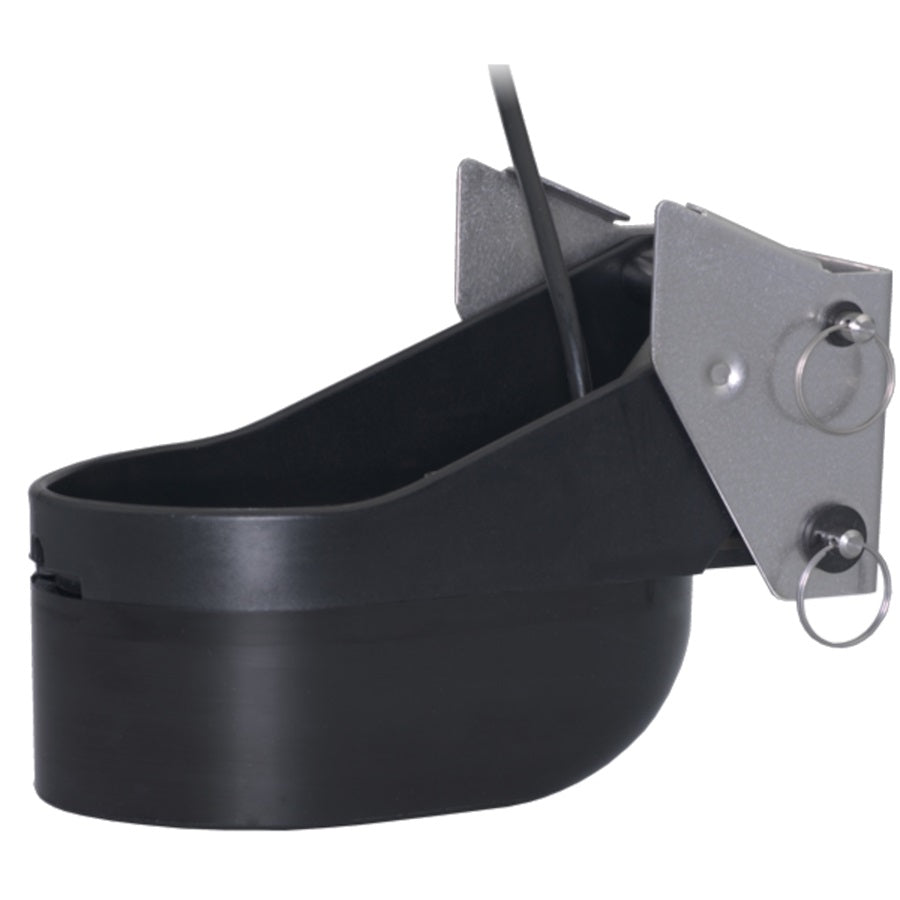

Airmar TM185C Transducer Medium CHIRP Ultra Wide With Bare Wires
Free Ground Shipping (2-6 Days Delivery Time)
Shipping (3PM)
Within 30 days
Airmar TM185C Transducer Medium CHIRP Ultra Wide With Bare Wires Product Description
Airmar TM185MW Medium Ultra-Wide Chirp-ready Transom Mount with MMC-0 Bare Wire MMC Cable
Model: TM185C-MW-0- Depth and fast-response water-temperature sensor
- 1 kW with depth tracking down to 400 m (1,300')
- Medium frequency: 60-100 kHz
- 57° to 73° beamwidth (port/starboard)
- 16° average fore/aft
- 40 kHz of total bandwidth from one transducer
- Medium frequency for superior mid-depth performance and excellent fish-target separation
- Simple installation on transom of the boat
- Great performance at boat speeds below 30 knots
- Easy maintenance and low-cost replacement
- Exclusive Xducer ID® technology
AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready TM185 Medium Ultra-Wide (MW) Transom Mount transducer. The TM185MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column. Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz.
The TM185MW Transom Mount is a 1 kW transducer housed in one of AIRMAR’s most popular housings. Transom models are best suited for small and trailered vessels where a thruhull installation is not practical. Simple to install and ideal for small trailered vessels where a thru-hull may interfere with loading.
Specifications| Power Rating | 1 kW |
| Transom Angle | 2° to 22° |
| Functions | Depth, Temperature |
| Acoustic Window | Urethane |
| Cable-Length | 9 m (30') |
| Freq Med Wide | 60-100 kHz |
| Housing | Urethane/Stainless Bracket |
| Max Depth | 400 m (1300') |
| Medium-Wide Beamwidth | 57° to 73° beam p/s 16° average f/a |
| Mounting Style | Transom |
| Single or Dual Frequency | CHIRP-Ready Single-Band |
| Weight | 4.2 kg (9.2 lb.) |
What's in the Box:
- TM185MW Medium Ultra-Wide Chirp-ready Transom Mount
- MMC-0 Bare Wire MMC Cable
Buy with the best price Airmar TM185C Transducer Medium CHIRP Ultra Wide With Bare Wires for only $1799 from NVN Marine! Same day shipping before 3pm.
Airmar TM185C Transducer Medium CHIRP Ultra Wide With Bare Wires Technical Specifications
| Type: | |
|---|---|
| Vendor: |
Airmar |
| Weight: |
8.2 lb |
