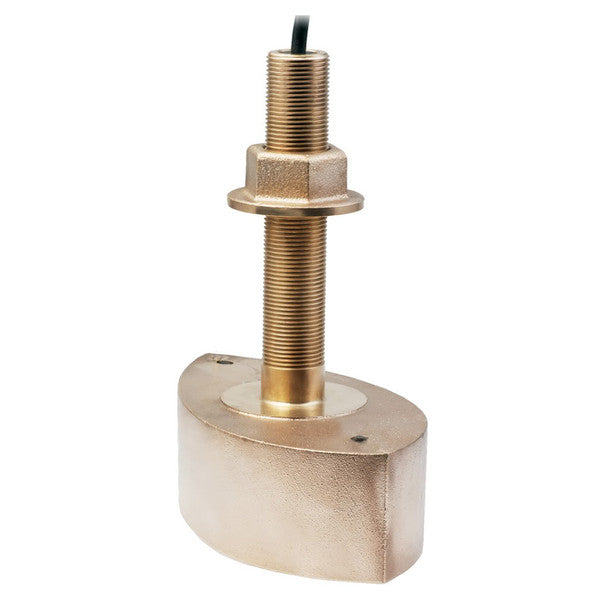

Echonautics CB101D600CW 600w 50/200kHz Bronze Thru-Hull
SKU: 1003688 - UPC: 010407340050 - MPN: CB101D600CW
$166.59
$275.00
( / )
Echonautics CB101D600CW 50/200kHz 600 Watt Bronze Thru-hullModel: CB101D600CWThe cost-effective choice to get target detail in shallow water as well as good deep-water bottom tracking.The CB101D600 is a stem thru-hull dual frequency transducer with 600 watts of power, in a bronze housing.Specifications Function Depth and Temperature Frequency 50/200 kHz Mount type...
Same Day
Shipping (3PM)
Free Returns
Within 30 days
Echonautics CB101D600CW 600w 50/200kHz Bronze Thru-Hull Product Description
Echonautics CB101D600CW 50/200kHz 600 Watt Bronze Thru-hull
Model: CB101D600CWThe cost-effective choice to get target detail in shallow water as well as good deep-water bottom tracking.
The CB101D600 is a stem thru-hull dual frequency transducer with 600 watts of power, in a bronze housing.
Specifications| Function | Depth and Temperature |
| Frequency | 50/200 kHz |
| Mount type | Thru-hull fairing block is optional |
| Deadrise | Max deadrise of 20° with fairing block. |
| Material | Bronze |
| RMS power | 600 watts |
| Beamwidth | 50kHz 42° -3db 200kHz 11° -3db |
| Depth | Max @ 50kHz = 1200 ft Max @ 200kHz = 700 ft |
| Temp sensor | NTC |
What's in the Box:
- CB101D600CW transducer
Save $108 when you buy the Echonautics CB101D600CW 600w 50/200kHz Bronze Thru-Hull for only $166 from NVN Marine! Same day shipping before 3pm.
Echonautics CB101D600CW 600w 50/200kHz Bronze Thru-Hull Technical Specifications
| Type: | |
|---|---|
| Vendor: |
ProMariner |
| Weight: |
3.1 lb |
