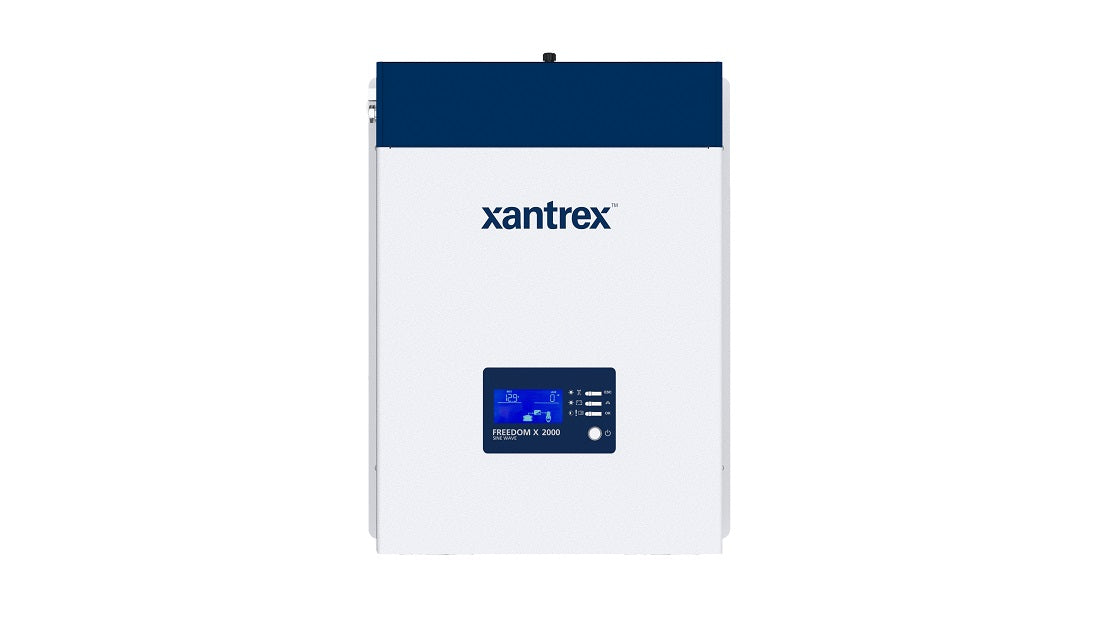

Xantrex Freedom X2000-12 2000W 230V True Sine Wave Inverter
Shipping (3PM)
Within 30 days
Xantrex Freedom X2000-12 2000W 230V True Sine Wave Inverter Product Description
Unlock Reliable Power On the Go with Advanced Inverter Technology
Imagine powering your RV fridge during a remote camping trip, running sensitive electronics on a boat without glitches, or keeping commercial tools humming in a van setup. This powerhouse delivers clean, stable 230V AC power from a 12V battery bank, making it a go-to for off-grid adventurers, marine enthusiasts, and mobile pros who demand unwavering performance.
Crafted for real-world demands, it stands out with its ability to handle tough loads effortlessly. From surging past motor startups to seamless switching between sources, every feature is engineered to minimize downtime and maximize efficiency in unpredictable environments.
Standout Features That Deliver Real Results
- Monster Surge Capacity: Doubles continuous power for over two seconds, effortlessly kickstarting fridges, microwaves, or air conditioners that typical inverters choke on.
- Pure Sine Wave Output: Mimics grid power perfectly, safeguarding laptops, medical devices, and audio gear from damage or noise—essential for sensitive setups.
- Smart Ignition Control: Links to your vehicle's ignition for automatic on/off, slashing idle battery drain during drives or storage.
- Robust Voltage Tolerance: Operates smoothly from 10-17V DC, handling voltage swings from alternators in modern vehicles without hiccups.
- Adaptive AC Protection: Customizable shutdown thresholds protect gear under fluctuating shore or generator power, preventing overloads.
- Integrated 30A Transfer Switch: Auto-detects external AC and flips loads instantly—no manual intervention needed for hybrid power systems.
Performance You Can Count On, Anywhere
Tested to crank full output from freezing -20°C to scorching 40°C, it thrives in extreme climates—think Australian outback summers or European winters. With 91% peak efficiency, it squeezes every amp from your batteries, extending runtime on solar or alternator setups. Full-load efficiency over 87.5% means less heat, quieter operation, and longer life for demanding continuous use.
In marine applications, its drip-shield compatibility (with add-ons) and wide pass-through range (170-280V) ensure safe, reliable bridging to shore power. For RVs and trucks, quick-connect AC terminals slash install time, while Bluetooth monitoring (via optional panel) lets you track status from your phone—voltage, load, faults, all at a glance.
Effortless Setup for DIY Enthusiasts
Compact at just 370x275x100mm and 7.2kg, it slots into tight spaces like under seats or battery compartments. DC shunt-ready terminals accept heavy-gauge cables with included bushings and lugs for secure, vibration-proof connections. Bond it to your chassis ground easily, and you're powered up. Pro tip: Pair with deep-cycle batteries and a smart charger for peak longevity in mobile systems.
Built to Last: Regulatory Assurance
Meets stringent CE standards for safety, EMC, and RoHS—proven in automotive, marine, and harsh environments. Humidity-proof up to 95% RH, it shrugs off condensation in boats or trucks.
Detailed Specifications at a Glance
| Specification | Details |
|---|---|
| AC Output Voltage | 220/230/240V |
| Continuous Power | 2000W @ 40°C (True Sine Wave) |
| Surge Power | 4000W (>2 sec) |
| DC Input Range | 10-17V |
| Peak Efficiency | 91% |
| Dimensions (LxWxH no flanges) | 370 x 275 x 100 mm |
| Weight | 7.2 kg |
What's Included for Quick Start
- The inverter unit itself
- Comprehensive documentation
- Plastic bushings for secure DC cabling
- Pre-installed DC earth lug
- Bonding screw
Frequently Asked Questions
What makes true sine wave output better for my appliances?
True sine wave provides smooth, grid-like power that prevents humming, overheating, or failure in sensitive devices like TVs, computers, and motors—unlike modified sine wave which can cause issues.
Can this inverter handle starting a microwave or fridge?
Yes, its 4000W surge for over 2 seconds easily manages compressor startups, delivering reliable performance where others falter.
How does the transfer relay work?
It automatically detects incoming AC from shore or generator (up to 30A) and switches your loads seamlessly, eliminating the need for separate transfer switches.
Is it suitable for marine or RV use in extreme weather?
Absolutely—rated for -20°C to 60°C operation (derated above 40°C), high humidity, and compliant with marine drip-shield setups for wet environments.
What battery size do I need for full performance?
At full 2000W load, it draws about 192A DC. Opt for at least 400Ah deep-cycle batteries with thick cables to minimize voltage drop and heat.
Does it protect against low voltage?
Yes, programmable AC under-voltage shutdown (170-220V) safeguards connected gear during weak external power, with wide 10-17V DC input for stable inverting.
Can I monitor it remotely?
With the optional Bluetooth remote panel, configure settings and track real-time performance like battery voltage, output power, and alerts via app.
Xantrex Freedom X 2000 230v 2000W Inverter
Model: 817-2000-12- Extended Surge Rating: Surges to 2X continuous power for at least 2 seconds for motor loads
- True Sine Wave AC Power: For operation of sensitive and motor loads
- Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
- Wide 10-17 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
- Programmable AC Under-Voltage (170-220V) Shutdown: Feature ideal to operate under weak shore power or generator input
- Built in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power
True sine wave 120 Vac inverter with built-in transfer switch. Designed for recreational and commercial applications.. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel (# 808-0817-02)
The Freedom X inverter offers premium performance in a lightweight compact package. It cranks out full output from -20°C - 40°C for operation in all climate temperatures. The extended surge rating of the Freedom X makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.
Specifications| ELECTRICAL SPECS - INVERTER | |
| AC Output Operating Voltage Options | 220/230/240V |
| Continuous Output Power | Continuous Power 2000 W @40 C True sine wave (TSW) |
| Continuous AC Output Current | 8.3 A |
| Surge Power | 4000 W (> 2 sec) |
| Frequency (Configurable) | 50 Hz (or 60 Hz) |
| DC Input Operating voltage range | 10.0 - 17.0 V |
| DC Input Max Non-Operating Voltage | 25.2 V |
| DC Input Nominal Voltage (inverting) | 12.0 V |
| DC Nominal Current at Full Load | 192 A |
| Peak Efficiency | 91% |
| Full Load Efficiency | > 87.5% |
| GENERAL SPECS | |
| Operating Temperature Range | -20 to 60 C, with output derated above 40 °C |
| Storage Temperature Range | -40 to 70 C |
| Operating Humidity Range | 5 to 95% RH, non-condensing |
| Operating Input AC Pass-Through Voltage Range | 170-280V |
| Safe Non-Operating Input AC Voltage Range | Up to 300V |
| Transfer Relay AC Current Rating | 30 A , 24 A continous |
| L x W x H (without flanges) | 370 mm x 275 mm x 100 mm |
| L x W x H (with flanges) | 370 mm x 305 mm x 100 mm |
| Net Weight | 7.2 kgs |
| REGULATORY APPROVALS | |
| Safety | CE Marking, Low Voltage Directive Compliant (Marine installations, drip shield, 808-1050) |
| EMC | CE Marking, EMC Directive and Automotive EMC - Regulation 10 R-06 Compliant |
| Environmental | CE Marking, RoHS Directive Compliant |
What's in the Box:
- Freedom X 2000 230v
- Documentation
- one set of plastic bushings for large DC cables
- one pre-installed DC earth enclosure lug (not shown)
- one bonding screw
