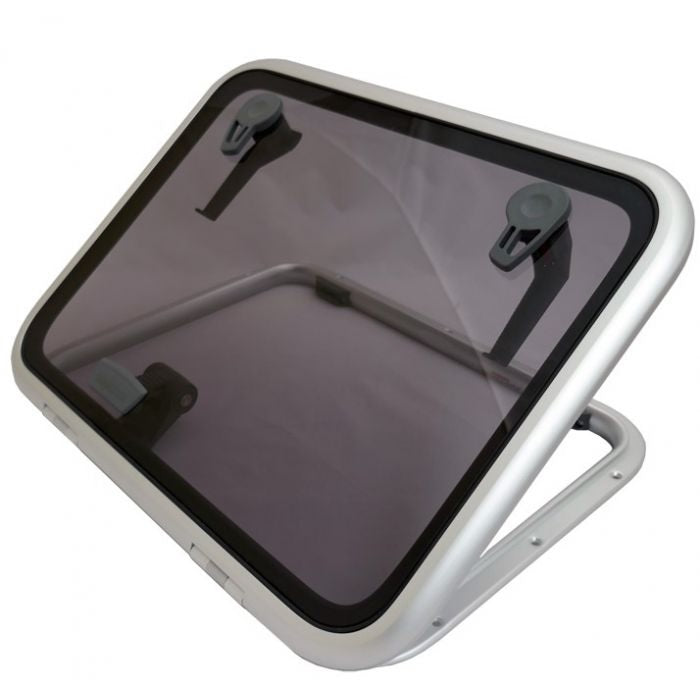

Lewmar Size 50 Low Profile Hatch Flange Base
SKU: 1002135 - UPC: 743683107184 - MPN: 39950030
$492.79
$657.49
( / )
Support System Lower Frame (in) Acrylic Colour Hatch Weight (lb) Acrylic Window Thickness (in) Self Supporting 9/16 Smoke Grey 10.6 5/16 Dimensions Length X (in) Width Y (in) Height Z (in) Radii R (in) Cut-Out Length X1 (in) Cut-Out Width Y1 (in) Cut-Out Radii R1 (in) 17 5/8 22 11/16...
Same Day
Shipping (3PM)
Free Returns
Within 30 days
Lewmar Size 50 Low Profile Hatch Flange Base Product Description
| Support System | Lower Frame (in) | Acrylic Colour | Hatch Weight (lb) | Acrylic Window Thickness (in) |
| Self Supporting | 9/16 | Smoke Grey | 10.6 | 5/16 |
Dimensions
| Length X (in) | Width Y (in) | Height Z (in) | Radii R (in) | Cut-Out Length X1 (in) | Cut-Out Width Y1 (in) | Cut-Out Radii R1 (in) |
| 17 5/8 | 22 11/16 | 1 | 2 7/8 | 14 13/16 | 19 15/16 | 1 11/16 |
Mounting Instructions
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use M6 (1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
Lewmar size 50 short hatch new product #39950030 Lewmar size 50 low hatch has a soft shape and a sleek appearance, which is very suitable for use on speedboats. The smaller vent is suitable for any deck position on the sailboat, while the larger vent can be used as the fore deck hatch of small and medium yachts.
Frequently Asked Questions (FAQ) About Lewmar Size 50 Low Profile Hatch Flange Base
Who is the Lewmar?How to describe Lewmar Size 50 Low Profile Hatch Flange Base?
What is the highlights of Lewmar Size 50 Low Profile Hatch Flange Base?
Who is the Lewmar?
Since 1946, Lewmar has dedicated itself to making spending time on the water as easy and stress-free as possible; designing and manufacturing innovative and reliable products of the highest quality.
With a portfolio of hardware, winches, hydraulics, windlasses, anchors, thrusters, steering systems, hatches and portlights to suit every boat from the smallest day fisher to largest mega-yacht, Lewmar can supply a complete solution whatever your project and requirements.
How to describe Lewmar Size 50 Low Profile Hatch Flange Base?
Lewmar size 50 short hatch new product #39950030 Lewmar size 50 low hatch has a soft shape and a sleek appearance, which is very suitable for use on speedboats. The smaller vent is suitable for any deck position on the sailboat, while the larger vent can be used as the fore deck hatch of small and medium yachts.
What is the highlights of Lewmar Size 50 Low Profile Hatch Flange Base?
Save $164 when you buy the Lewmar Size 50 Low Profile Hatch Flange Base for only $492 from NVN Marine! Same day shipping before 3pm.
Lewmar Size 50 Low Profile Hatch Flange Base Technical Specifications
| Type: | |
|---|---|
| Vendor: |
Lewmar |
| Weight: |
12.0 lb |
Lewmar Size 50 Low Profile Hatch Flange Base User Reviews
Lewmar Size 50 Low Profile Hatch Flange Base Shipping & Return
| Shipping Weight: |
12.0 lb |
|---|---|
| Box Sizes: |
1.00 (h) x 1.00 (w) x 1.00 (l) |
| Cubic Feet: |
1.0 |
| Returnable: |
Yes |
| USPS First Class: |
Yes |
| P65: |
Yes |
| Truck Delivery: |
Yes |
For detailed shipping policy please check our Shipping Policy and you can find our Return and Refund Policy here.
