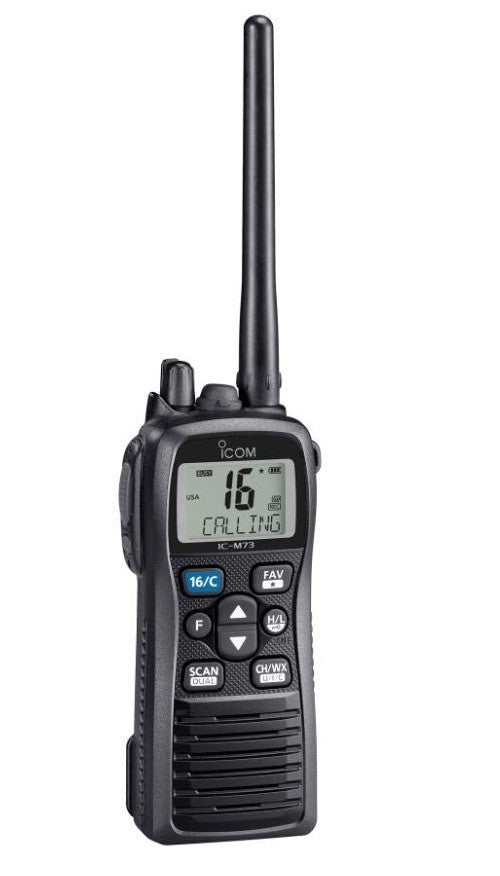

Icom M73 Hand Held VHF

Icom M73 Hand Held VHF Product Description

Slim, hourglass body and wide viewing angle LCD
The IC-M73 has a stylish, ergonomic design. A durable and rugged body provides for user-friendly operation and long life. A wide viewing angle, high intensity LCD offers bright, easy to read characters.

IPX8 Submersible Plus™
The IC-M73 continues to offer Icom's best waterproof protection. The radio has been tested to survive after being submersed in 1.5m (4.9ft) depth of water for 30 minutes.

700mW Loud audio
The IC-M73 uses a BTL (bridge-tied load) amplifier that doubles the audio output. Its internal speaker delivers a loud 700mW audio output with clear sound.

6W RF Output power
The IC-M73's 6 Watts of transmit power will provide extended communication range for the user. A large capacity Lithium-Ion battery allows for 16 hours of operation, under normal conditions*. * Typical operation with 5:5:90 duty ratio. 18 hours for basic version.

Specifications

General
Frequency Range   Tx   Rx	156.025-157.425MHz 156.050-163.275MHz
Usable channel groups	INT, USA, CAN, WX channels
Type of emission	16K0G3E (FM)
Current drain (at 7.4V DC)   Tx (at 6W output)   Rx (Max. audio (Int SP/Ext SP)	1.5A typical 450mA/250mA
Operating temperature range	-20°C to +60°C; -4°F to +140°F
Antenna Impedance	50Ω (STUD)
Dimensions (WXHXD) (Projections not included)	52.5X125X30 mm 2.07X4.92X1.18 in
Weight (approx.)	320g; 11.3oz (With BP-245N, FA-S64V, MB-103)

Transmitter
Output power (Hi/Low)	6W/3W/1W
Max. frequency deviation	± 5.0 kHz
Frequency error	±10ppm
Audio harmonic distortion	Less than 10% (at 60% dev.)
Spurious emissions	-68dBc
Adjacent channel power	70dB
Audio harmonic distortion	Less than 10% (at 60% dev.)
Residual modulation	40dB

Receiver
Sensitivity	0.22μV typ. (at 12dB SINAD)
Squelch sensitivity	0.35 V typ. (at threshold)
Adjacent Channel Selectivity	70dB typical
Spurious response	70dB typical
Intermodulation	70dB typical
Hum and noise ratio	40dB typical
Audio output power   Internal speaker External speaker	700mW typ. (at 10% distortion, 8Ω load) 350mW typ. (at 10% distortion, 8Ω load)



COMES WITH

• Cigarette lighter cable (CP25H)
• AC adapter (BC123SA)
• Rapid charger (BC210)
• Battery pack (BP245N)
• Belt clip (MB103)
• Antenna (FAS64V)
• Hand strap
• Owner's manual
• Warranty: 3 years

"The M73 is perfect for the commercial marine market and radio users familiar with Icom's celebrated M72 VHF handheld. The M73 features 6 Watts of high transmit power and waterproof Ipx8 Submersible construction. The M73 also promotes the popular hourglass body shape and comfortable side grips for intuitive one-handed operation. The M73 also features loud 700m W audio output and approximately 18 hours of operating time. Utilizing an interface design with large directional buttons, users gain fast access to menu items and radio functions. The compact radios are rigorously tested for durability and meet Mil-Std 810 specifications. The M73 offers reliable audio, rugged construction and easy operation -- perfect for professional mariners and current M72 radio users. It is compatible with most M72 handheld accessories and will include other accessories as well."

Save $115 when you buy the Icom M73 Hand Held VHF for only $199 from NVN Marine! Same day shipping before 3pm.
