Airmar SS175C-20-H 20d Tilt High CHIRP with Navico BL

Airmar SS175C-20-H 20d Tilt High CHIRP with Navico BL Product Description

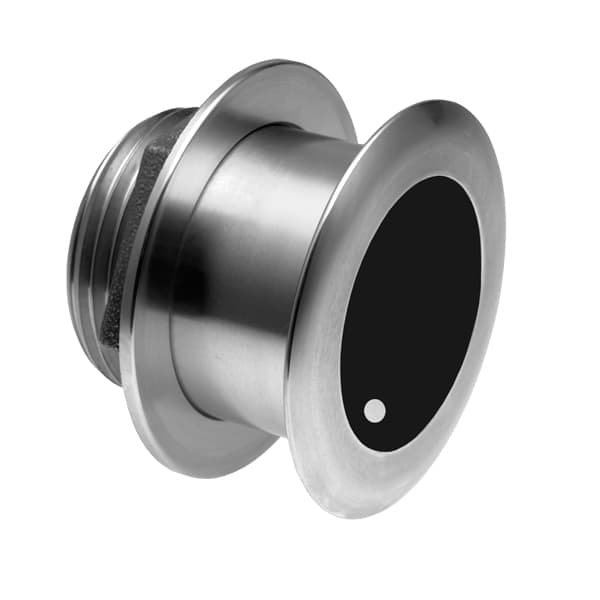

Airmar SS175C-20-H 20d Tilt

High CHIRP Si-Tex 8-Pin

Model: SS175C-20-H

• Depth and fast-response water-temperature sensor
• 1 kW with a maximum depth of 304 m (1000')
• High Frequency: 130 kHz to 210 kHz 10° to 6° beamwidth
• 80 kHz of total bandwidth from one transducer
• High frequency provides superior shallow water performance, bottom detail and fish target separation
• Recommended boat size: Up to 11 m (36')
• Stainless steel housing is compatible with all hull types and materials
• Also available in a bronze housing (B175H) model
• Exclusive Xducer ID® technology

Airmar’s low profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low frequency band is the deep water performer delivering excellent coverage and tracking in deeper depths. The SS175L transducer delivers up to 20 kHz of total bandwidth in just one installation and delivers tremendous deep water performance.

Tilted element transducers have the ceramic element fixed at either a 20°, 12° or 0° angle within the transducer housing. The transducer is installed almost flush to the hull and the tilted element corrects for the hull deadrise by orienting the beam directly down. This assures maximum echo returns to the transducer and more accurate depth readings.

Specifications

Weight	2.7 kg (6 lb)
Hull Deadrise	Up to 24°
Acoustic Window	Urethane
Hole Size	98 mm (3-7/8"")
One internal ceramic assembly

Model: SS175C-20-H depth and fast response water temperature sensor 1 kW, maximum depth of 304 m (1000') High frequency: 130 k-Hz to 210 k-Hz 10° to 6° beam width 80 of the total bandwidth of a single sensor K-Hz high frequency can provide excellent shallow water performance, bottom details and fish target separation Recommended hull size: maximum 11 m (36') stainless steel shell compatible with all hull types and materials Bronze shell (B175H) model exclusive Xducer ID technology Airmar's low-profile Chirp-ready sensor model is the perfect complement to small boats such as the center console. The low frequency band is for deep-water performers, providing excellent coverage and tracking at deeper depths. The SS175L sensor can provide up to 20 k-Hz total bandwidth with only one installation and has excellent deep water performance. The ceramic element of the tilt transducer is fixed in the transducer housing at an angle of 20°, 12° or 0°. The transducer is installed almost flush with the hull, and the tilting element corrects the dead angle of the hull by directly directing the beam downward. This ensures that the greatest degree of echo is returned to the transducer and a more accurate depth reading is obtained. -Specification weight 2.7 kg (6 lbs) heavy hull-Soundproof windows up to 24°-Urethane hole size 98 mm (3-7/8 inch") One internal ceramic component

Save $676 when you buy the Airmar SS175C-20-H 20d Tilt High CHIRP with Navico BL for only $943 from NVN Marine! Same day shipping before 3pm.
