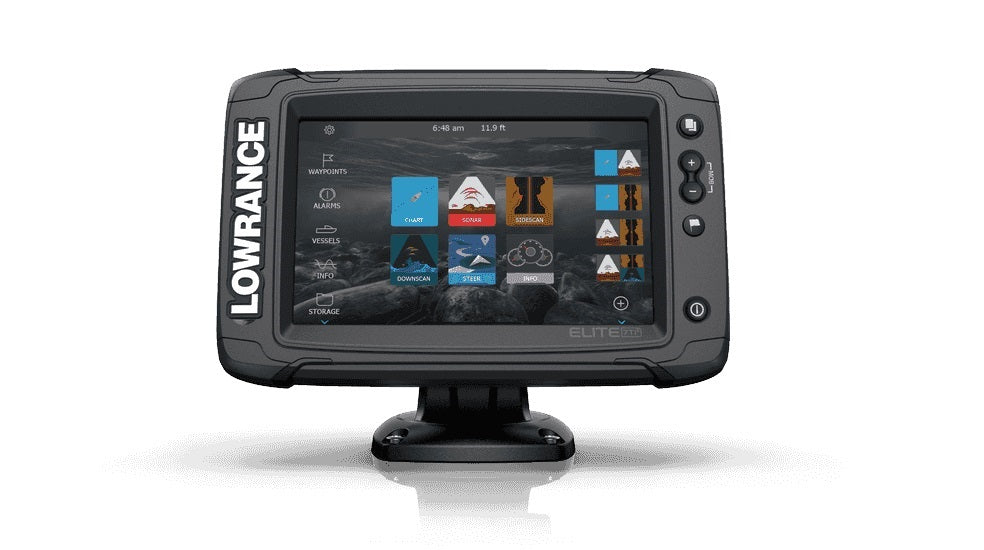

Lowrance ELITE7 Ti2 Combo USA/Canada Navionics Nav+ HDI Transducer
Lowrance ELITE7 Ti2 Combo USA/Canada Navionics Nav+ HDI Transducer — Product description
Discover the Power of Advanced Fishing Technology
Imagine heading out on the water with a compact yet powerful tool that reveals hidden fish structures, marks precise waypoints, and charts your course with stunning clarity. The Lowrance Elite 7 Ti2 Combo brings premium sonar imaging and navigation right to your fingertips, perfect for serious anglers chasing bass in shallow lakes or tracking walleye in deeper Canadian waters. Its intuitive touchscreen interface and wireless features make it feel like an extension of your instincts, helping you spend less time fiddling with settings and more time reeling in the catch.
What sets this unit apart is the seamless blend of Active Imaging sonar with FishReveal technology, overlaying fish icons directly on high-definition sonar returns. No more guessing—see fish and structure simultaneously. Paired with preloaded Navionics+ charts for USA and Canada, it covers thousands of lakes, rivers, and coastal areas with detailed bathymetry and SmartDepth contours.
Crystal-Clear Sonar That Finds Fish Faster
Dive into the details with Active Imaging 3-in-1, delivering DownScan Imaging at 455 kHz up to 300 feet below and SideScan up to 300 feet to each side. This isn't basic sonar; it's like having underwater eyes that paint a vivid picture of drop-offs, weed beds, and submerged timber where big fish hide.
- FishReveal Smart Mode: Automatically highlights fish arches on CHIRP sonar while preserving structure details—ideal for quick target identification during peak bite times.
- Genesis Live Mapping: Create your own custom charts in real-time as you explore new spots, overlaying bottom hardness and vegetation data.
- HDI Transducer Included: Provides reliable 83/200 kHz CHIRP sonar alongside DownScan, ensuring versatility from shallow bays to mid-depth haunts.
Anglers report spotting schools of crappie they never knew existed, turning slow days into limits. Depth and shallow alarms keep you safe, while water temperature readings help time your bites perfectly.
Stay Connected On and Off the Water
Wireless networking lets you share waypoints and routes with other Elite units or Link units effortlessly. NMEA 0183 and NMEA 2000 compatibility integrates with trolling motors, autopilots, and more. Smartphone notifications ensure you never miss a call or alert while focused on the screen.
Compact dimensions (5.6" H x 18.6" W x 3.5" D) fit flush in small consoles, with IPX6/IPX7 waterproofing shrugging off rain, spray, and splashes.
Technical Specifications at a Glance
| Feature | Details |
|---|---|
| Display Size | 7" / 178 mm diagonal |
| Resolution | 800 x 480 pixels |
| Backlighting | LED, sunlight-viewable |
| Power Consumption | 0.9A at 13V DC (12W max) |
| Power Output | 500W RMS maximum |
| GPS Waypoints | 3,000 |
| Routes/Trails | 100 routes / 100 trails (10,000 pts each) |
| Transducer | HDI Skimmer, 9-pin connector (adapters available) |
| Networking | Wireless, NMEA 0183, NMEA 2000 |
| Waterproof Rating | IPX6 & IPX7 |
Pro Tips to Maximize Your Elite 7 Ti2
- Pair with a Ghost trolling motor for brushless precision and shared sonar data.
- Customize split-screen views: CHIRP full left, SideScan center, DownScan right for ultimate coverage.
- Enable AutoChart Live during practice runs to build private maps for tournament edges.
- Mount high on the transom for optimal HDI transducer performance, avoiding cavitation.
Whether you're a weekend warrior or competitive pro, this combo elevates your game without complexity.
Frequently Asked Questions
Does the Lowrance Elite 7 Ti2 support real-time mapping?
Yes, built-in Genesis Live allows on-the-water custom mapping with bottom hardness, vegetation, and depth shading as you motor along.
What charts come preloaded on this model?
Navionics+ charts for USA and Canada, featuring high-detail lake and coastal coverage with SmartDepth technology.
Is the HDI transducer suitable for saltwater use?
Absolutely, the rugged HDI design handles brackish and saltwater environments, with corrosion-resistant materials for longevity.
Can I connect this to my smartphone?
Wireless connectivity provides smartphone notifications and easy software updates via the Lowrance app.
How deep does the Active Imaging work?
DownScan and SideScan at 455 kHz reach up to 300 feet, depending on water conditions and bottom type.
Does it support multiple transducers?
Yes, 9-pin connector works with various Lowrance and Airmar options via adapters for CHIRP, Active Imaging, or TotalScan.
What's the GPS accuracy like?
Internal 10Hz antenna with WAAS/EGNOS/MSAS delivers sub-10-meter accuracy, reliable even in challenging areas.
Lowrance Elite7 Ti2
Model: 00014635001The Elite-7 Ti US/Canada Nav+ and HDI Transducer HDI offers popular premium features — like an easy-to-use touchscreen, Active Imaging™ sonar, FishReveal™, wireless networking, built-in Genesis Live real-time map creation, wireless connectivity and smartphone notifications — all at a more affordable price than other fishfinder/chartplotters in its category
Specifications| Size | 7"/ 178 mm |
| Resolution | 800W x 480H |
| Backlighting | LED |
| Media Port | 1 microSD slot |
| Power Supply Voltage | 12 V DC (10-17 V DC min-max) |
| Current Draw | 12 W (0.9 A @ 13 vDC) |
| Product Width | 18.6"/ 218 mm |
| Product Depth | 3.5"/ 64 mm |
| Product Height | 5.6"/ 142 mm |
| Power Output | Max 500W RMS |
| Active Imaging 3-in-1 | DownScan Imaging™ at 455 kHz: Max 300 ft / 91 m: SideScan Imaging at 455kHz: Max 300 ft./91 m to each side |
| Depth Alarm | Yes |
| Shallow Alarm | Yes |
| Temperature Readings | Yes |
| Transducer Type | 9-pin Connection, with optional 9-pin to 7-pin adapter; Multiple Selections Lowrance® and Airmar® |
| Routes | 100 |
| Waypoint Storage | 3000 |
| Plot Trails | Up to 100 trails with up to 10,000 points per trail |
| GPS Antenna Type | 10kHz Internal high-sensitivity WAAS/EGNOS/MSAS |
| GPS Alarms | Yes |
| Custom Mapping | Optional Americas chart upgrades include C-MAP Insight PRO, C-MAP Lake Insight HD, C-MAP MAX-N, Navionics® HotMaps® Premium, Navionics + and Fishing Hotspots® PRO. |
| Networking | NMEA 0183 and NMEA 2000® |
| Waterproof Standard/Rating | IPx6 and IPx7 |
"The Elite Ti packs Active Imaging, Lowrance's highest quality sonar ever, FishReveal, built-in Genesis Live real-time mapping and enhanced screen clarity and target separation. Plus, with features that make your life easier on the water, like an easy-to-use touchscreen, wireless networking, smartphone notifications and trolling motor\/Power Pole integration - Elite Ti was designed to help you have an easier time finding fish."
SKU: NVN-1000945
MPN: 000-14635-001
UPC: 9420024175224
Technical specifications
| Brand | Lowrance |
| Model | Lowrance ELITE7 Ti2 Combo USA/Canada Navionics Nav+ HDI Transducer |
| SKU / MFR# | 1000945 |
