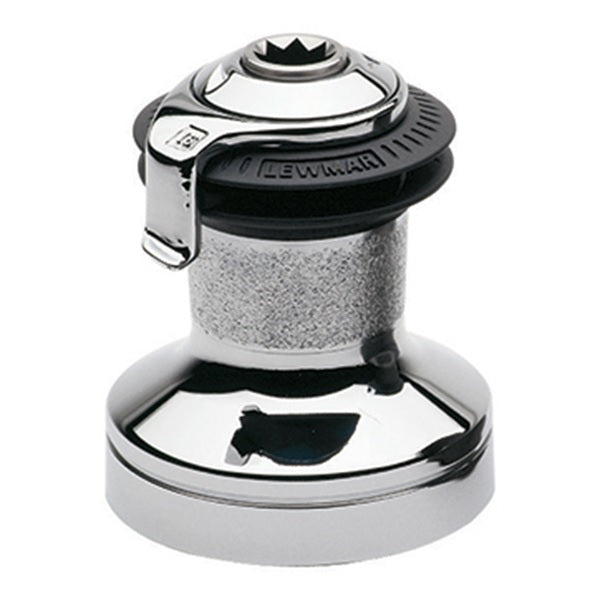

Lewmar 16CST Single Speed Self Tailing Chrome Winch

Lewmar 16CST Single Speed Self Tailing Chrome Winch Product Description

The Lewmar 'Wavespring' self-tailer combines their renowned and gentle wave grip feature with self adjusting springs. It handles today's smaller diameters, as well as the traditional larger Dacron composite ropes. A sleek, minimum-friction feeder arm provides absolute snag-free operation.

Mounting Instructions 5 x M6 (1/4 in) c'sk head screws on 94mm (3 11/16 in) PCD. Lewmar recommends that the rope enters onto the drum at an angle of 5 to 10 to the base axis of the winch. To achieve this angle it may be necessary to use a base wedge when installing the winch. This product is Made to Order.

Specifications

Gear Ratio Power Ratio Weight(lb) 2:1 15.8:1 8.6

Dimensions

Drum Diameter D(in) Base Diameter B(in) Height H(in) Line Entry L(in) Line Size(in) 2 9/16 4 3/4 5 3/4 2 5/16 5/16-1/2



Lewmar's "Wave Spring" automatic sizing combines its famous soft wave grip function with an automatic adjustment spring. It can handle today's smaller diameters, as well as traditional larger Dacron composite ropes. The smooth, minimal friction paper feed arm provides absolutely unobstructed operation. Installation instructions Install 5 x M6 (1/4 inch) C-head screws on the 94mm (3 11/16 inch) PCD. Lewmar recommends that the rope enter the drum at an angle of 5 to 10 relative to the base shaft of the winch. In order to obtain this angle, it may be necessary to use a foundation wedge when installing the winch.



Save $217 when you buy the Lewmar 16CST Single Speed Self Tailing Chrome Winch for only $818 from NVN Marine! Same day shipping before 3pm.
