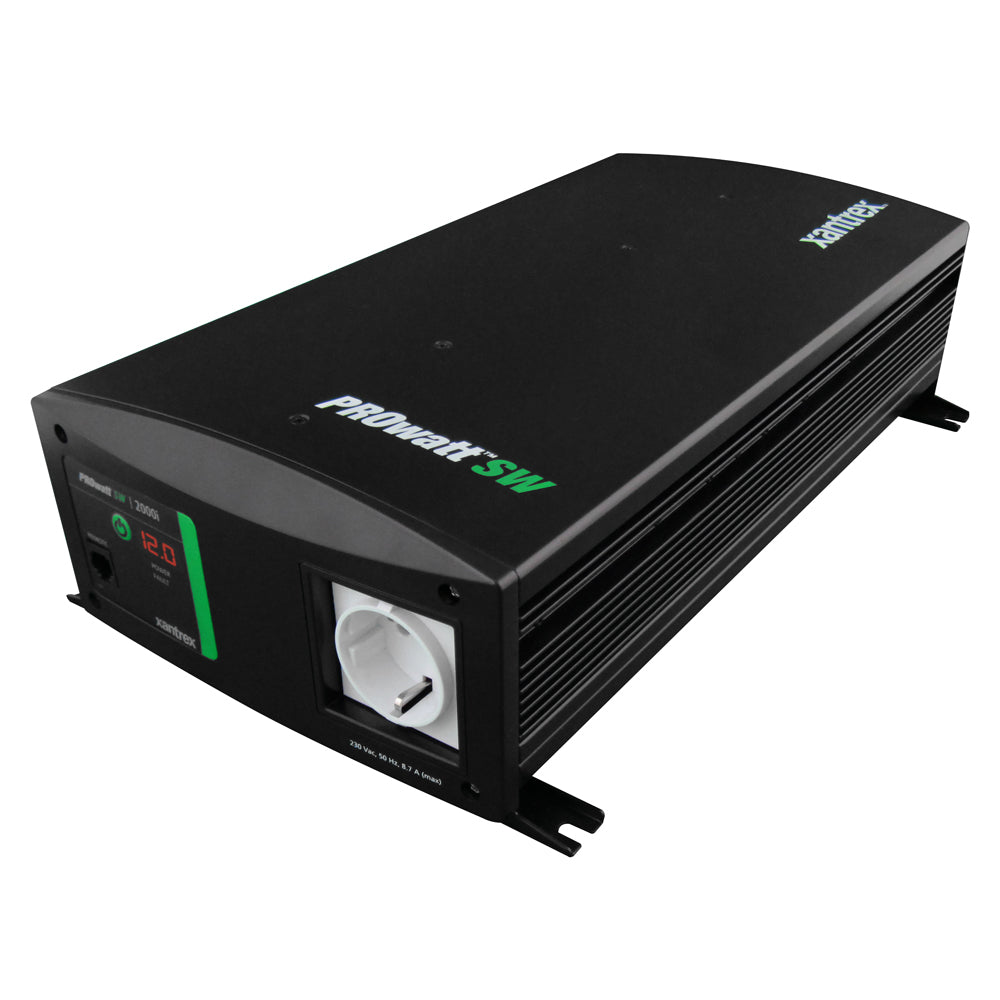

Xantrex PROwatt SW 700I 12VDC 230VAC 700W True Sinewave Inverter
Xantrex PROwatt SW 700I 12VDC 230VAC 700W True Sinewave Inverter — Product description
Why Choose the PROwatt SW 700I for Your Power Needs?
Imagine powering your sensitive electronics, kitchen appliances, or power tools far from the grid—whether you're on a long-haul trucking route, weekend RV getaway, or offshore marine adventure. This true sine wave inverter transforms your 12V DC battery into reliable 230V AC household power, delivering 700 watts continuously and surging up to 1400 watts for those demanding startup moments. Unlike modified sine wave options, its pure sine wave output ensures smooth operation for everything from laptops and TVs to microwaves and variable-speed motors, minimizing noise, heat, and wear.
Its compact footprint—slipping easily into tight spaces at just 12.2 by 7.3 by 3.5 inches—makes it a go-to for mobile lifestyles. With 90% efficiency, it squeezes more runtime from your batteries, letting you focus on the journey rather than recharging stops.
Standout Features That Set It Apart
- Integrated Digital Display: Monitor DC input voltage and real-time output power at a glance, helping you track performance and avoid surprises.
- Rugged Heavy-Duty Terminals: Secure, vibration-resistant connections withstand the bumps of road and sea travel.
- Optional Remote ON/OFF Switch: Control from afar, with ignition lockout capability for vehicles to prevent unnecessary drain.
- Comprehensive Protections: Guards against low voltage (alarm at 11V, shutdown at 10.5V), overvoltage (up to 15.5V), overloads, and overheating, keeping your setup safe.
These aren't just checkboxes—they translate to peace of mind, reducing downtime and extending gear life in real-world conditions.
Technical Specifications at a Glance
| Specification | Details |
|---|---|
| Output Voltage | 230-240V AC |
| Input Voltage | 12V DC |
| Continuous Power | 700W |
| Surge/Peak Power | 1400W |
| Efficiency | 90% |
| Dimensions (L x W x H) | 12.2" x 7.3" x 3.5" |
Built tough without extras like USB ports or internal chargers, it prioritizes core performance for off-grid pros.
Real-World Applications and Use Cases
RV Enthusiasts: Run coffee makers, blenders, or CPAP machines without grid access, enjoying home comforts on the road.
Commercial Trucks: Power laptops, printers, or small fridges during extended hauls, boosting productivity between stops.
Marine Boaters: Keep navigation gear, radios, and lights humming reliably, even in choppy waters.
Users rave about its quiet operation and surge handling for motors—perfect for air conditioners or winches that other inverters struggle with.
Installation and Maintenance Tips for Longevity
Mount in a cool, dry spot with good ventilation. Use appropriately sized cables (not included) to minimize voltage drop—thicker for longer runs. Connect positive first, then negative, and test with light loads before full power-up. Regularly check battery health and clean terminals to maintain peak efficiency. For remote control, integrate with your vehicle's ignition for smart auto-shutoff.
Avoid common pitfalls like undersized batteries or overloading; pair with deep-cycle batteries rated for at least 100Ah for best results.
Frequently Asked Questions
What makes true sine wave output better than modified sine wave?
True sine wave mimics utility grid power, running sensitive devices like medical equipment or audio systems without humming, overheating, or damage—ideal for modern appliances.
Can this inverter handle startup surges for motors?
Yes, with 1400W peak capacity, it effortlessly starts compressors, pumps, or tools that draw 2x their running watts briefly.
Is it suitable for RV or boat battery banks?
Absolutely—optimized for 12V deep-cycle or AGM batteries in mobile setups, with protections to prevent deep discharge.
Does it include battery cables or fuses?
No, these are sold separately to allow customization for your specific wiring needs and safety standards.
How do I know when to shut it down?
The digital display shows voltage and power; audible alarms warn of low battery, with auto-shutdowns for safety.
What's the expected runtime on a typical battery?
At 700W full load, about 1 hour on a 100Ah battery (accounting for efficiency and safe discharge); lighter loads extend this significantly.
Can I use it with solar setups?
Yes, pairs well with solar charge controllers to create a hybrid off-grid system for extended power independence.
The compact, easy-to-use and easy-to-install design of the PROwatt SW Series makes it ideal for use in commercial truck, RV and marine applications. With True Sine-Wave output, the PROwatt SW Series can provide power for all types of electrical loads including, variable speed power tools, advanced electrical appliances, microwaves and much more. The PROwatt SW provides household AC power anywhere.
Xantrex 806120601 Attributes
- Output Voltage: 240 Volt AC
- Input Voltage: 12 Volt DC
- Continuous Output Power (W): 700 Watt
- Peak Output Power (W): 1400 Watt
- Efficiency: 90 Percent
- Length (IN): 12.2 Inch
- Width (IN): 7.3 Inch
- Height (IN): 3-1/2 Inch
- Remote On/Off Capable: Yes
- With USB Port: No
- With Volt/Watt Meter: Yes
- With Short Circuit: Yes
- With Reverse Battery Protection: No
- With Thermal Protection: No
- With Battery Cables: No
- With Built-In Charger: No
- With Fuse: No
Xantrex 806120601 Features & Benefits
- Built-In Digital Display For DC Volts And Output Power
- Heavy Duty Terminals For Trouble-Free Battery Connection
- Available ON/OFF Remote Switch
- Low Voltage Shutdown. Low Voltage Alarm
- Over Voltage Protection. Overload Shutdown
- Over Temperature Shutdown
- Limited 2 Year Warranty
Xantrex 806120601 Installation Instructions
Xantrex 806120601 Warranties
Xantrex 806120601 Technical Bulletins
PROwatt SW International - 700W
Part #: 806-1206-01
The PROwatt SW Series feature True Sine-Wave 230V AC output with 700 watts. With high surge capability, the PROwatt SW Series provides the necessary current to start-up demanding electrical loads.
The PROwatt SW Series power inverters offer an affordable alternative to modified sine wave inverters. The PROwatt SW Series offers many safety features not found in similar inverters. When equipped with a remote control, the PROwatt SW Series has the ability to provide automatic ignition lockout shutting down the inverter's output when the vehicle's ignition is not engaged.
The compact, easy-to-use and easy-to-install design of the PROwatt SW Series makes it ideal for use in commercial truck, RV and marine applications. With True Sine-Wave output, the PROwatt SW Series can provide power for all types of electrical loads including, variable speed power tools, advanced electrical appliances, microwaves and much more. The PROwatt SW provides household AC power anywhere.
Features:
- Built-in digital display for DC volts and output power
- Heavy duty terminals for trouble-free battery connection
- Available ON/OFF remote switch (with ignition lockout)
- Two year warranty
- Low voltage shutdown (10.5 Vdc)
- Low voltage alarm (11.0 Vdc)
- Over voltage protection (15.5 Vdc)
- Overload shutdown
- Over temperature shutdown
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.
The compact PROwatt SW series with true sine wave AC output is an affordable alternative to true sine wave AC power supplies, ideal for commercial trucks, motorhomes and marine applications. ...
SKU: NVN-42668
MPN: 806-1206-01
UPC: 715535894108
Technical specifications
| Brand | Xantrex |
| Model | Xantrex PROwatt SW 700I 12VDC 230VAC 700W True Sinewave Inverter |
| SKU / MFR# | 42668 |
