Wichard Marine
Wichard Eye strap - 10mm Diameter - 25/64" - 78mm Spacing - 3-5/64"
SKU: 97702 · UPC: · MPN: 09205
★★★★★
4.7 · 0 reviews
Authorized dealer15% off
$45.32
$53.32Save $8.00
or 4 payments of $11.33 with Affirm
In stock — Ships today
Pickup available · NVN Marine (FL)
SAME-DAY SHIPPING · 14:23 EST
Order in time, ships today
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$45.32
02 · Overview
Wichard Eye strap - 10mm Diameter - 25/64" - 78mm Spacing - 3-5/64" — Product description

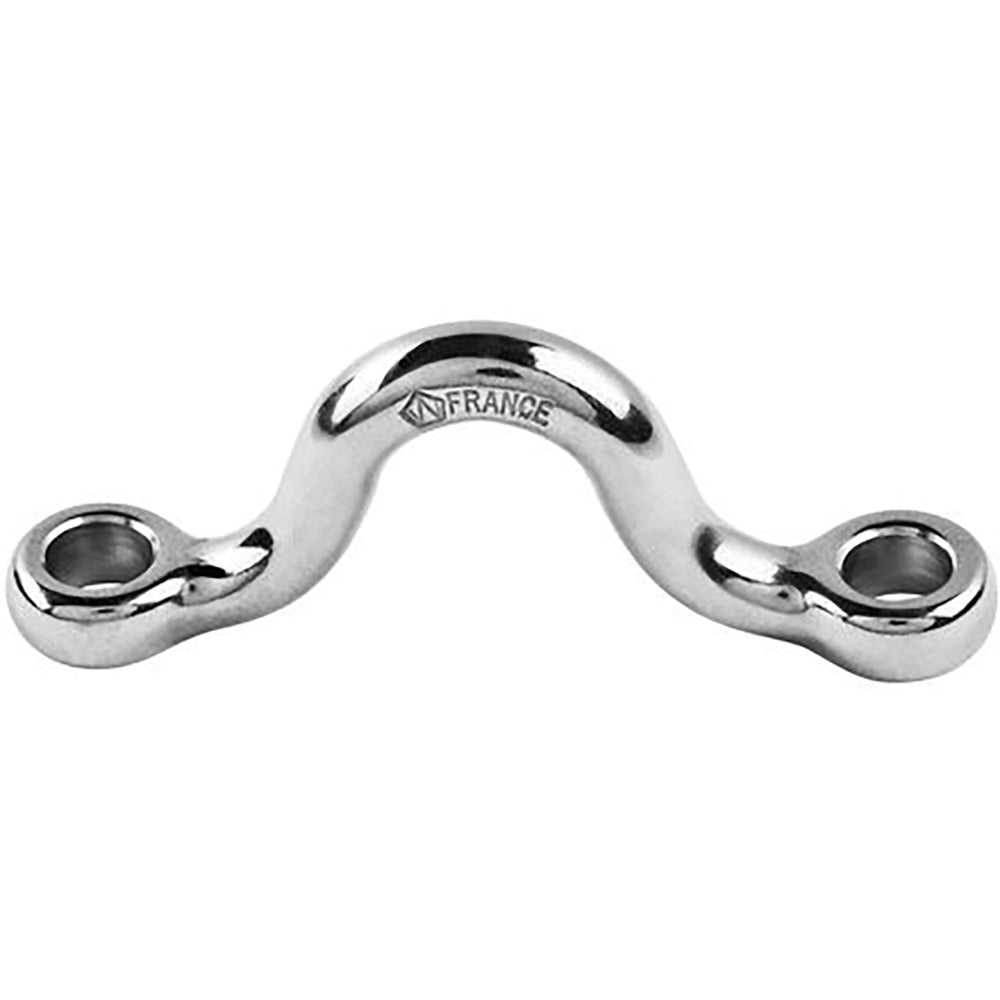

Eye strap - 10mm Diameter - 25/64" - 78mm Spacing - 3-5/64"
Features:
- Complete range of drop-forged saddles with high-quality stainless steel (316L)
- Outstanding strength
- The round shape reduces the wear of the components connected to them (straps, ropes...)
Applications:
- Fastening applications
- Attachment of straps, ropes, etc.
Specifications:
- Materials: 316L stainless steel grade
- Breaking load: (lb) 15430 / (kg) 7000
- Weight: (lb) 0.165 / (g) 75
Dimensions:
- A: (inch) 25/32" / (mm) 20
- B: (inch) 1 1/32" / (mm) 26
- D diameter: (inch) 25/64" / (mm) 10
- E: (inch) 3 5/64" / (mm) 78
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
SKU: NVN-97702
MPN: 09205
UPC:
