Wichard Marine

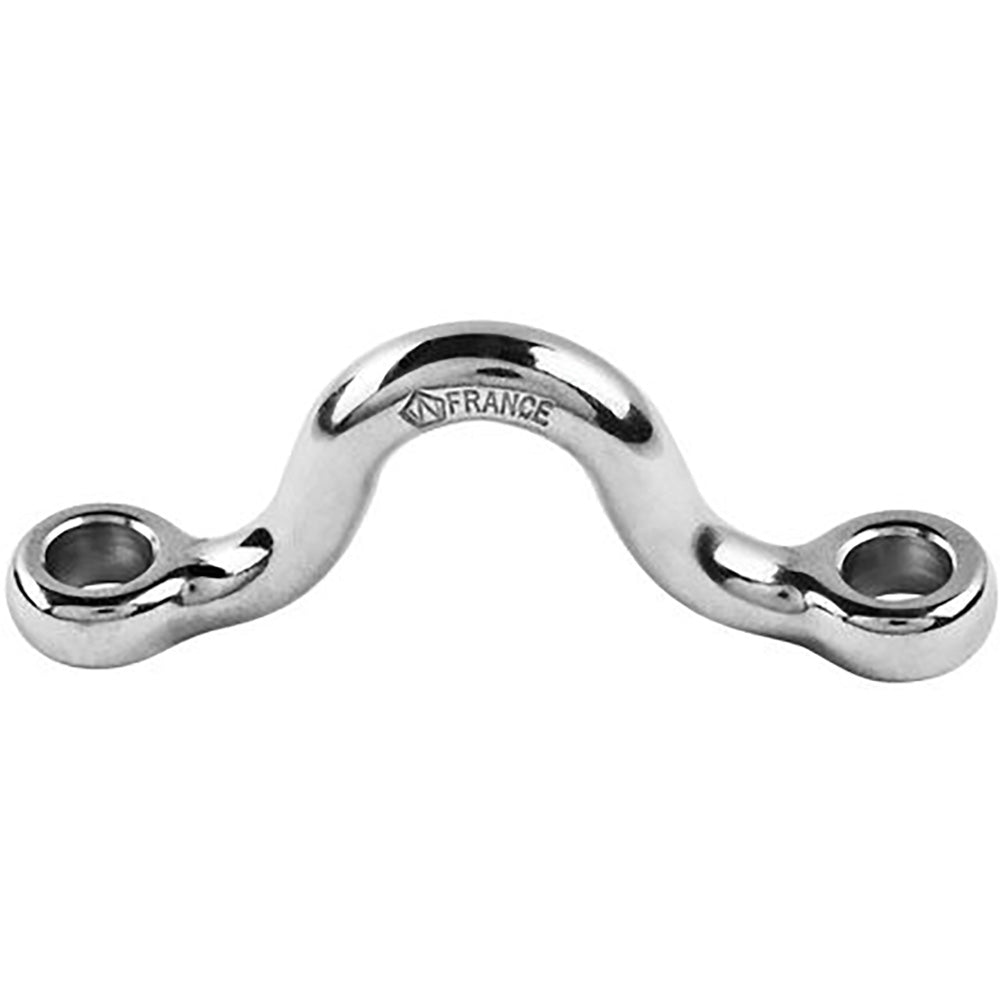

Wichard Eye Strap - 4mm Diameter - 5/32" - 30mm Spacing - 1-17/64″
SKU: 97698 · UPC: · MPN: 09201
★★★★★
4.7 · 0 reviews
Authorized dealer15% off
$11.27
$13.26Save $1.99
or 4 payments of $2.81 with Affirm
In stock — Ships today
Pickup available · NVN Marine (FL)
SAME-DAY SHIPPING · 14:23 EST
Order in time, ships today
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$11.27
02 · Overview
Wichard Eye Strap - 4mm Diameter - 5/32" - 30mm Spacing - 1-17/64″ — Product description
Eye Strap - 4mm Diameter - 5/32" - 30mm Spacing - 1-17/64"
Features:
- Complete range of drop-forged saddles with high-quality stainless steel (316L)
- Outstanding strength
- The round shape reduces the wear of the components connected to them (straps, ropes...)
Applications:
- Fastening applications
- Attachment of straps, ropes, etc.
Specifications:
- Materials: 316L stainless steel grade
- Breaking load: (lb) 1430 / (kg) 650
- Weight: (lb) 0.009 / (g) 4
Dimensions:
- A: (inch) 5/16" / (mm) 8
- B: (inch) 7/16" / (mm) 11
- D diameter: (inch) 5/32" / (mm) 4
- E: (inch) 1 17/64" / (mm) 32
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
SKU: NVN-97698
MPN: 09201
UPC:
03 · The numbers
Technical specifications
| Brand | Wichard Marine |
| Model | Wichard Eye Strap - 4mm Diameter - 5/32" - 30mm Spacing - 1-17/64″ |
| SKU / MFR# | 97698 |
