Wichard U-Bolt Pad Eye - 10mm Diameter - 25/64" - 110mm Length - 4 21/64"
SKU: 97693 · UPC: 06525 · MPN: 06525
★★★★★
4.7 · 0 reviews
Authorized dealer15% off
$61.47
$72.32Save $10.85
or 4 payments of $15.36 with Affirm
In stock — Ships today
Pickup available · NVN Marine (FL)
SAME-DAY SHIPPING · 14:23 EST
Order in time, ships today
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$61.47
02 · Overview
Wichard U-Bolt Pad Eye - 10mm Diameter - 25/64" - 110mm Length - 4 21/64" — Product description

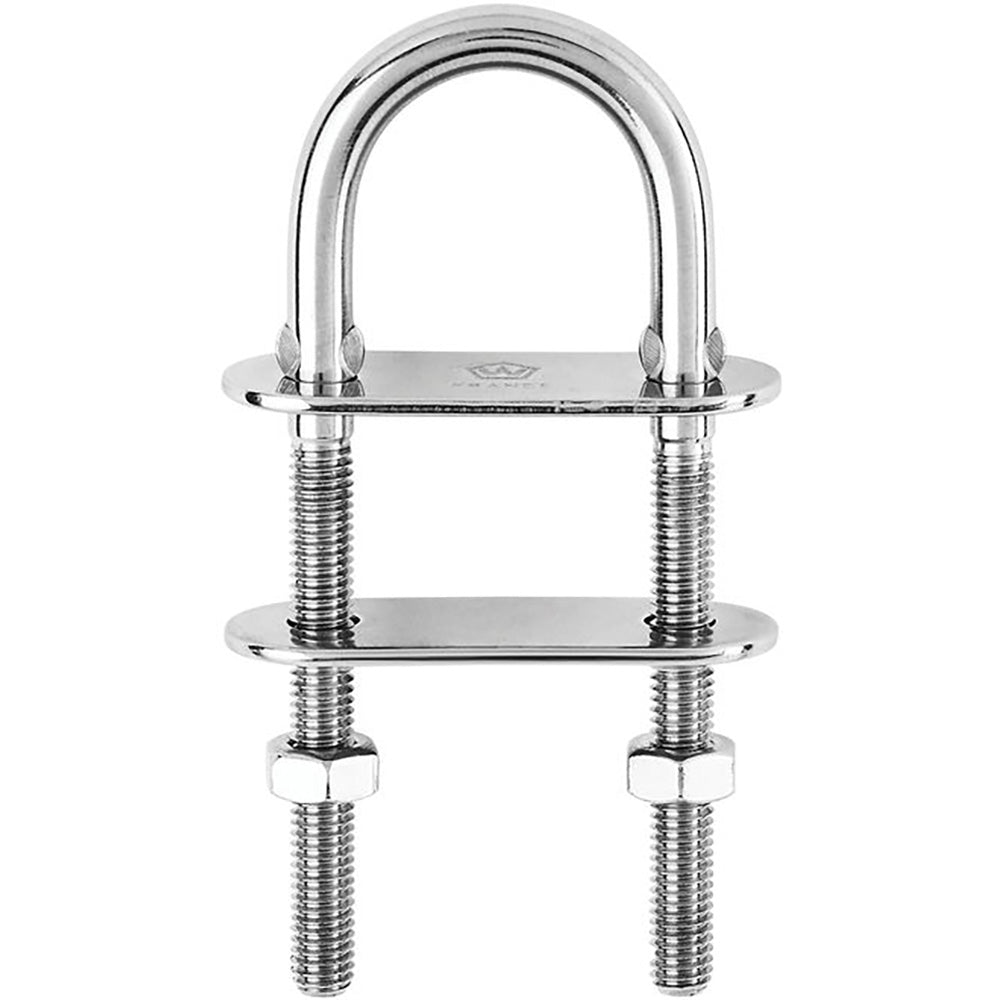

U-Bolt Pad Eye - 10mm Diameter - 25/64" - 110mm Length - 4 21/64"
Features:
- Entirely drop forged product with high-quality stainless steel
- Outstanding working and breaking loads
- For any fastening applications (shrouds, lifelines, blocks...)
- Delivered with bolts and counter-plate
- Max tightening torque: 36 Nm
Applications:
- Various fastening applications: shrouds, lifelines, blocks…
Specifications:
- Materials: 316L stainless steel grade
- Working load: (lb) 7930 / (kg) 3600
- Breaking load: (lb) 15430 / (kg) 7000
- Weight: (lb) 0.489 / (g) 222
Dimensions:
- A: (inch) 1 37/64" / (mm) 40
- B: (inch) 1 17/64" / (mm) 32
- C: (inch) 2 9/16" / (mm) 65
- D diameter: (inch) 25/64" / (mm) 10
- Length: (inch) 4 21/64" / (mm) 110
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
SKU: NVN-97693
MPN: 06525
UPC:
