Wichard Marine
Wichard Captive Pin D Shackle - Diameter 10mm - 13/32"
SKU: 93113 · MPN: 01405
★★★★★
4.7 · 0 reviews
Authorized dealer14% off
$80.87
$95.14Save $14.27
or 4 payments of $20.21 with Affirm
In stock — Ships today
Pickup available · NVN Marine (FL)
SAME-DAY SHIPPING · 14:23 EST
Order in time, ships today
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$80.87
02 · Overview
Wichard Captive Pin D Shackle - Diameter 10mm - 13/32" — Product description

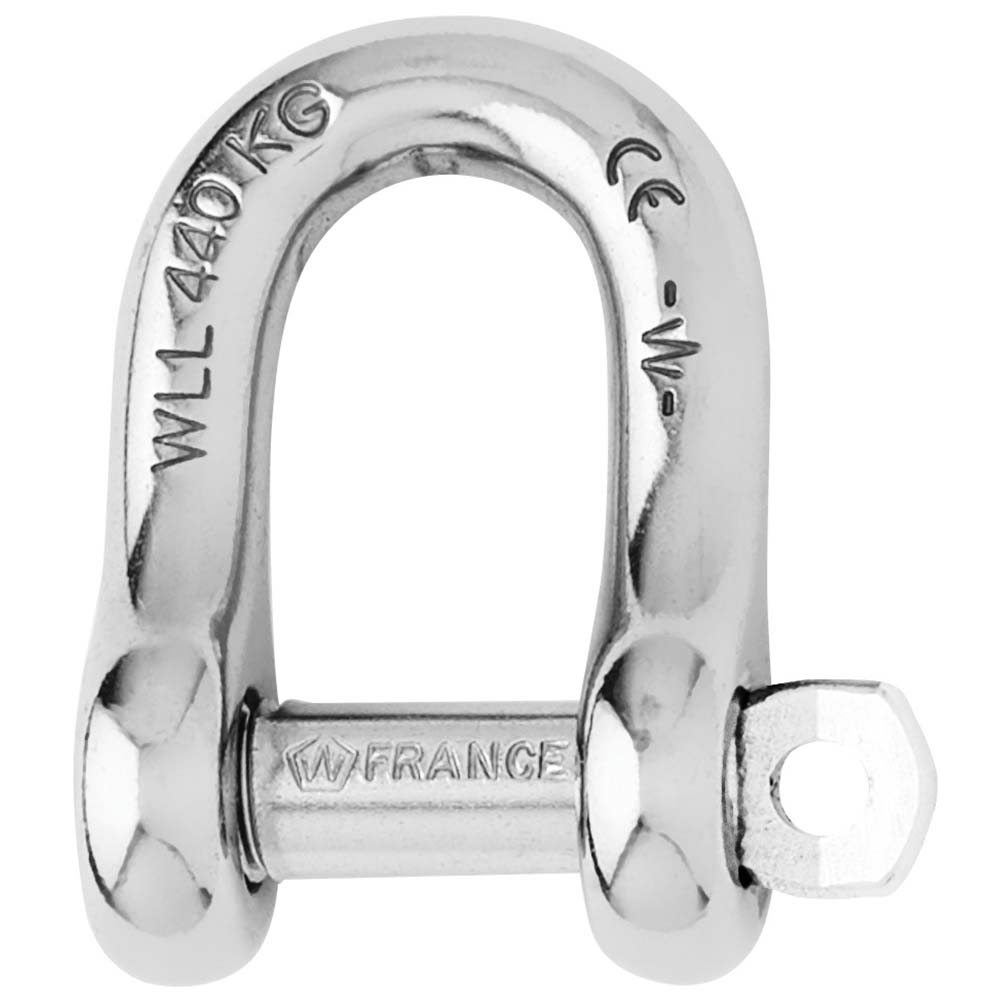

Captive Pin D Shackle - Diameter 10mm - 13/32"
Features:
- Captive pin "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Standard applications of shackle
- Attachment applications: blocks, head...
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 3350
- WLL (lb) 2290
- Breaking load (lb) 11460
- Weight (lb) 0.251
Dimensions (see 2nd image):
- A (inch) 1-19/64"
- B (inch) 25/32"
- C (inch) 7/16"
- D (inch) 53/64"
- D diameter (inch) 25/64"
- E (inch) 23/64"
- F (inch) 2-9/32"
- G (inch) 2-3/32"
SKU: NVN-93113
MPN: 01405
UPC:
