Wichard Marine
Wichard Captive Pin D Shackle - Diameter 8mm - 5/16"
SKU: 93112 · UPC: 768536014044 · MPN: 01404
★★★★★
4.7 · 0 reviews
Authorized dealer14% off
$52.05
$61.23Save $9.18
or 4 payments of $13.01 with Affirm
Low stock — 3 left — Ships today
Pickup available · NVN Marine (FL)
SAME-DAY SHIPPING · 14:23 EST
Order in time, ships today
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$52.05
02 · Overview
Wichard Captive Pin D Shackle - Diameter 8mm - 5/16" — Product description

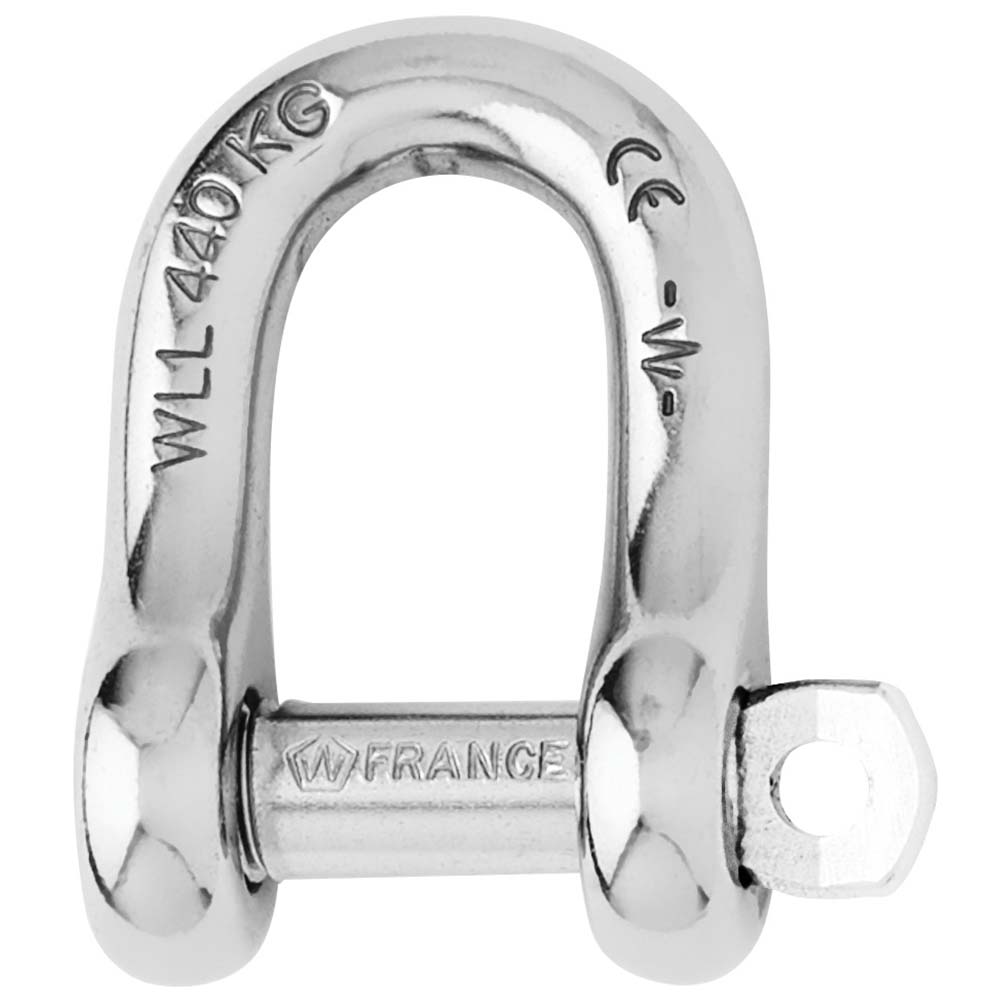

Captive Pin D Shackle - Diameter 8mm - 5/16"
Features:
- Captive pin "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Standard applications of shackle
- Attachment applications: blocks, head...
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 2200
- WLL (lb) 1580
- Breaking load (lb) 7930
- Weight (lb) 0.134
Dimensions (see 2nd image):
- A (inch) 1-1/32"
- B (inch) 5/8"
- C (inch) 23/64"
- D (inch) 45/64"
- D diameter (inch) 5/16"
- E (inch) 5/16"
- F (inch) 1-27/32"
- G (inch) 1-21/32"
SKU: NVN-93112
MPN: 01404
UPC: 768536014044
03 · The numbers
Technical specifications
| Brand | Wichard Marine |
| Model | Wichard Captive Pin D Shackle - Diameter 8mm - 5/16" |
| SKU / MFR# | 93112 |
Set product metafields under specs.* to populate this table.
