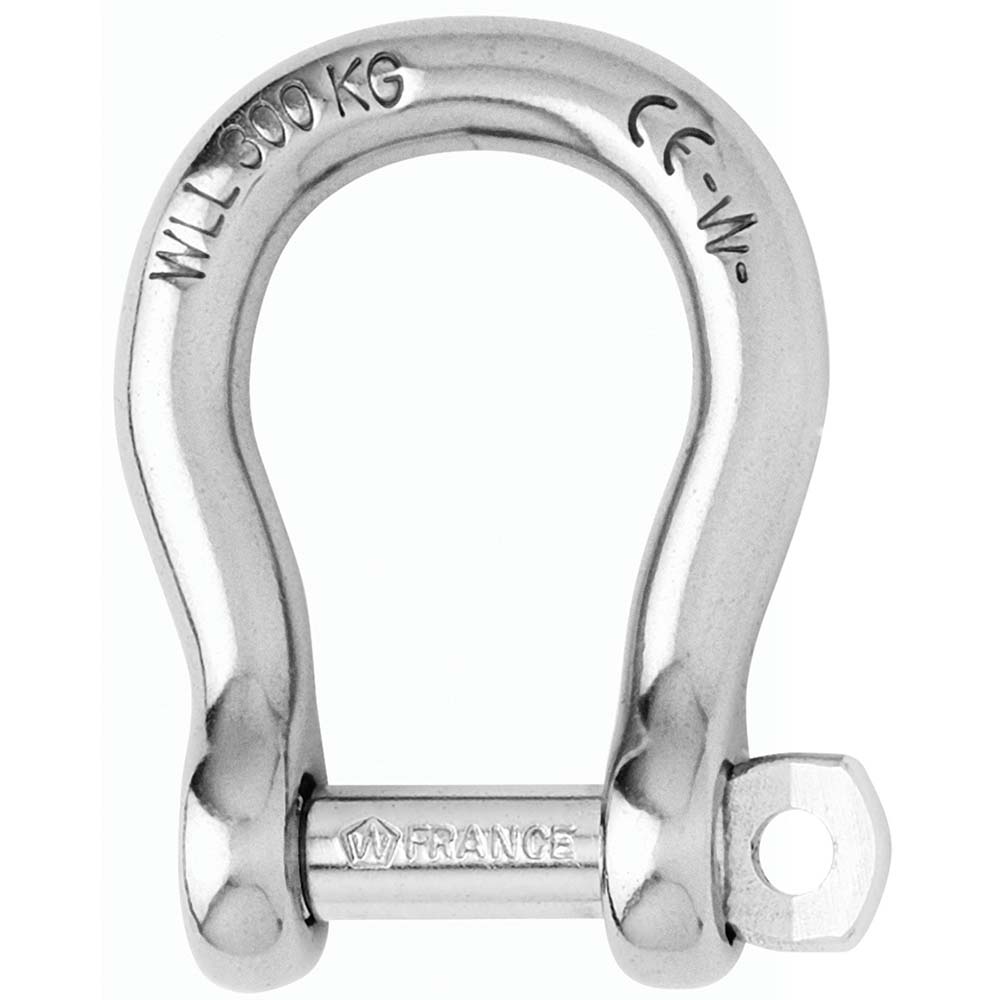

Wichard Self-Locking Bow Shackle - Diameter 4mm - 5/32"
SKU: 93102 · UPC: 768536012415 · MPN: 01241
★★★★★
4.7 · 0 reviews
Authorized dealer15% off
$17.60
$20.71Save $3.11
or 4 payments of $4.40 with Affirm
Out of stock
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$17.60
02 · Overview
Wichard Self-Locking Bow Shackle - Diameter 4mm - 5/32" — Product description
Self-Locking Bow Shackle - Diameter 4mm - 5/32"
Features:
- Self-locking bow shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications:
- To be used when ample room is required
- Possibility to attach several lines or cables
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 700
- WLL (lb) 300
- Breaking load (lb) 1540
- Weight (lb) 0.02
Dimensions (see 2nd image):
- A (inch) 45/64"
- B (inch) 5/16"
- C (inch) 5/32"
- D (inch) 5/16"
- D diameter (inch) 5/32"
- M (inch) 53/64"
SKU: NVN-93102
MPN: 01241
UPC: 768536012415
