Wichard Marine
Wichard Self-Locking Twisted Shackle - Diameter 6mm - 1/4"
SKU: 93100 · UPC: 768536012231 · MPN: 01223
★★★★★
4.7 · 0 reviews
Authorized dealer15% off
$27.91
$32.84Save $4.93
or 4 payments of $6.97 with Affirm
Low stock — 3 left — Ships today
Pickup available · NVN Marine (FL)
SAME-DAY SHIPPING · 14:23 EST
Order in time, ships today
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$27.91
02 · Overview
Wichard Self-Locking Twisted Shackle - Diameter 6mm - 1/4" — Product description

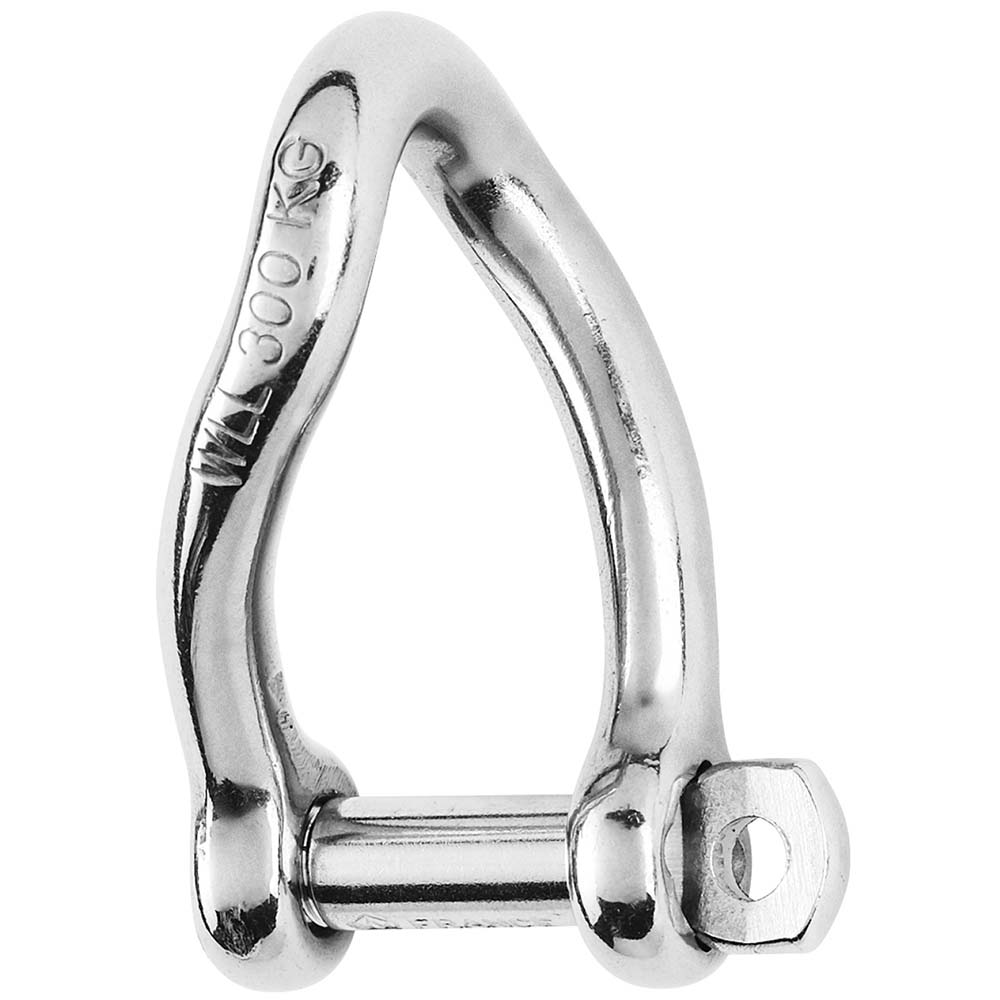

Self-Locking Twisted Shackle - Diameter 6mm - 1/4"
Features:
- Self-locking twisted shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Perfect for application where a 90° angle twist setup is required
- Often used to attach an unarticulated part (block on a rail) or on purchases
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 1320
- Breaking load (lb) 3300
- Weight (lb) 0.06
Dimensions (see 2nd page):
- A (inch) 1-3/16"
- B (inch) 15/32"
- C (inch) 15/64"
- D (inch) 15/32"
- D diameter (inch) 15/64"
- E (inch) 13/64"
- F (inch) 1-49/64"
SKU: NVN-93100
MPN: 01223
UPC: 768536012231
