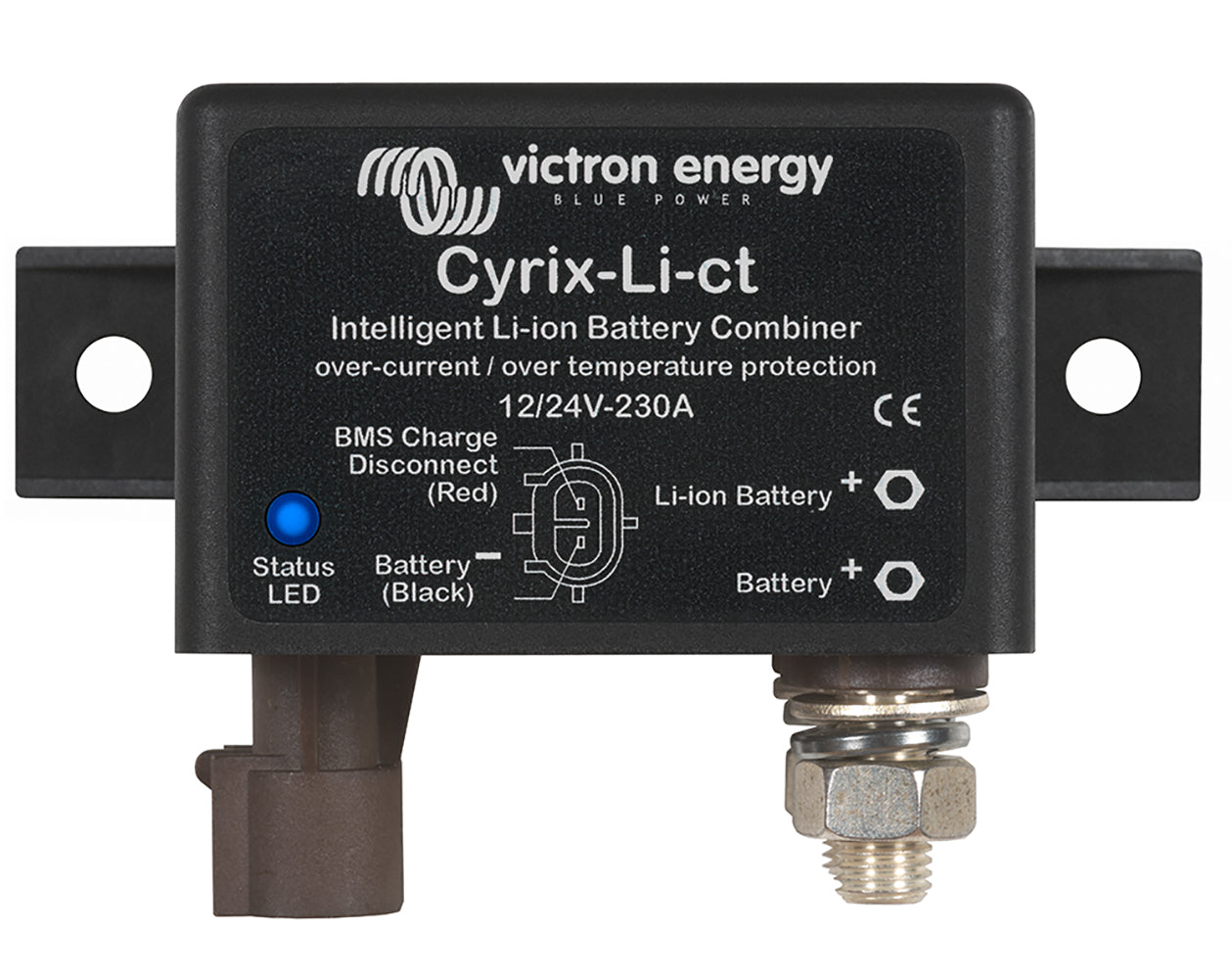

Cyrix-Li-ct 12/24V-230A Intelligent Li-Ion Battery Combiner
The Cyrix Battery Combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is virtually no voltage loss, so the output voltage of alternators or battery chargers does not need to be increased.
The functionality of the Cyrix-Li-ct is analogous to the Cyrix-ct.
The Cyrix-Li-ct will parallel connect a lead acid starter battery and a LiFePO4 battery:
- If the charge disconnects the output of the VE.Bus BMS is high, and
- If it senses 13,4 V (resp. 26,8 V) or more on one of its power terminals.
The Cyrix will disengage immediately:
- When its control output becomes free floating, signaling cell over voltage or cell over temperature, and when battery voltage drops below 13,2 V
- Start assist function: a short negative pulse will close the relay for 30 seconds
- A built-in transient voltage suppressor will limit the voltage spike that may occur when the Cyrix suddenly disengages due to cell overvoltage or over-temperature
SKU: NVN-85026
MPN: CYR010230412
UPC: 8719076034346
Technical specifications
| Brand | Victron Energy |
| Model | Victron Cyrix-Li-ct 12/24V-230A Intelligent Li-Ion Battery Combiner |
| SKU / MFR# | 85026 |
