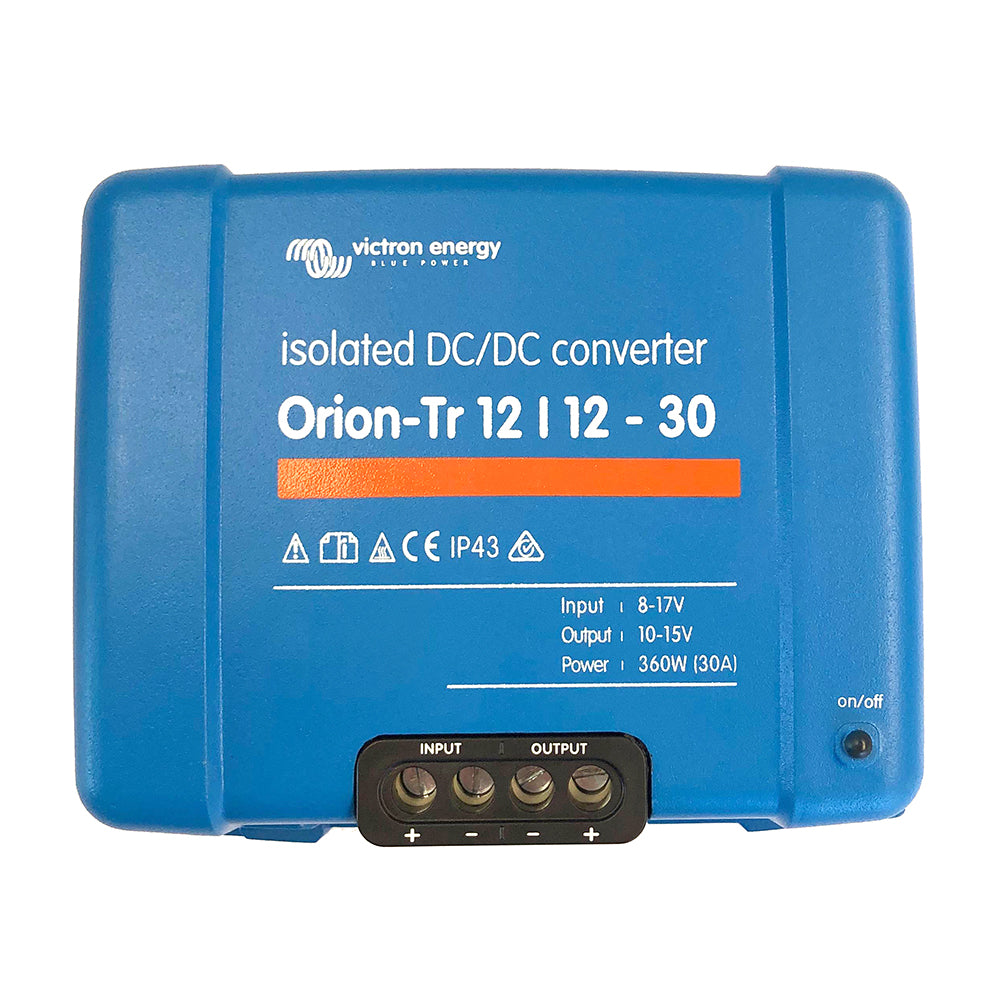

Victron Orion-TR DC-DC Converter - 12 VDC to 12 VDC - 30AMP Isolated
Victron Orion-TR DC-DC Converter - 12 VDC to 12 VDC - 30AMP Isolated — Product description
Orion-Tr 12/12-30A (360W) Isolated DC-DC converter - Remote on-off: The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger: For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. IP43 protection: When installed with the screw terminals oriented downwards.
Screw terminals: No special tools needed for installation. Input fuse: On 12V and 24V input models only.
Orion-TR DC-DC Converter - 12 VDC to 12 VDC - 30AMP Isolated
Isolated Model - separate in and out (-) leads
Features:
- Remote on-off The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch.
- Adjustable output voltage: can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
- All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel.
- High temperature protected The output current will reduce at high ambient temperature.
- IP43 protection When installed with the screw terminals oriented downwards.
- Screw terminals No special tools needed for installation.
- Input fuse (not replaceable) On 12V and 24V input models only
Orion-TR DC-DC converter -12 VDC to 12 VDC-30AMP isolation characteristics: remote switch remote switch eliminates the need for high current switching in the input line. This ...
SKU: NVN-82870
MPN: ORI121240110
UPC: 8719076038825
Technical specifications
| Brand | Victron Energy |
| Model | Victron Orion-TR DC-DC Converter - 12 VDC to 12 VDC - 30AMP Isolated |
| SKU / MFR# | 82870 |
