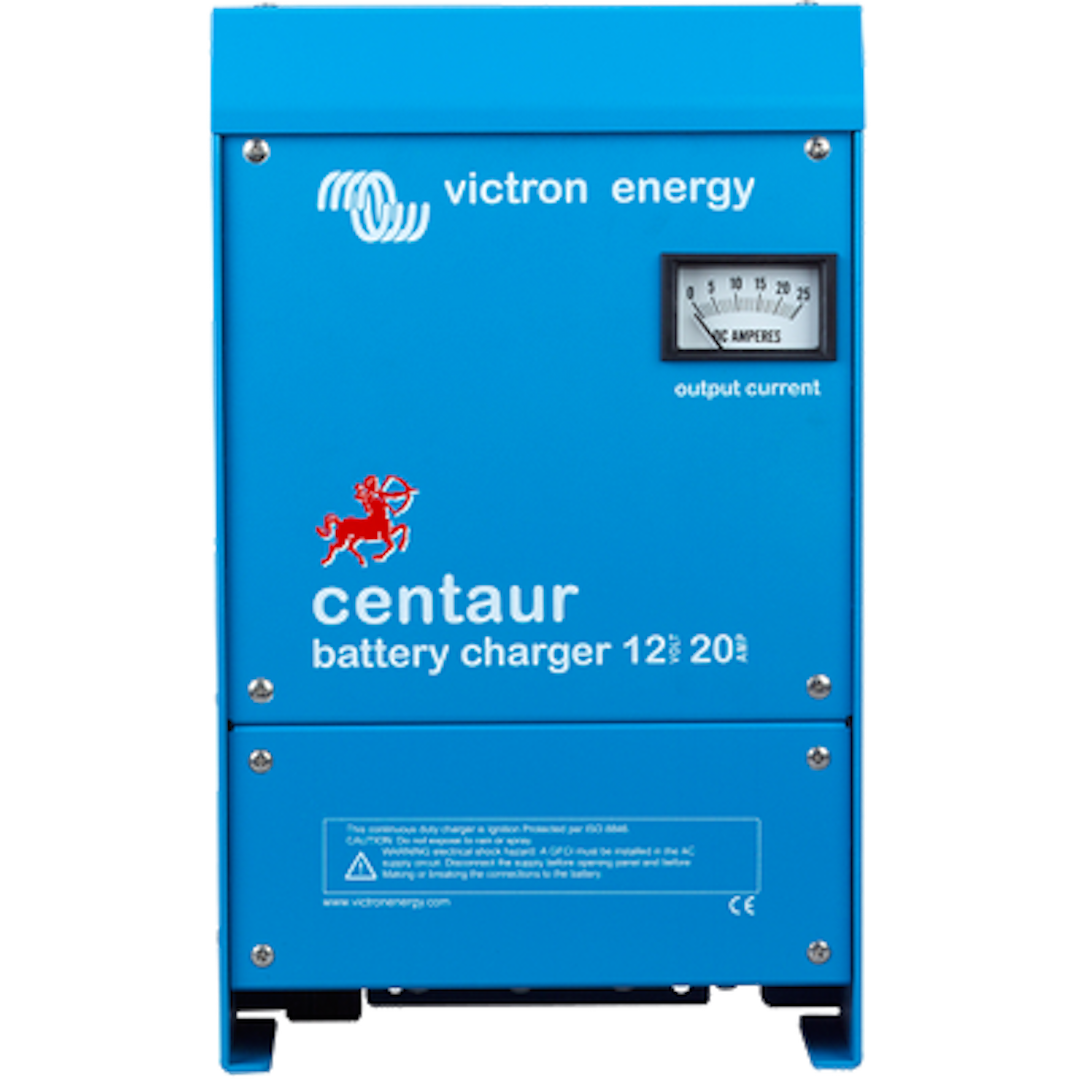

Batt Chgr, Centaur, 12V, 20A, 3 Bank

Centaur Battery Charger, MFG# CCH012020000, 12 Volt DC, 20 Amps, 3 isolated banks. 90-265 Volts AC, 50-60 Hz or 90-400 Volt DC input. Automatic 3-stage charging, analog output current gauge, coated PCBs, and internal temperature sensor.

"Designed to meet the requirements of both CE for Europe and UL for the United States, the Centaur model range features auto-ranging input covering 90-265Vac 50\/60Hz input meaning they can be used anywhere in the world. Crucially, and unlike other products that state universal input, the Centaur range will maintain full output power within the entire specified range. Other features include fully automatic three stage charge that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations. Multi stage charging 12 volt 20 Amp output Suitable for a wide variety of battery types using type selector dipswitches. Auto-ranging input covering 90-265Vac 50\/60Hz 3 output banks Output meter included Recommended for battery banks from 80-200 amp hour capacity Internal temperature sensor included Internal temperature and current controlled fan Internal short circuit protection included Ignition protected Weight 8.4 Lbs Dimensions 14 x 8.5 x4.3 inches Easy mounting system Detailed specification, drawings, and description."
SKU: NVN-2000790
MPN: CCH012020000
UPC: 8719076021476
