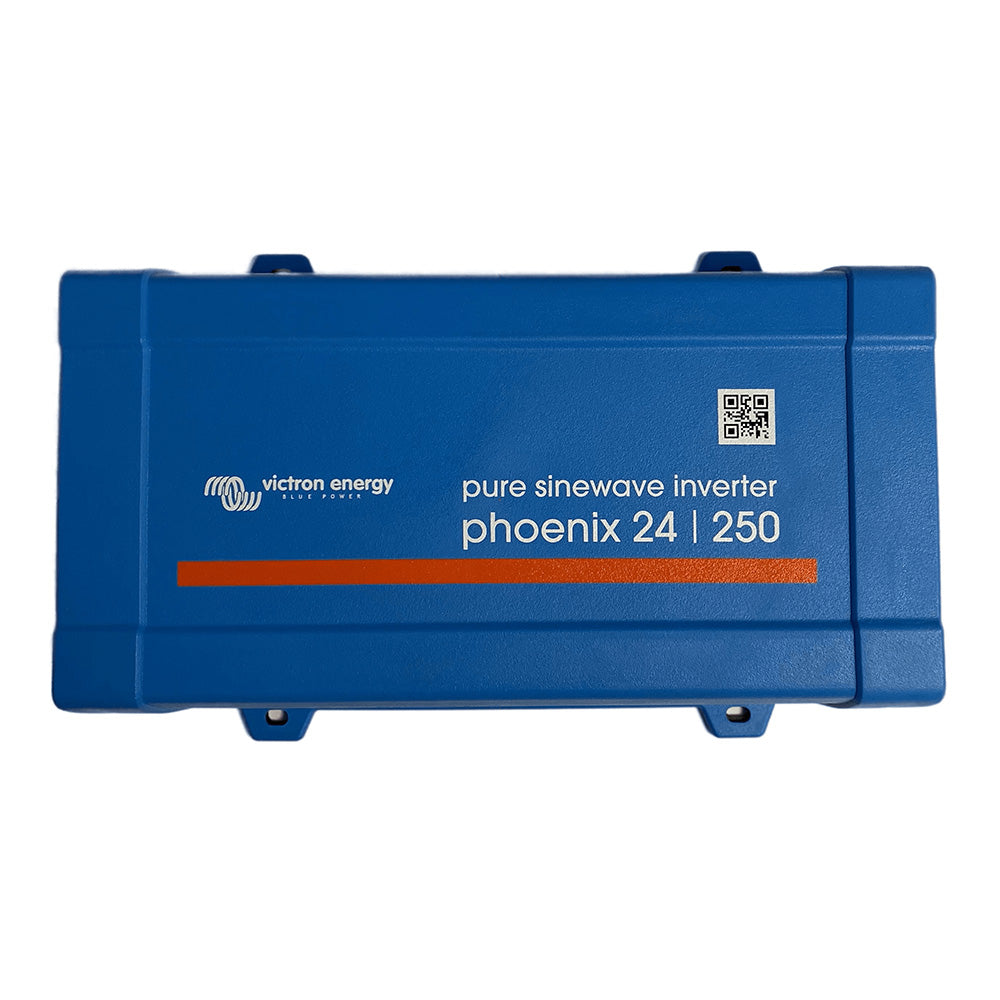

Victron Phoenix Inverter 24VDC - 250VA - 120VAC - VE.Direct - NEMA 5-15R

Inverter 24VDC - 250VA - 120VAC - VE.Direct - NEMA 5-15R

Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V, or 48VDC.

The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)
• Apple and Android smartphones, tablets, MacBook, and other devices (VE.Direct Bluetooth Smart dongle needed)

Fully configurable:

• Low battery voltage alarm trip and reset levels
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load-dependent cut-off level
• Output voltage 210 - 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level

Monitoring:

• In- and output voltage, % load, and alarms
• Please get in touch with your dealer for any returns, repairs, or support issues related to this product.

Phoenix Inverter 24/250 Specifications:

• Continuous Power at 25°C: 250VA
• Continuous Power at 25°C / 40°C: 200 / 175W
• Peak Power: 400W
• Output AC Voltage / Frequency (adjustable): 120VAC +/- 3%
• Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V
• DC Low Shut Down (adjustable): 9,3 / 18,6 / 37,2V
• Dynamic (Load Dependent) DC low shut down (fully configurable): Dynamic cut-off
• DC Low Restart and Alarm (adjustable): 10,9 / 21,8 / 43,6V
• Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V
• Maximum Efficiency: 87 / 88 / 88%
• Zero-Load Power: 4,2 / 5,2 / 7,9W
• Default Zero-Load Power in ECO Mode (default retry interval: 2,5 s, adjustable): 0,8 / 1,3 / 2,5W
• ECO Mode Stop and Start Power Setting: Adjustable
• Protection: a - f
• Operating temperature Range: -40 to +65°C (fan-assisted cooling) / Derate 1,25% per °C above 40°C
• Humidity (non-condensing): Max 95%

Enclosure:

• Material & Color: Steel chassis and plastic cover (blue Ral 5012)
• Battery-Connection: Screw terminals
• Maximum Cable cross-Section 10mm^2 / AWG8
• Standard AC outlets 230V: Schuko (CEE 7/4), IEC-320 (male plug included), UK (BS 1363), AU/NZ (AS/NZS 3112), 120V: Nema 5-15R, GFCI
• Protection Category: IP 21
• Weight: 2,4kg / 5,3lbs
• Dimensions (h x w x d, mm) / (h x w x d, inch): 86 x 165 x 260 mm / 3.4 x 6.5 x 10.2 in.

Accessories:

• Remote On-Off: Yes
• Automatic Transfer Switch: Filax

SKU: NVN-93143
MPN: PIN242510500
UPC: 8719076036005
