Icom M510 VHF Bundle w/CT-M500 Wireless Interface Box f/NMEA 2000
Icom M510 VHF Bundle w/CT-M500 Wireless Interface Box f/NMEA 2000 — Product description

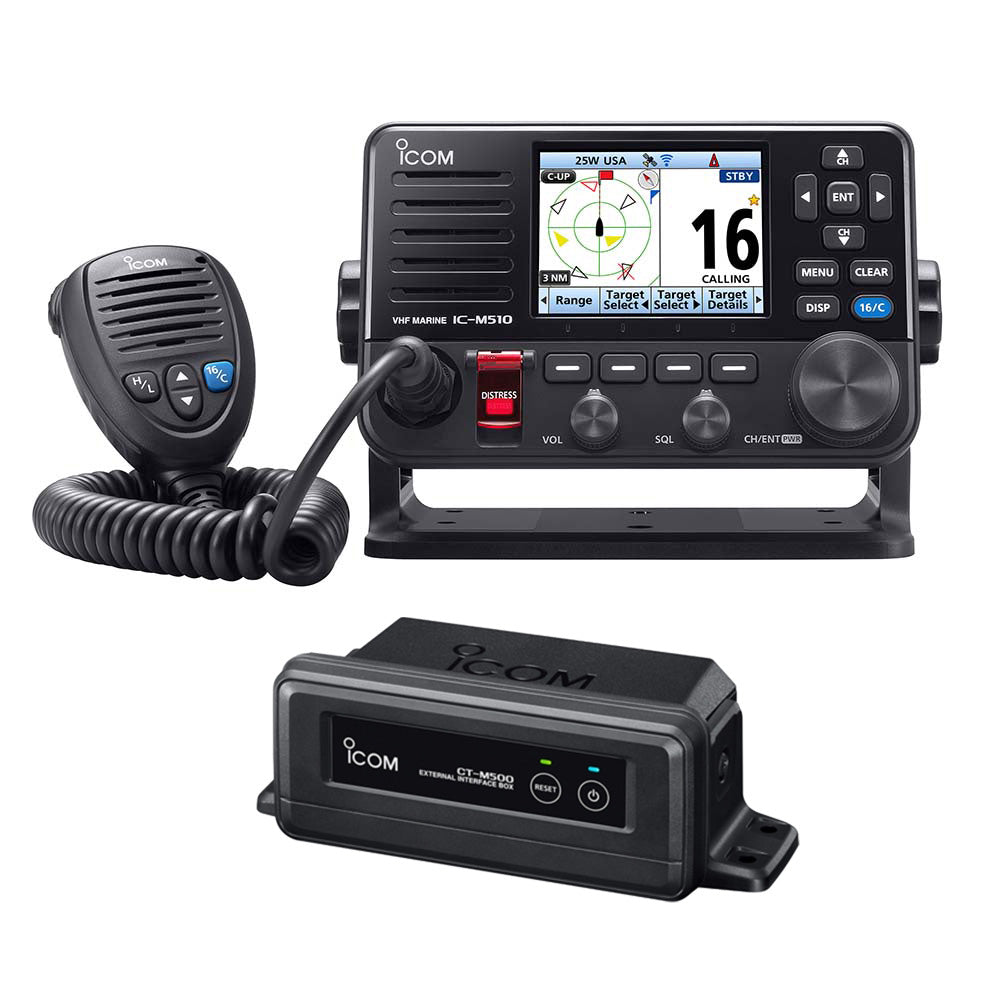

M510 VHF Bundle with CT-M500 Wireless Interface Box for NMEA 2000
Icom M510 VHF Marine Radio
Icom’s Class D DSC fixed mount VHF marine transceiver, the M510 is a tech-laden powerhouse. The M510 is nearly half the depth of the M506, allowing installation in more confined spaces. The large color display has a simple user interface, providing casual and serious boaters alike with plenty of options to communicate.
Use the RS-M500 app (for iOS™/Android™) to remotely control the M510 through WLAN. Up to three smart devices can be used as a wireless microphone or remote controller in place of the COMMANDMIC™.
An intercom function between a smart device and the radio is also available.
Interface Box for NMEA 2000®
The CT-M500 wireless interface box provides NMEA 2000™ connectivity and a Two-way Hailer/PA function. The CT-M500 and the radio can be connected through WLAN. This separate interface box option allows for flexibility in positioning the unit closer to the NMEA network connection point.
Features:
- Large color display - 3.5" TFT LCD
- S-M500 app ( iOS® or Android™) allows users to connect three (3) smart devices to function as a wireless command speaker/microphone
- Hand microphone with AquaQuake™
- Front and back microphone connection ports
- Optional voice scrambler
- External speaker connection
- Supports 4-digit channels
- Option to connect external GPS
M510 VHF Marine Radio Technical Specifications:
- Output Power: 25W
- Frequency Range: Transmit - 156.025 to 157.425 MHz
- Frequency Range: Receive - 156.050 to 163.275 MHz
- Waterproof Rating: IP68
- GPS: Built-in
- WLAN: Built-in
- Connectivity: NMEA 0183 (NMEA 2000™ with the addition of the CT-M500)
CT-M500 Technical Specifications:
- Power Supply Requirements: 11.7 to 15.9 V
- Waterproof Rating: IPX7
- Dimensions (W x H x D): 6.2" x 2.7" 3.2" (15.7 x 6.76 x 8.21 cm)
- Weight: 5.2 oz (430 g)
In the Box:
- M510 VHF radio
- Icom CT-M500 Wireless Interface Box
- Speaker microphone (HM-250RB)
- DC Power cable
- Microphone hanger
- Mounting bracket kit
- Instruction manual
SKU: NVN-101808
MPN: M510 11+CTM500 11
UPC:
Technical specifications
| Brand | Icom |
| Model | Icom M510 VHF Bundle w/CT-M500 Wireless Interface Box f/NMEA 2000 |
| SKU / MFR# | 101808 |
