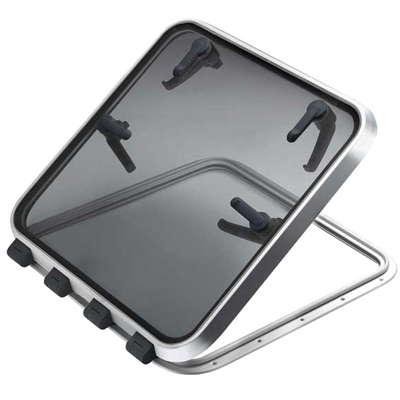

Magnus Deck Hatch, 19.9x14.8, Silver

Vetus Magnus Hatches Magnus hatches have a satin sheen anodized frame profile with a 10 mm thick "dark smoke" colored acrylic and are designed for ocean use, design category A, Area I. These hatches can be opened from the inside or outside through 180 degrees with almost no obstructions in the opening. They have a ventilation position and can be locked completely watertight. The cut-out sizes of this type match the market-based dimensions. Application on habitable multihulls as a means of escape in the inverted position is subject to European legislation.

Vetus MAG5038SL Attributes

Magnus heavy duty deck hatch, MFG# MAG5038SL, Overall: 22" x 16.25", Cutout: 19.9" x 14.8" (507 x 377 mm). Satin sheen anodized aluminum frame. "Dark smoke" coloured acrylic lens. Lid can be held open at any angle up to 90 degrees.

"VETUSMagnus heavy duty deck hatch, MFG# MAG5038SL, Overall: 22 x 16.25, Cutout: 19.9 x 14.8 (507 x 377 mm). Satin sheen anodized aluminum frame. Dark smoke coloured acrylic lens. Lid can be held open at any angle up to 90 degrees."
SKU: NVN-2000757
MPN: MAG5038SL
UPC: 8717372355325
