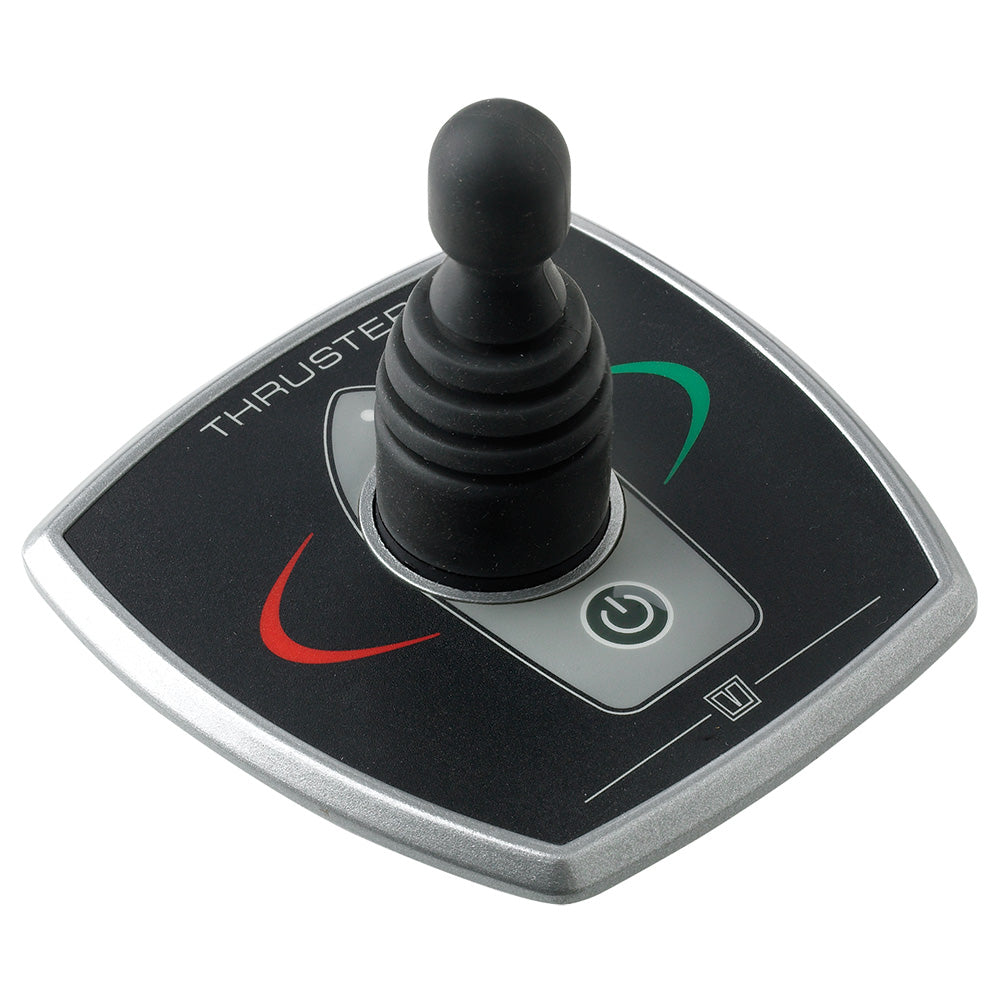

VETUS Thruster Panel Joystick

Thruster Panel Joystick

Thanks to the deluxe design and the high-quality coated aluminum front, this new bow or stern thruster panel will be an asset to your dashboard! The panel can be fitted into a 52-mm diameter hole, making installation quick and easy using a standard hole saw. It is backward compatible with other VETUS bow thruster panels. That is to say, the connector plug is the same, and the panels fit over the existing panel holes. The panel is provided as standard with a switched outlet (max. 3 A) for switching extra equipment and is waterproof to IP66.

Features:

• A built-in time delay, to prevent thruster damage caused by reversing the direction of rotation too quickly
• A warning signal with automatic shutdown in the event of continuous running for more than 2 minutes
• Protection against accidental operation (child lock)
• Automatic shut off after 30 minutes of inactivity

Specifications:

• Child Protection: Yes
• Voltage (V): 12/24
• Purpose: Thruster control
• Sort Control: Joystick
• Proportional Control: No
• V-CAN: No
• Build-In Depth: 90 mm
• Bezel: Aluminum
• Function: 0
• Width: 95 mm
• Cut-Out Diameter: 52 mm
• Height: 97 mm

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.


SKU: NVN-94346
MPN: BPAJ
UPC:
