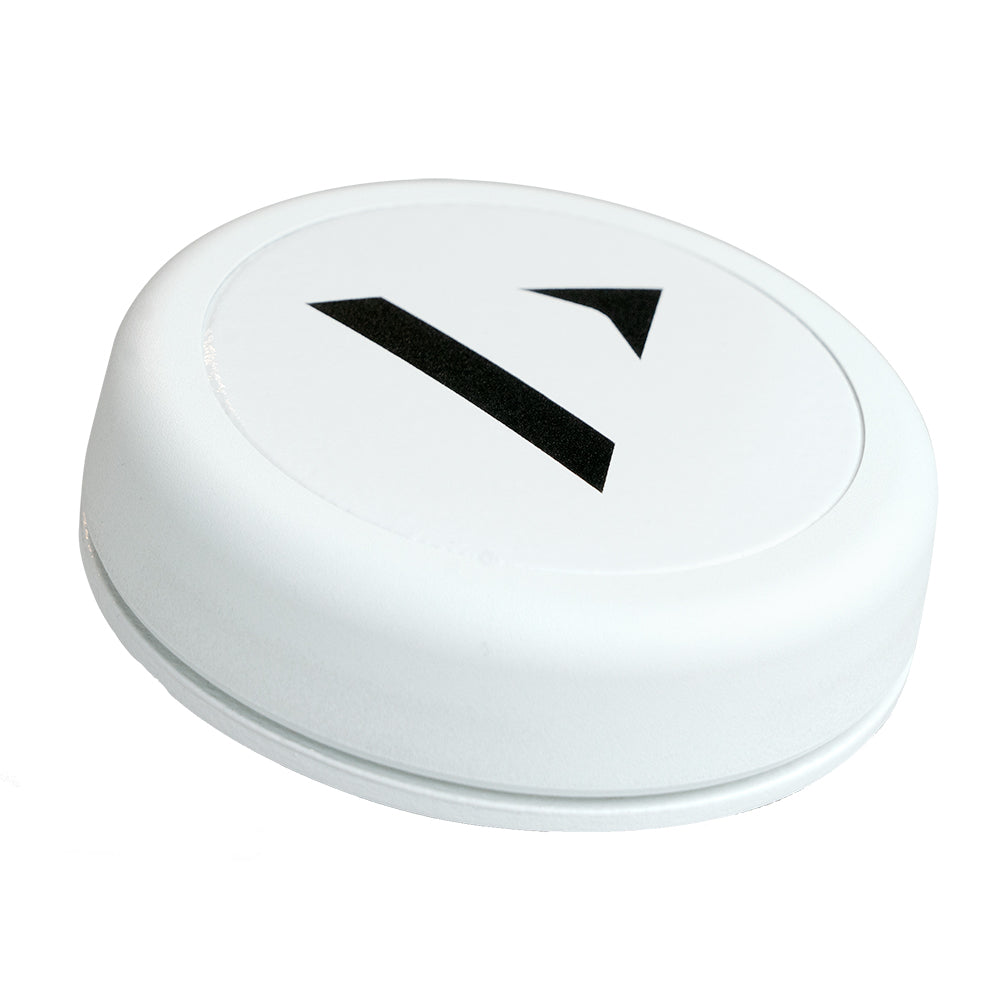

Veratron GO GPS Receiver

At a mere 2.4" in diameter, the Veratron GO is the smallest NMEA 2000 certified GNSS antenna on the market. Truly plug-and-play, the high-performance integrated GPS, GLONASS and Galileo receiver is available in two navigation models and a Bluetooth version for monitoring onboard networked systems.

Starting off the series is Veratron GO GPS, the satellite-only version. Alternately, Veratron GO Data offers a Bluetooth Low Energy (BLE) gateway that enables users to monitor engine, battery, navigation and other vessel performance data on Veratron's new NavDash mobile app. Offering the most versatility is Veratron GO Plus+, which delivers both GPS and Bluetooth functionality.

Built for continual outdoor exposure and the occasional hard knock, Veratron GO has a white ASA plastic, UV-resistant housing. The bottom is resin-filled and fully air-sealed. It has a minimal 0.6" cut-out size for the DeviceNet M12 connector. At a mere 2.2 oz., it adds minimal weight aloft.

In addition to Veratron GO and GO Plus+ receiving GPS, GLONASS and Galileo constellations, the devices are SBAS-WAAS, EGNOS, MSAS and GAGAN-compatible. They have 72 channel reception and a 10 Hz update rate. Combined with high-tracking sensitivity of -165 dBm, they offer fast cold-start position fixes and will hot-start within one second. Position accuracy is 2.5 miles with a clear sky view, while heading is rated at 0.3° and velocity at 0.16 fps.

Veratron GO Data and GO Plus+ operate with the new Bluetooth 5.0 gateway. They offer 50 data channels at 2.4 GHz with seven simultaneous PIN-protected connections. The pairing range is an impressive 525'.

The dedicated NavDash mobile app for Android and iOS provides wireless updates to Veratron GO Data and GO Plus+ devices. In turn, the app offers real-time visualization of networked vessel data and onboard system statuses. With it, users can configure the devices, and run service, diagnostics and data logging. They can also create custom applications as needed for specific vessel functions.

GO GPS Receiver

All your boat’s data close to your finger tips. Veratron GO is NMEA 2000® certified and features an integrated GPS/GLONASS/GALILEO receiver. Compact and easy to install, it does not require any additional protection against harsh weather conditions.  One of the smallest GPS receivers available.

The Veratron GO GPS Receiver works in conjunction with the Veratron Go Data and is included in the Go GPS Receiver Plus Kit.  Both sold separately.

Features:

• 72 channel receiver
• Fast cold-start position fix
• Compatible with OceanLink 52MM Bezels
• 10Hz update rate
• Up to 3 concurrent GNSS systems (GPS, GLONASS and GALILEO)
• SBAS – WAAS/EGNOS/MSAS/GAGAN supported
• NMEA 2000 standard PGNs transmitted for position, time, speed and heading
• Front-end SAW band-pass filter for enhanced immunity against electrical noise
• Interchangeable bezel option

Technical Specifications:

• Update Rate: Up to 10Hz  using concurrent GNSS, up to 18Hz using single GNSS
• Position Fix Time: 26 second  cold-start, 1 second hot start
• Tracking Sensitivity:  -165dBm
• Position Accuracy: 2.5m
• Velocity Accuracy: 0.05m/s
• Heading Accuracy: 0.3°
• Water Resistance: IPX7
• Dimensions (D x H): 60.7 mm x 18.9 mm
• Power Source: NMEA 2000 backbone (12V nominal voltage), no external power supply required
• Power Consumption: 100mA (2 LEN) operational, 150mA (3 LEN) during startup

In the Box:

• GO GPS Receiver
• Instructions Manual

*Sold as an Individual

The data of all ships near the fingertips of the GO GPS receiver. Veratron GO has passed NMEA 2000 certification and has an integrated GPS/GLONASS/GALILEO receiver. Compact and easy to use
SKU: NVN-87780
MPN: B00034901
UPC: 7640178729414
