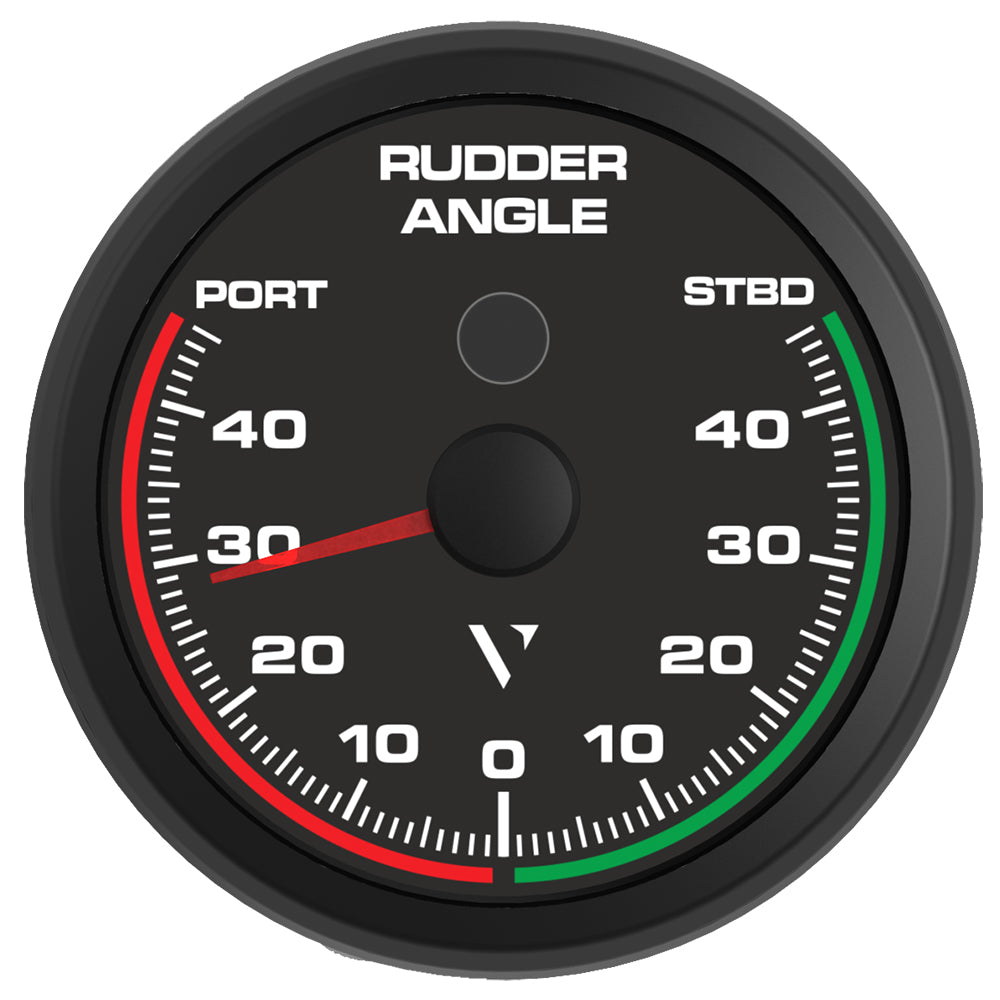

Veratron Professional 85MM (3-3/8") Rudder Angle Indicator f/NMEA 0183

Professional 85MM (3-3/8") Rudder Angle Indicator for NMEA 0183

Specially designed to fit into the standard 85mm panel cut, the Professional Rudder Angle Indicator is developed to suit commercial applications thanks to the embedded NMEA 0183 transceiver - which makes it operable with most of the professional autopilots out in the field - and the large 270° dial scale and Red illumination which makes it well readable and accurate in the indication.

It supports both 12V and 24V systems, and it is designed to resist the harshest environment thanks to its extended operating temperature from -30°C to +80°C and IPX7 protection class.

Able to support the analogue 3-180 Ohm and 0-5V rudder sensors, the Professional Rudder Angle Indicator also repeats the rudder angle data via NMEA 0183 to multiple gauges connected in series to it.

The embedded infrared (IR) pushbutton allows for a user-friendly fine tuning of the predefined calibration.

Features:

• Designed for NMEA 0183
• Easy programing and installation

Technical Specifications:

• Operating Voltage - 8 to 32 V
• Protection Class - IP6K7
• Illumination - Red LED
• Dial - Black w/graphics
• Pointer - Red Illuminated
• Lens - Plastic Double Lens (anti-reflective)
• Operating Temp. - -40°C to 115°C
• Connector - Molex MX150 - 12 pin

In the Box:

• Gauge
• Wire Harness
• Mounting Spinlock
• Safety Instructions

*Sold as an Individual

"NMEA 2000 Liquid Level Sensor - 200 to 600mm The NMEA 2000 Liquid Level Sensor overcomes a laundry list of issues that plague traditional fluid level monitoring solutions, including being certified for drinking water\u2014an industry first. Powered by an NMEA 2000 network, three models are available to accommodate a wide range of tank depths from 200 mm to 1500 mm. The capacitive sensor is easily selectable between fresh and waste water, and is micro-adjustable for tank size. Unlike reed technology that only reports tank level in graduated steps, the Veratron NMEA 2000 Liquid Level Sensor, thanks to capacity measuring technology, offers level linearity on the full range. This provides precise data to make informed decisions on refilling and pumping out or discharging, for up to 4 tanks. Completely plug-and-play, the Veratron sensor simply connects directly into the NMEA backbone with its integrated Micro-C M12 5-pin NMEA 2000 connector. This provides the nominal 12V power and the ability to view tank level from any networked display. UL94, CE, REACH and RoHS compliant, the NMEA 2000 Liquid Level Sensor is IPX9K rated as an exposed device."
SKU: NVN-87615
MPN: B00067401
UPC: 7640178729452
