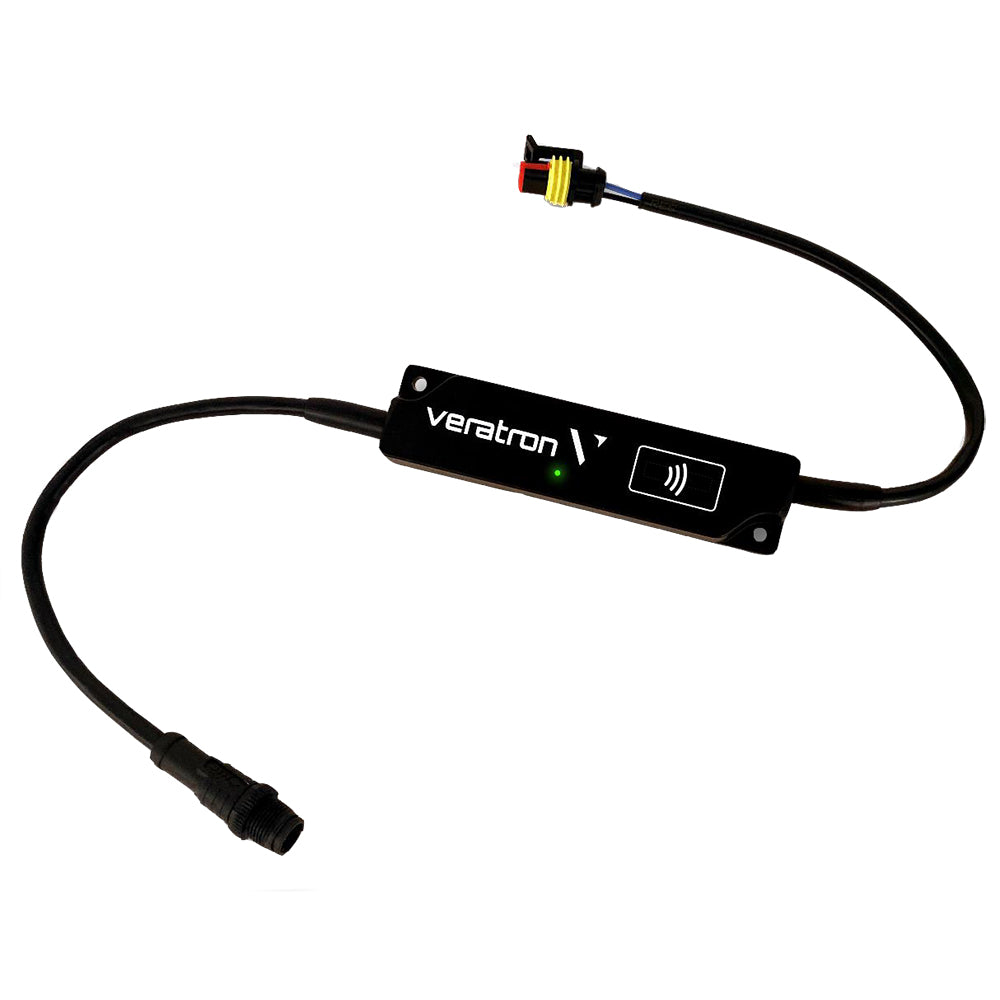

Veratron LinkUp Analog to NMEA 2000 Gateway

These single-sensor gateways are designed to upgrade your vessel sensors to NMEA 2000. Available in 5 different variants: 2-in-1 Oil temperature and pressure, resistive, pyrometer, IBS and J1939. Those can be easily configured through either the embedded wireless interface or NMEA 2000 by means of our Configuration Tool. The ISO 8846:1990 compliance completes the devices by allowing their installation into compartments.

• Input Signal: 0-400Ω

• Nominal Voltage: 12 V



LinkUp Analog to NMEA 2000 Gateway

The resistive-type LinkUp gateway provides an easy method to convert vessel and engine information to NMEA 2000.

Easily installed, the LinkUp Gateway replaces the original wiring, delivering power to both the LinkUp device and sensor from the NMEA 2000 backbone while still being complaint with the NMEA 2000 certification requirements.

Configuring the LinkUp Gateway is simple using a mobile device and the companion LinkUp Configuration App for Android or IOS.

Each device has a built-in passive NFC antenna, so the parameters of the sensors are wirelessly configured to type, instance and warning threshold on the mobile device which is then "tapped" against the LinkUp device for instant data download.

Features:

• User-friendly configuration through wireless interface and companion smartphone App
• Sensor Cable length - 25cm
• NMEA 2000 Cable length - 25 cm
• Tap to download parameters
• Mobile App for Android or IOS
• No power required to program
• No certification required
• Bi-directional communication, programming interface or data recovery

Supported Sensors:

• Fuel Level
• Oil/Boost Pressure
• Fresh/Waste Water Level
• Oil/Gear Oil/Coolant Temperature
• Trim Tabs
• Rudder Angle

Technical Specifications:

• Standard M12 NMEA 2000 plug
• LED Notification
• Operating Voltage - 6 - 16.5V
• Nominal Voltage - 12 V (from NMEA 2000 network)
• IPX7 Rated
• Sensor Plug - Superseal Female 2 Pin
• Counterpart Sensor Plug - - Superseal Male 2 Pin

*Sold as an Individual

LinkUp simulation to NMEA 2000 gateway The resistive LinkUp gateway provides an easy way to convert ship and engine information to NMEA 2000. LinkUp is easy to install.

• NMEA 2000 certified
• Wireless configuration through companion mobile App
• Status LED
• Plug-and-Play installation and configuration

SKU: NVN-87401
MPN: B00042201
UPC: 7640178729490
