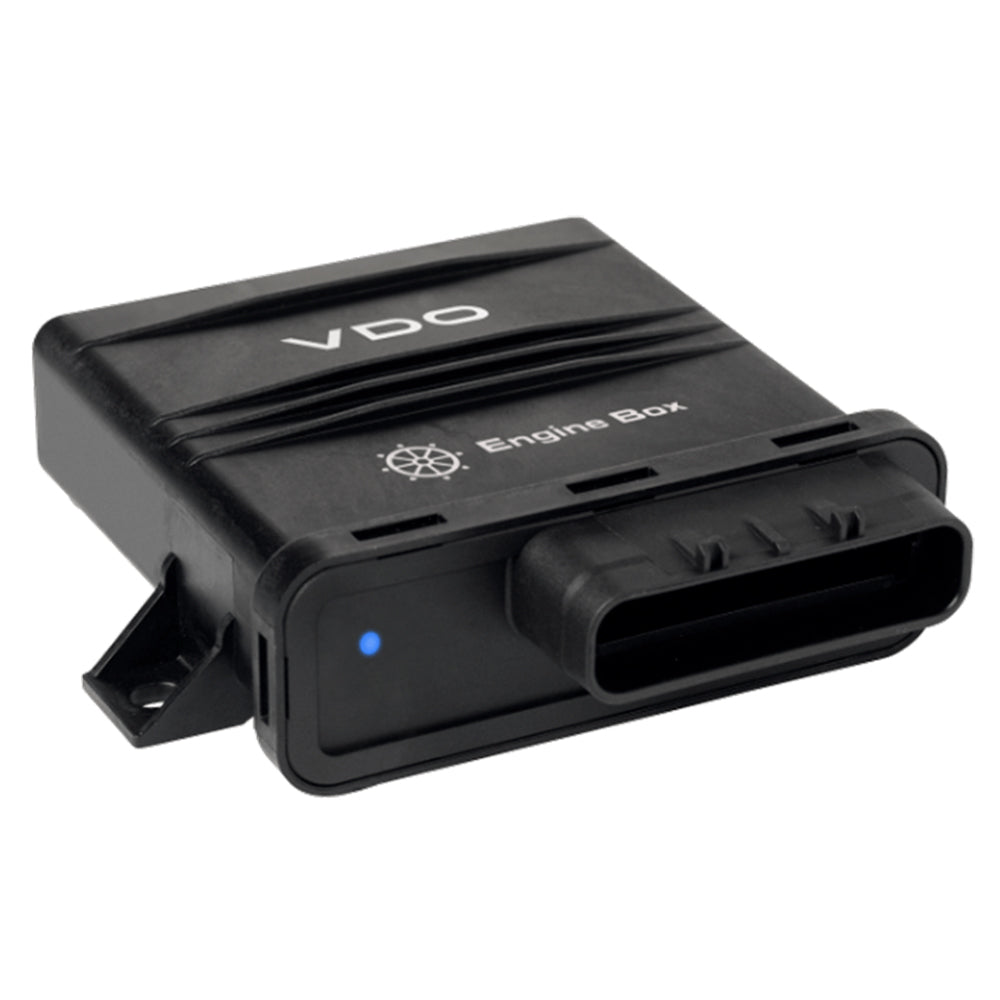

Veratron EngineBox - Single Engine

The EngineBox expands the possibilities of the NavBox for multi-engine applications or can be used as stand-alone when navigation information is not required. The EngineBox has a NMEA 2000 and a J1939 CAN port. The EngineBox can also be used on older, completely analog engines, thanks to the analog input ports provided and designed for: RPM data, 0 – 400 Ω sensors and 4 – 20 mA sensors. EngineBox is available in 2 versions: Single Engine and Dual Engine. The Dual Engine version is designed with double frequency and resistive inputs. This allows customers simplified installation wiring, reduced commissioning time and the required installation space. The EngineBox has to be set up using an intuitive PC configuration Tool making it easy for programming the inputs (delivered free of charge). The EngineBox is designed to be installed also in hazardous areas (for additional information please check the technical characteristics described in the installation manual).

EngineBox - Single Engine

The EngineBox expands the possibilities of the NavBox for multi-engine applications or can be used as stand-alone when navigation information is not required. The EngineBox has a NMEA 2000® and a J1939 CAN port. The EngineBox can also be used on older, completely analog engines, thanks to the analog input ports provided and designed for RPM data, resistive sensors and capacitive sensors.

The EngineBox has to be set up using an intuitive PC configuration tool making it easy for programming the inputs (delivered free of charge). Thanks to the ISO 8846:1990 compliance, the EngineBox is also designed to be installed in engine compartments.

Features:

• Analog to NMEA 2000® gateway
• J1939 to NMEA 2000® gateway
• 2 Models for single engine and dual engine configurations
• Compact design
• Status LED
• Operating temperature range -40°C/+85°C

Technical Specifications:

• 1x J1939 (2x J1939 Dual Engine)
• 1x M12 5 pins NMEA 2000®
• 1x Input 0–4 kHz for RPM (2 inputs with Dual Engine Model)
• 4x Inputs 0–400 Ohm (up to 8 inputs with Dual Engine Model)
• 2x Inputs 4–20 mA
• 1x Input 0–5 V (2 inputs with Dual Engine Model)

In the Box:

• Engine Cable
• Cable Harness
• Safety Instructions

*Sold as an Individual

EngineBox expands the possibilities of Nav-Box for multi-engine applications, or can be used independently when navigation information is not needed. Engine box...
SKU: NVN-87354
MPN: A2C1824820001
UPC: 7640178724426
