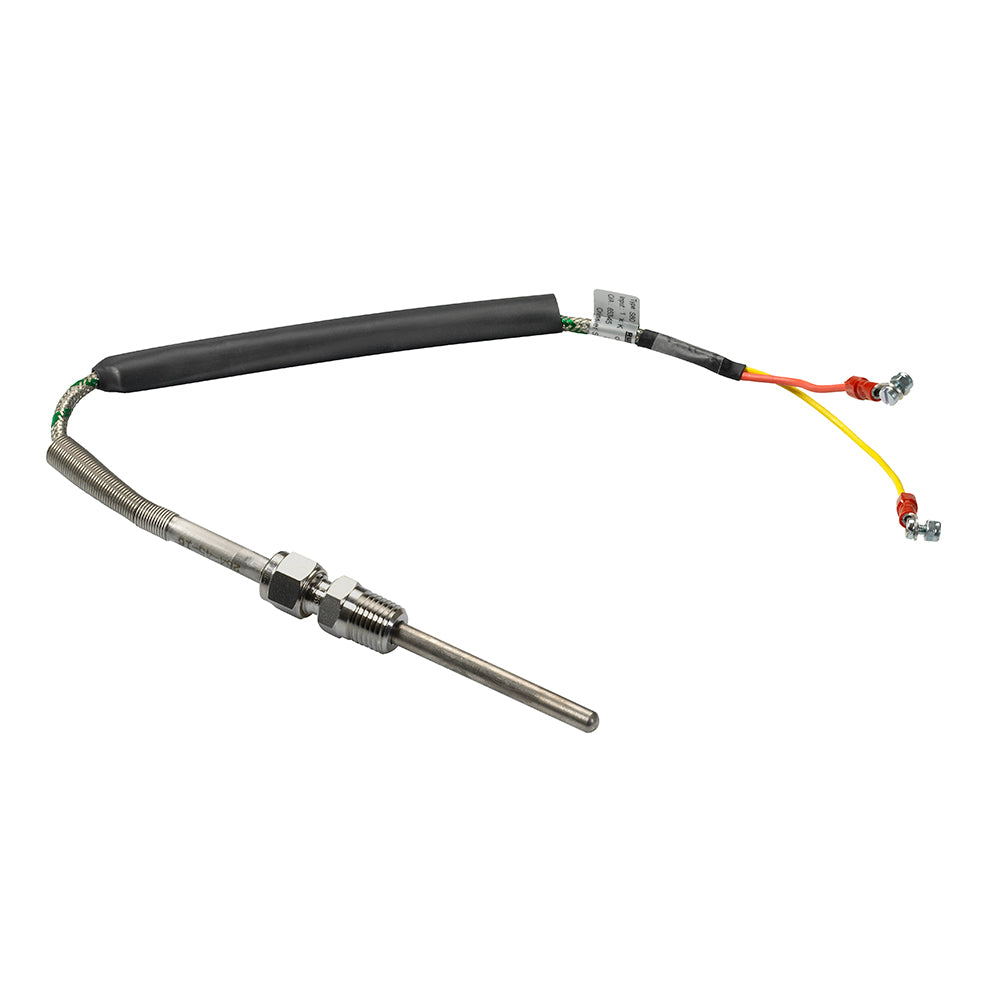

Veratron Pyrometer Sensor - 100-900°C/250-1650°F
SKU: 83063 · UPC: 4103590677013 · MPN: N03-320-264
★★★★★
4.7 · 0 reviews
Authorized dealer10% off
$298.53
$331.70Save $33.17
or 4 payments of $74.63 with Affirm
Low stock — 1 left — Ships today
Pickup available · NVN Marine (FL)
SAME-DAY SHIPPING · 14:23 EST
Order in time, ships today
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$298.53
02 · Overview
Veratron Pyrometer Sensor - 100-900°C/250-1650°F — Product description
Pyrometer Sensor - 100-900°C/250-1650°F
Pyrometer sensor used in conjunction with LinkUp Gateway Module.
Features:
- Plug-and-Play installation and configuration
- NMEA 2000® certified
Technical Specifications:
- Temperature medium - Exhaust gas - Coolant - Water - Air - Engine oil - Transmission oil - Fuel
- Input Signal - LIN bus
- Operating Voltage - 6 - 24 VDC
- Pyrometer Sensor
- Thermocoupler Element
- Measurement Range - 100-900°C/250-1650°F
- Communication - Analog
- Signal Output - 0 - 37 MV TC
- Sensor Connector - Ring Tongue
- Thread - R 1/4" Male
- Warning Contact - None
- Connector Type - Kabeloog
- Sender element length + thread (L) - Adjustable maximal 60 mm
- Sensor diameter - 6 mm
- Torque - 20 Nm
*Sold as an Individual
High temperature sensor thermocouple element -100-900°C / 250-1650°F Characteristics: High temperature sensor thermocouple element 100-900°C / 250-1650°F-cis2: mm5rmptn-
SKU: NVN-83063
MPN: N03-320-264
UPC: 4103590677013
