Veratron Coolant Temperature Sensor - 40°C to 120°C - 1/8 - 27NPTF

Coolant Temperature Sensor - 40°C to 120°C - 1/8 - 27NPTF

Features:

• Measurement Range - 40°C - 120°C
• Category - Temperature Sensors
• Signal Analogue - 287.4 - 22.7 Ohm
• Operating Voltage - 6 - 24 V
• Temperature medium - Coolant - Water - Air - Engine oil - Transmission oil - Fuel
• Communication - Analog
• Signal Output - 287.4 - 22.7 Ohm
• Sensor Signal - Common Ground

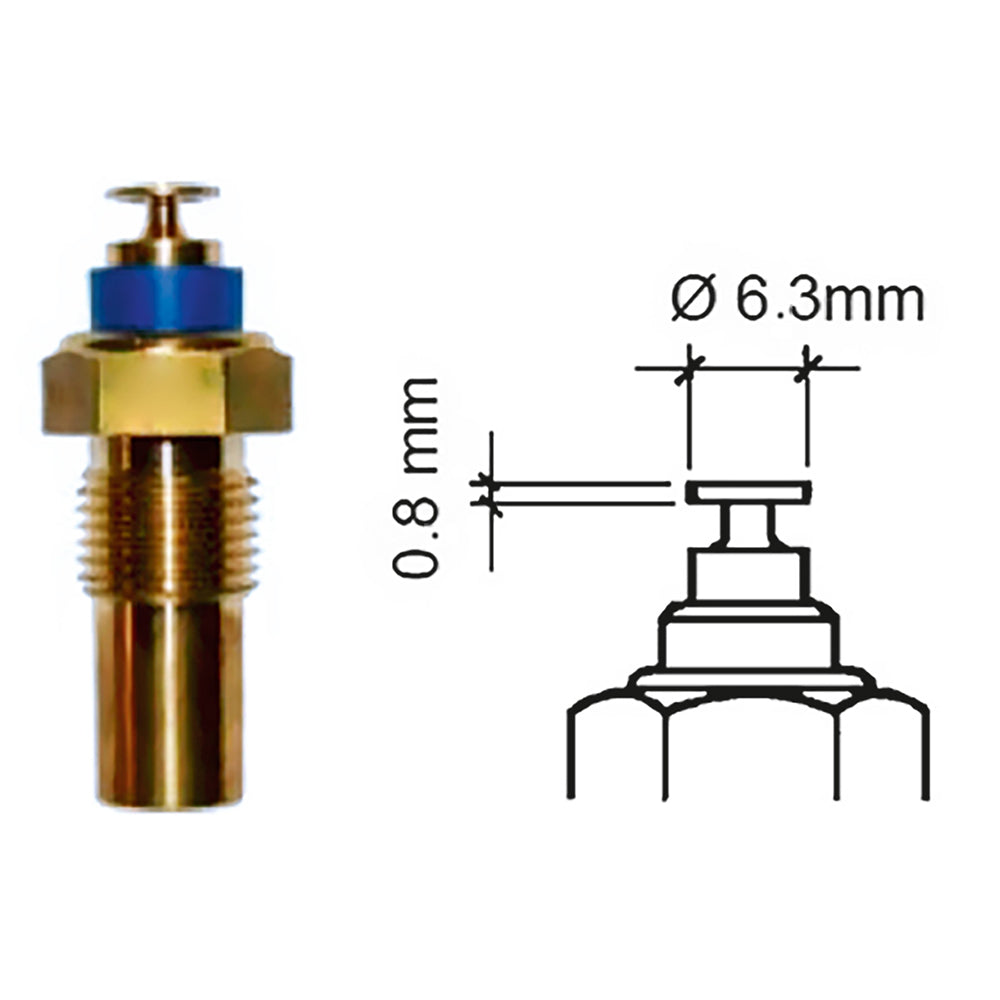

• Sensor Connector - AMP Male T-Model 6.3 X 0.8 mm
• Thread1/8" - 27 NPTF Male
• Warning Contact - None
• Connector Type - AMP Blade T-Model 6.3 X 0.8 mm

*Sold as an Individual

VDO pressure gauge 323026: temperature transmitter 250 degrees 5/8" -18 NF-3 threaded spade terminal-if the correct transmitter unit is not used on the pressure gauge, it will lead to inaccuracy and unreliability.
SKU: NVN-83020
MPN: 323-801-005-001D
