Veratron Coolant Temperature Sensor - 40°C to120°C - 5/8 -18UNF-3A Thread
SKU: 83000 · MPN: 323-801-001-008N
★★★★★
4.7 · 0 reviews
Authorized dealer10% off
$75.59
$83.99Save $8.40
or 4 payments of $18.89 with Affirm
Out of stock
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$75.59
02 · Overview
Veratron Coolant Temperature Sensor - 40°C to120°C - 5/8 -18UNF-3A Thread — Product description

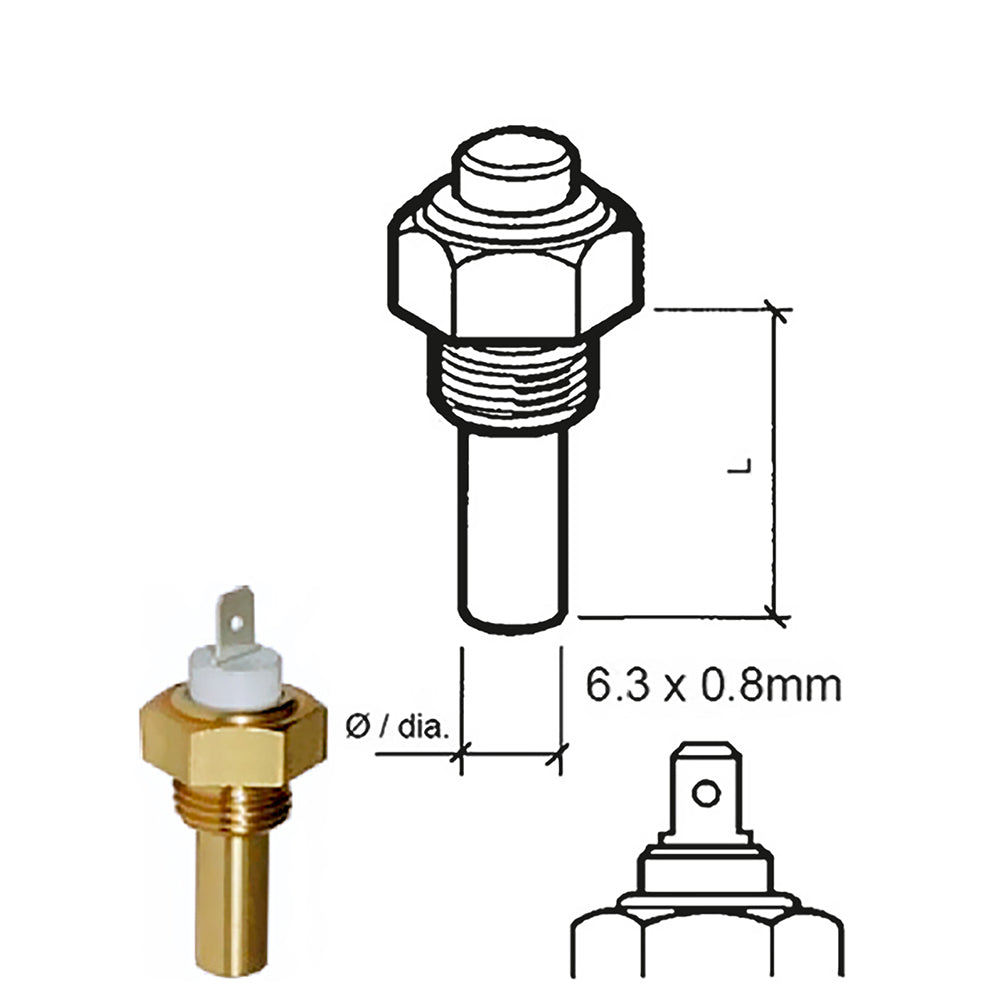

Coolant Temperature Sensor - 40°C to120°C - 5/8 -18UNF-3A Thread
Features:
- Measurement Range - 40°C - 120°C
- Category - Temperature Sensors
- Signal Analogue - 287.4 - 22.7 Ohm
- Operating Voltage - 6 - 24 V
- Temperature medium - Coolant - Water - Air - Engine oil - Transmission oil - Fuel
- Communication - Analog
- Signal Output - 287.4 - 22.7 Ohm
- Sensor Signal - Common Ground
- Sensor Connector - AMP Male 6.3 X 0.8 mm
- Thread - 5/8" - 18 UNF-3A Male
- Warning Contact - None
- Connector Type - AMP Blade 6.3 X 0.8 mm
*Sold as an Individual
Coolant temperature sensor -40°C to 120°C-5/8 -18UNF-3A thread features: measuring range -40°C-120°C category-temperature sensor signal simulation -287.4-22.7 ohm working voltage-6-24 VT temperature...
SKU: NVN-83000
MPN: 323-801-001-008N
UPC:
03 · The numbers
Technical specifications
| Brand | Veratron |
| Model | Veratron Coolant Temperature Sensor - 40°C to120°C - 5/8 -18UNF-3A Thread |
| SKU / MFR# | 83000 |
Set product metafields under specs.* to populate this table.
