Veratron Deep-Pipe Level Sender - 550mm - 240 to 33 OHM

Deep-Pipe Level Sender - 550mm - 240 to 33 OHM

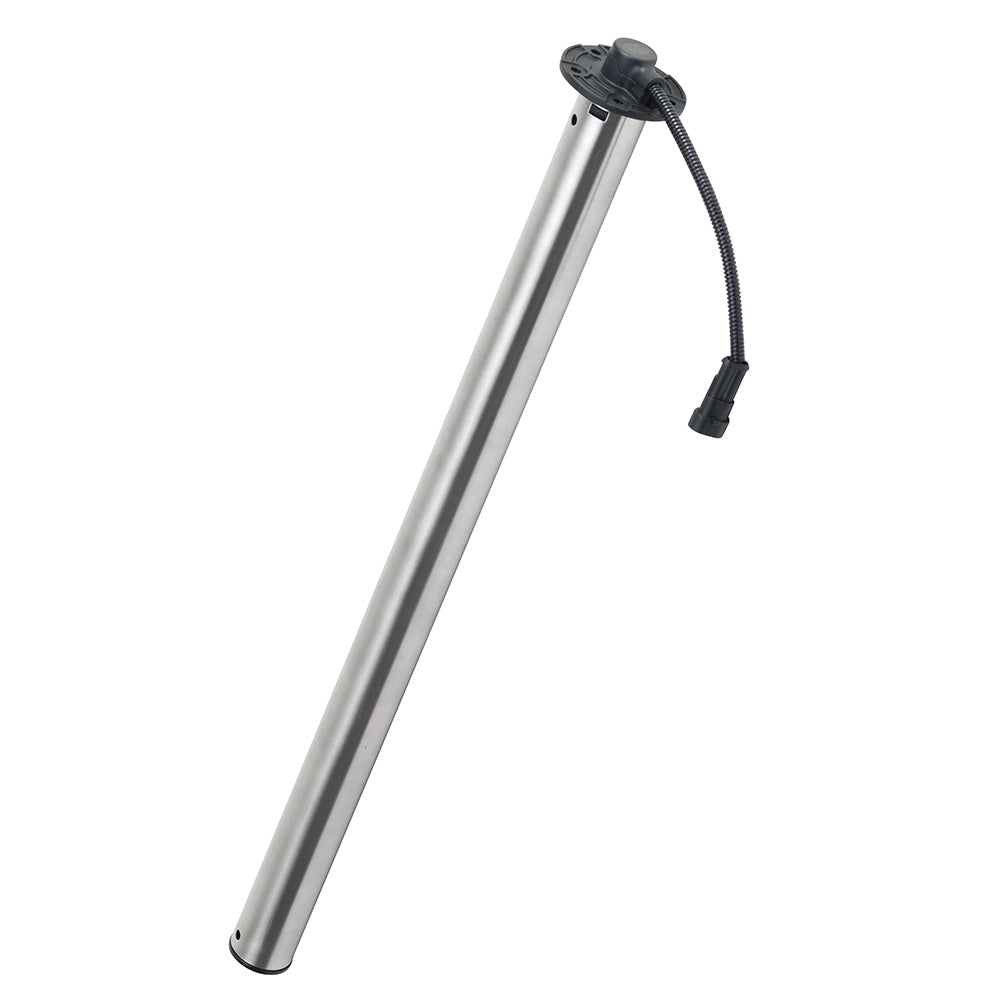

Deep-Pipe Level Sensor is ideal for usage in fuel tanks. Its 38 mm diameter vertical tube contains a float inside, which measures a level of the liquid. Small holes at the top and bottom of the tube act as a baffle to fuel sloshing around in the fuel tank, so the float position remains stable at any sea state.

Sensors are made in various lengths starting at 150 mm increasing to 1200 mm – please ensure that the length chosen is at least 4 mm from the base of the fuel tank once fitted.

Features:

• Tubular Sensor Stainless Steel
• Suitable for Fuel (Oi -Petroleum-Diesel-Gasoline) and Water
• Length: 550 mm

Technical Specifications:

• TE Superseal Connector 2-Pole IP67
• Operating Temp.: -25°C to 65°C or -13°F to 149°F
• Operating Voltage: 6 to 24 VDC
• Compensation chamber
• Flange: 5-Hole SAE Flange 54mm PA66 GF30
• Wiring harness with length of 200 mm
• Signal ranges: 240 to 33 OHM
• IP67 protection rating
• Communication: Analog

In the Box:

• Deep-Pipe Level Sensor
• Installation Kit
• Safety Instructions
• Installation Instructions

*Sold as an Individual

"OceanLink 7\" NMEA 2000 Certified TFT Gateway - Black OceanLink 7\" NMEA 2000 Certified TFT Gateway converts both analog and J1939 data into NMEA 2000 data. The display features a daylight readable 24bit optically bonded transmissive screen, 40 different customizable screens and support for up to 20 individual satellite gauges. OceanLink Technical Information: 1x NMEA 2000 connector 1x J1939 and 4x analogue input 6x 0-400 ohm analog inputs 2x frequency inputs 3x 0-5V inputs 2x 4-20mA inputs 2x RGB video inputs Operating temperature range -25 \u00b0C \/ +70 \u00b0C Optical bonded mineral glass lens Front & rear side protection rating IPX9 Touch screen swipe technology ."
SKU: NVN-82760
MPN: A2C1747260001
